230 Chapter 7 Working with Images

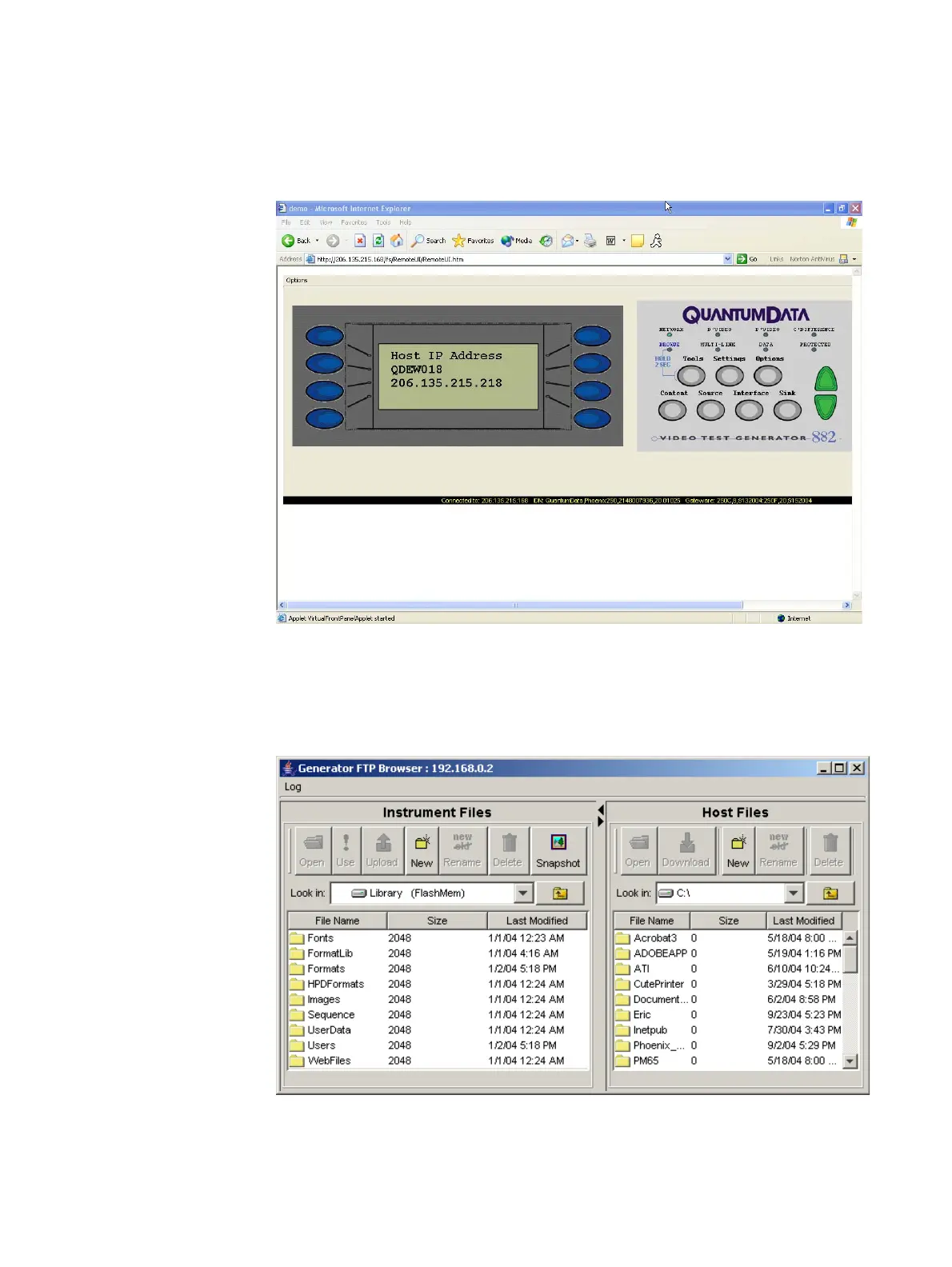

To create an image catalog using the Generator FTP Browser:
1. Access the generator’s Virtual Front Panel. See “Working with the Virtual Front Panel”
on page 20.
2. From the Options menu (upper left corner of the Virtual Front Panel), choose the FTP
Browser menu item. The Generator FTP Browser appears.
3. In the Instrument Files area, click the down arrow by the Look in box and select tffs0.
This is the generator’s flash memory.
