882 Video Test Instrument User Guide (Rev A.35) 231

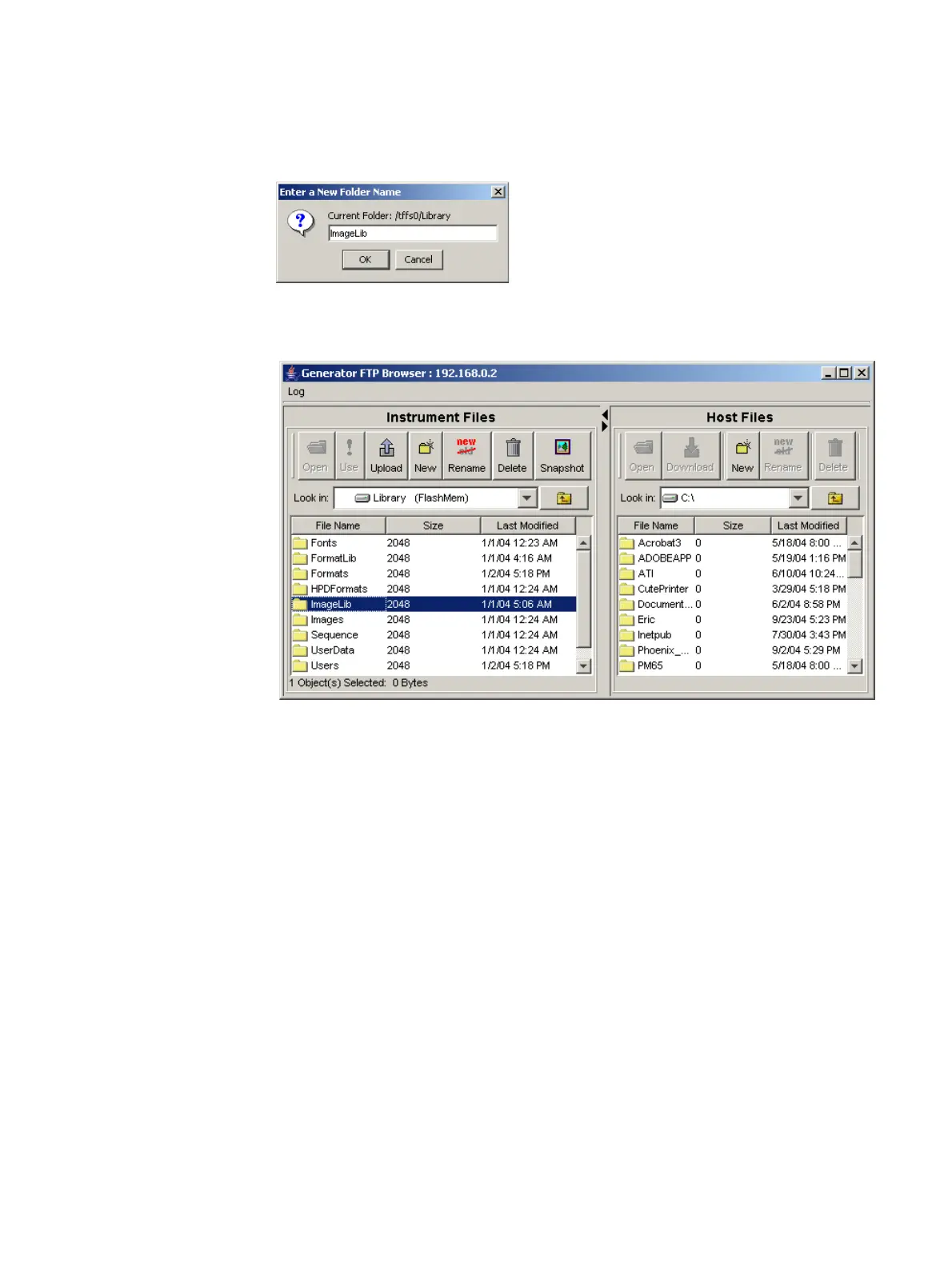

4. Create a folder named ImageLib as follows:
a. Click the New button. The Enter a New Folder Name dialog box appears.
b. Enter ImageLib in the box, and then click OK. The ImageLib folder appears in the
list of files and folders.
dir
To create an image catalog using the command line interface:
1. Determine the images you want to include in your catalog. For example, you may want
to create a catalog that includes the following images for testing CRT televisions:
SMPTE133 SMPTEBar
TVBar100 PulseBar
Regulate Geom_1
Or, you may want to create a catalog that includes custom images created using the
SDK or the command line.
Ramp Flat
barpulse myimage
SMPTE133 Grays32
2. Establish a session with the generator using either HyperTerminal over a serial
connection or Telnet over an Ethernet LAN see “Establishing a terminal session with
the 882” on page 30 or “Establishing a Telnet session with the 882” on page 33.
3. Create the catalog by entering the commands shown below. This example creates a
catalog called TVimages.
xml .
