42 Chapter 11 Testing EDID for HDMI
To create a new EDID:

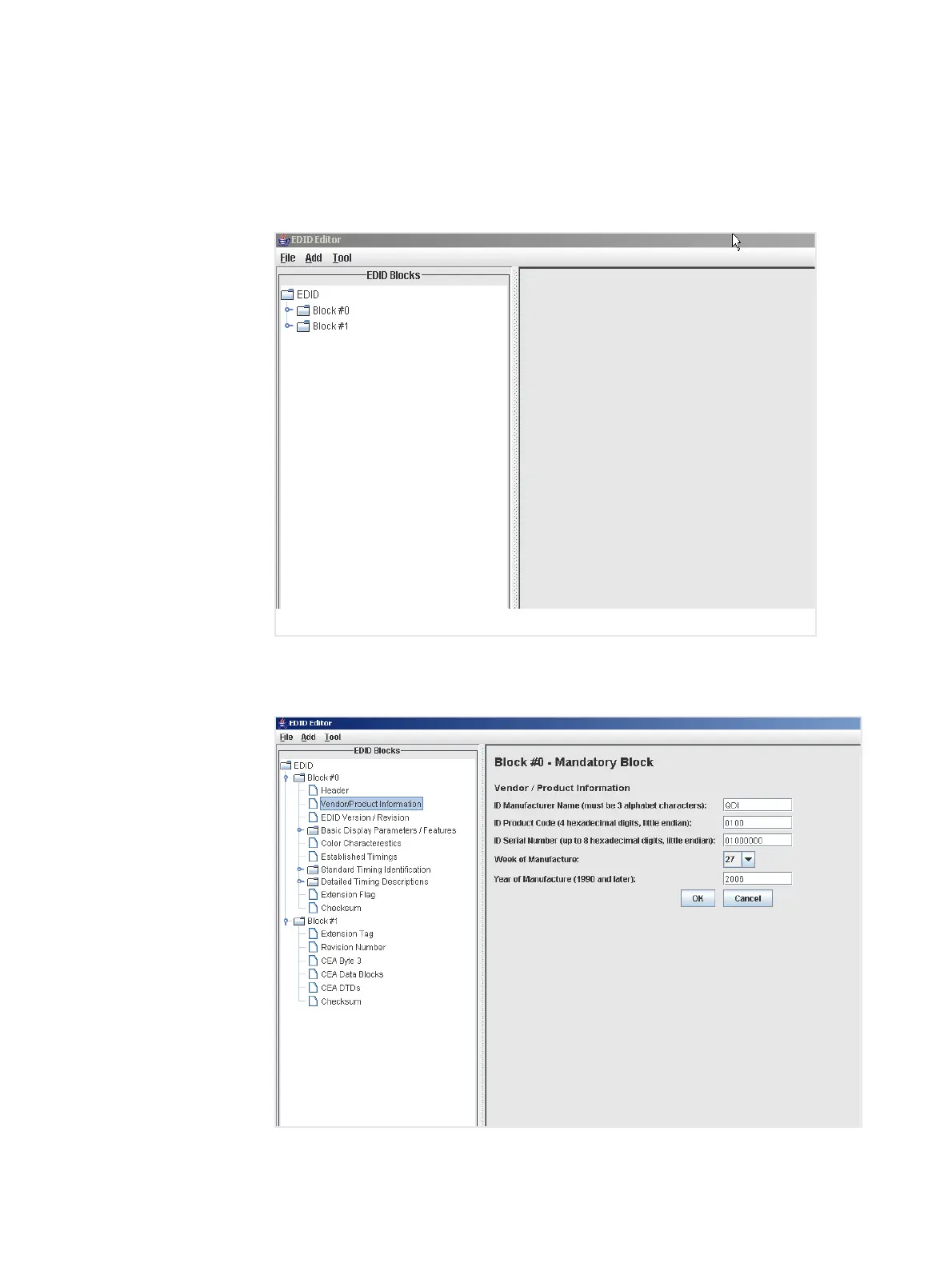

1. Open the EDID Editor and load the EDID using the procedures “Loading EDIDs with
the EDID Editor” on page 34.
Upon power up the HDMI Rx ports are configured with the Quantum Data 2 block EDID.
2. Expand the EDID Block in the navigation view.
