44 Chapter 11 Testing EDID for HDMI

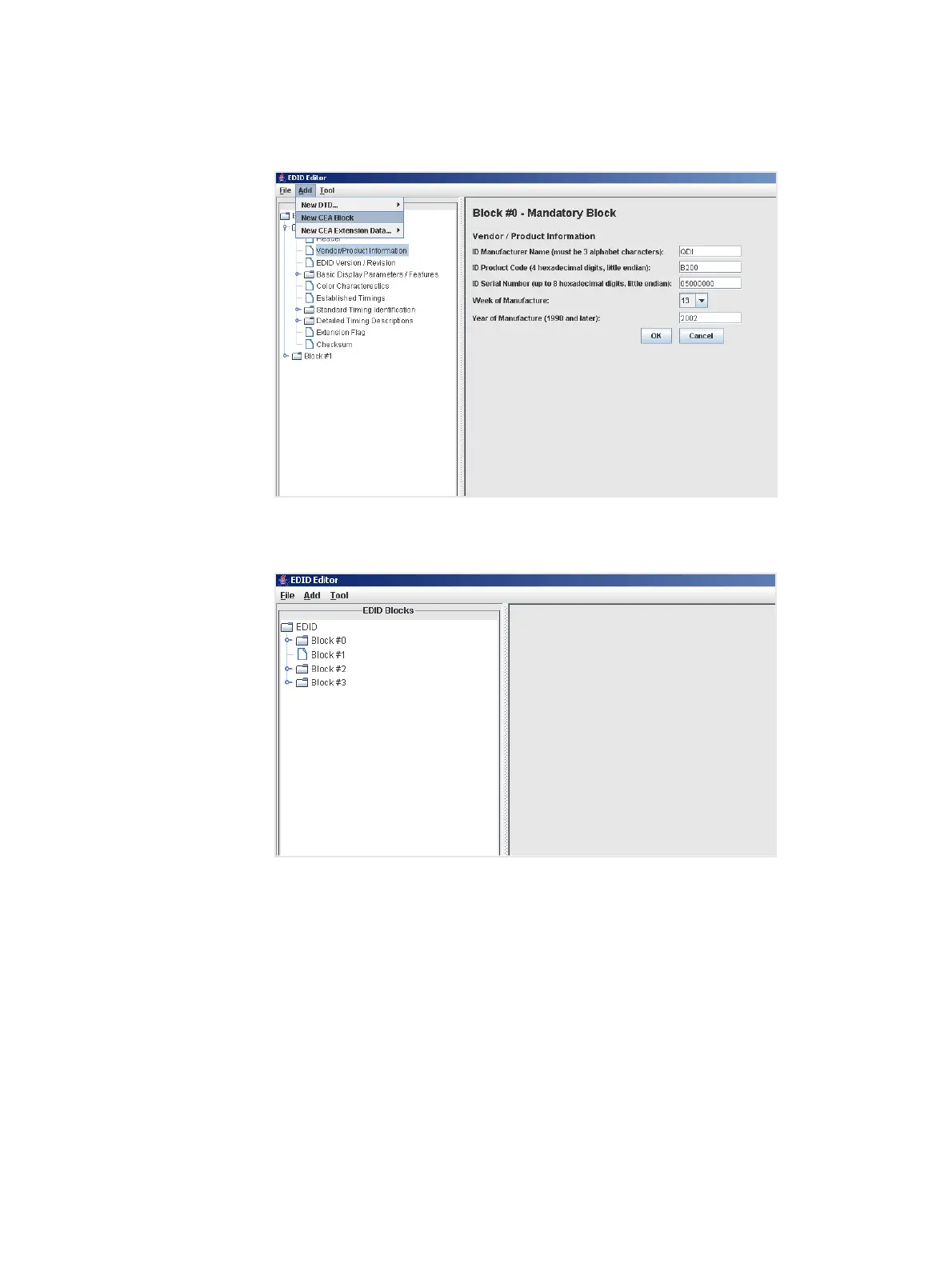

4. Add the CEA extension blocks by selecting New CEA Block from the Add pull down
menu as shown below.
When you add a CEA block, both Block #2 and Block #3 are added. In addition, the
Extension Flag field in Block #0 is updated with the value of 3.
