• While the MulSector antenna has a beamwidth of 90o for each wing, approved standard external
antennas have can have narrower or wider beamwidth values. See Cered Antennas for a list of
approved antennas and their characteriscs.
• Sector Self‐Backhaul: This feature uses one of the subscriber units as a backhaul link. That subscriber
unit uses the air interface to communicate with an external antenna connected to the base staon as
shown in Figure 78 or Figure 79. Note that this feature must also be congured properly. See the
RADWIN 5000 Conguraon Guide.

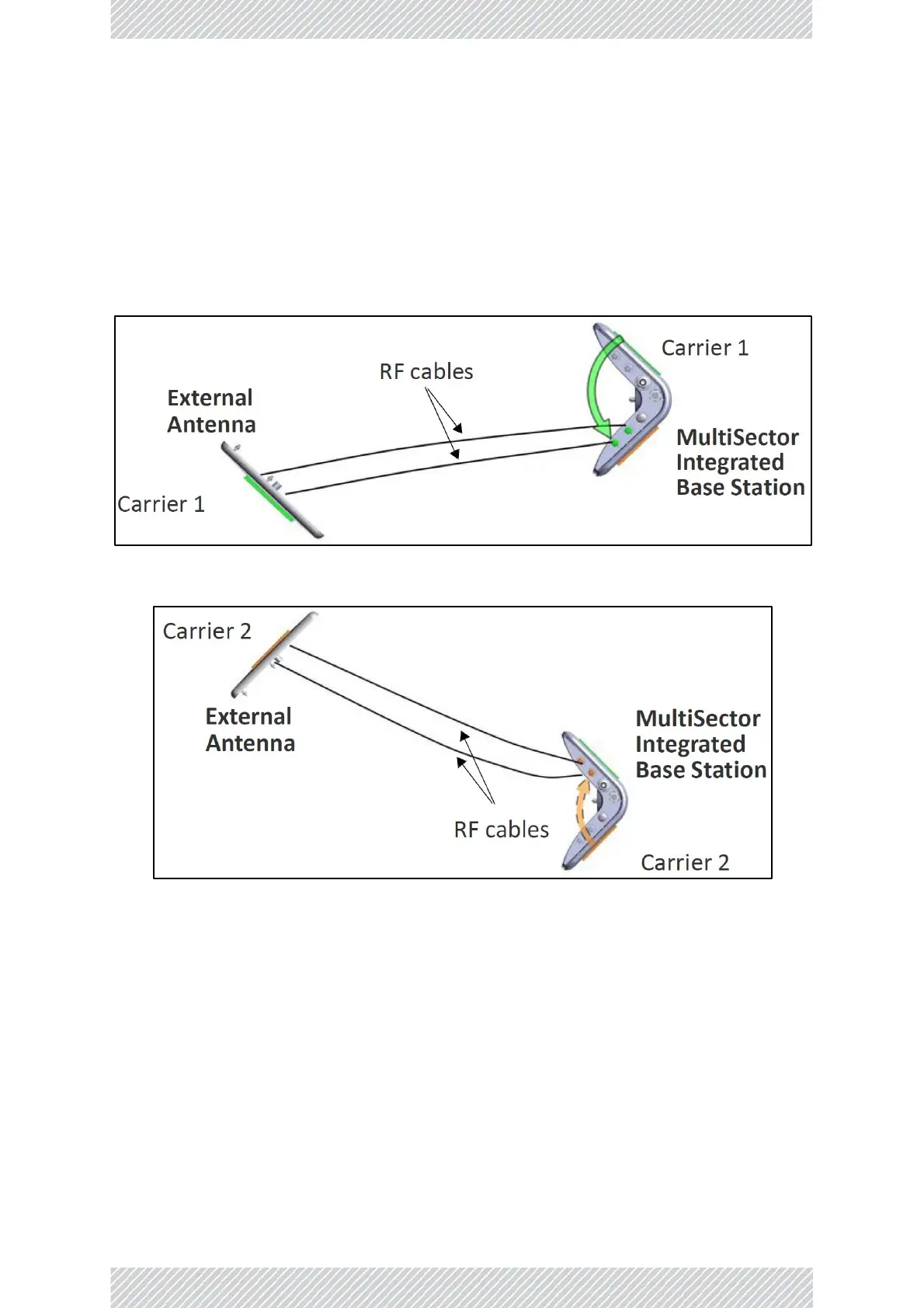

Figure 78: MulSector Base Staon Integrated connected to external antenna (Carrier 1 only)
Figure 79: MulSector Base Staon Integrated connected to external antenna (Carrier 2 only)
