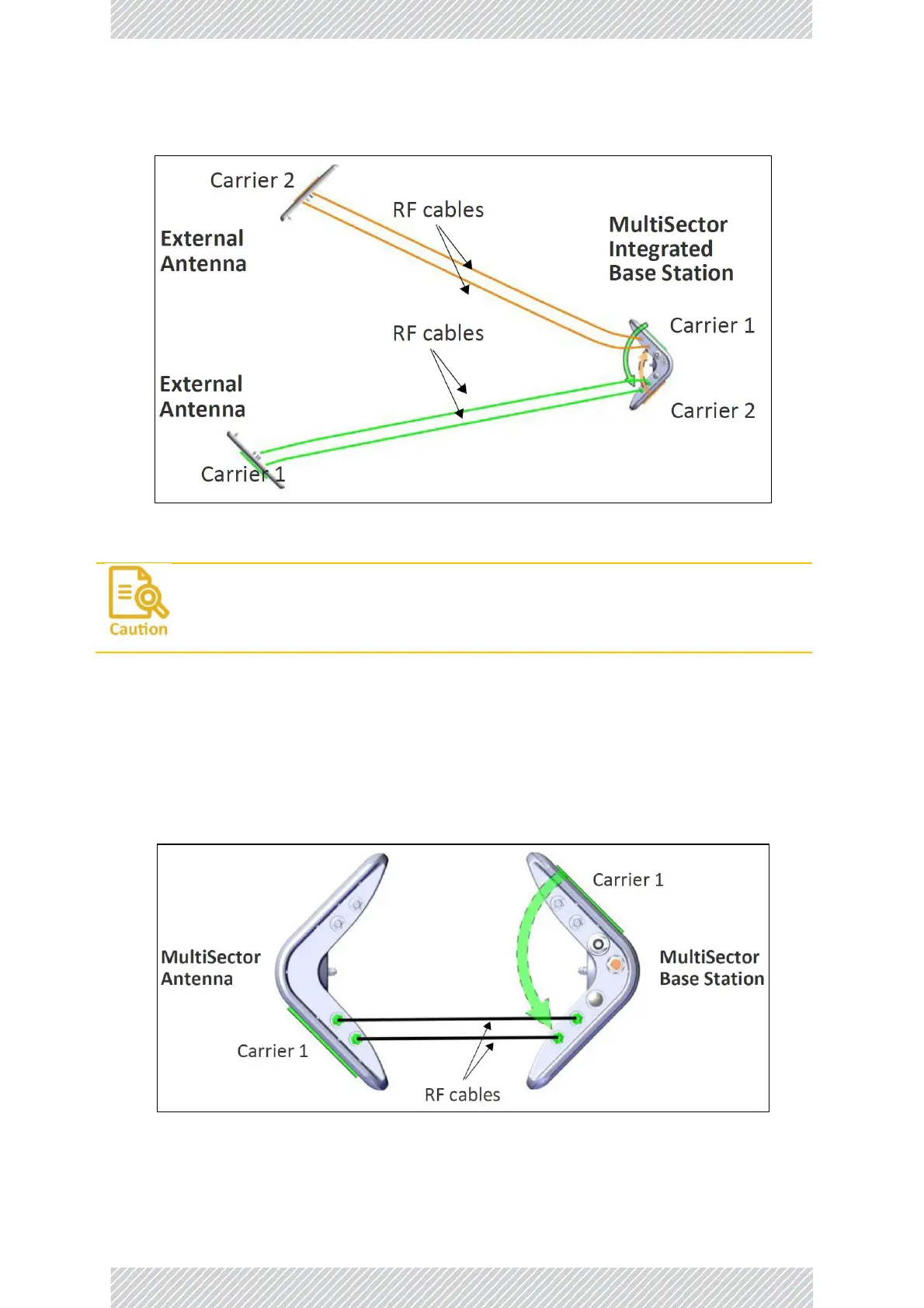

Figure 80: MulSector Base Staon Integrated connected to external antennas (both Carriers)
Per FCC and ETSI regulaons, no overlap between antennas is allowed, with the
excepon of Self Backhaul.

Connect the MulSector Base Staon to a MulSector antenna as shown in Figure 81 to Figure 83 below.
• The connecng ports are located on the wing of the base staon opposite the wing that has the carrier.
This helps to reduce complexity in RF cable roung.
• The base staon and antenna can be mounted anywhere it is convenient according to your radio plan.
They need not be mounted back‐to‐back.
Figure 81: MulSector Base Staon Integrated connected to MulSector antenna (Carrier 1 only)
