Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 4‐33
Ethernet ManagingtheSector

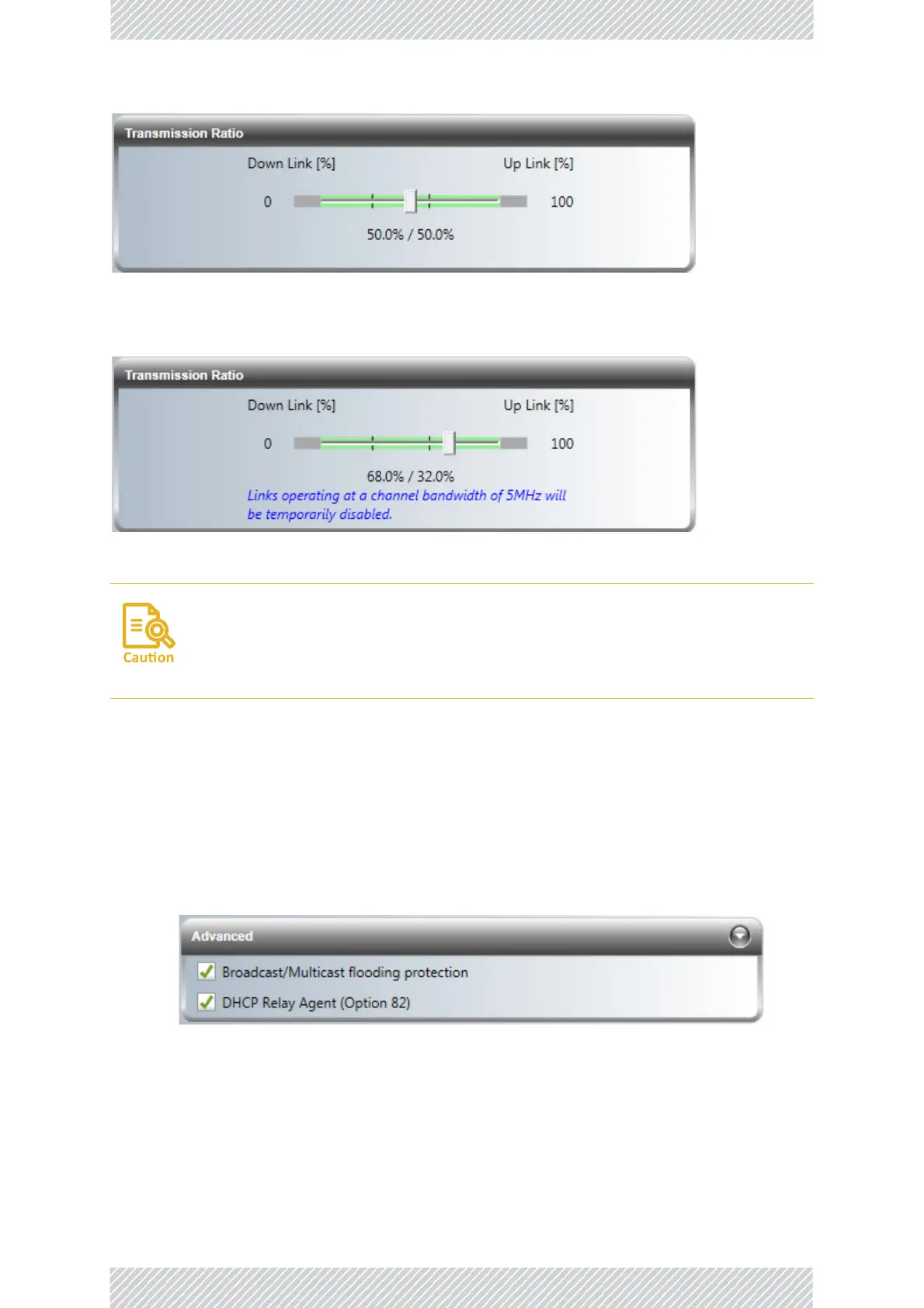

Figure4‐18:HBSCollocatedmaster
Movingtheslidertotherightyieldsthefollowing:
Theeff ectiveavailablerangeforAsymmetricallocationisdeterminedbychannelbandwidth
asshownaswellaslinkdistance.Inthiscontext,“link”isanycollocatedRADWINHBS,not
necessarilyaRADWIN5000HBS.
QoSConfiguration
TousetheEthernetQoSfeature,seeChapter10(includesVoIPconfiguration).
Advanced
Broadcast/MulticastFloodingProtection:Broadcast/MulticastFloodingProtection
providesameasureofprotectionbylimitingmulticastandbroadcastpacketstono
morethan12.5%ofavailablecapacity.
Youmaywishtoun‐checkthisitemifyourapplicationisbasedonmulticast/
broadcastpackets‐forexample,videosurveillanceusingmulticastdownlink,or
videoconferencingusingmulticastuplink.
Theallowablerangeisfrom50/50%to75/25%.Settingvaluesbeyondthisrange
willcauseunpredictableresults.
Youmustensurethattherangeremainswithinallowablevalues.Thereisnofail‐
safe.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
