Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 7‐12
HSU MonitoringandDiagnostics
FromtheHBS

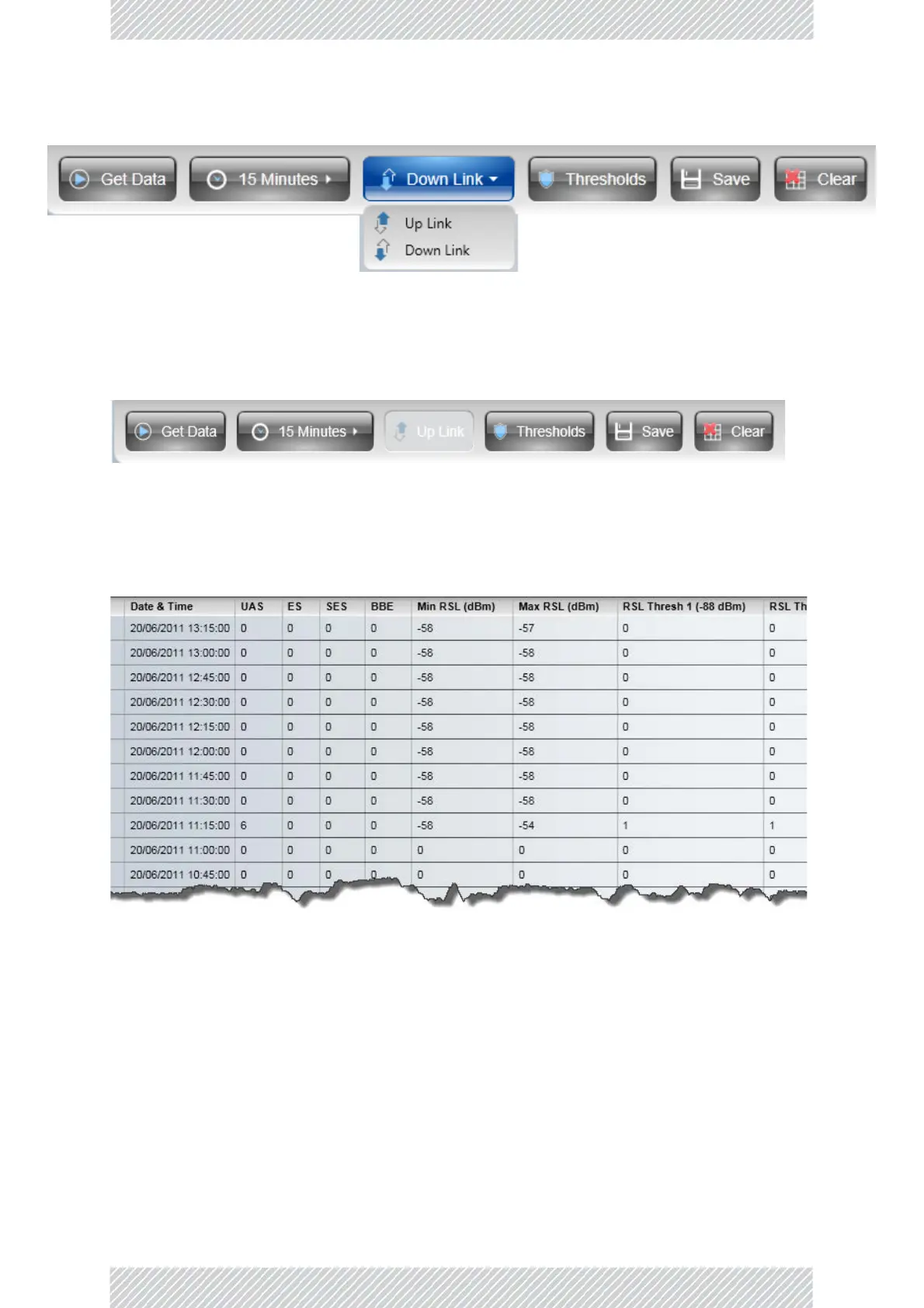

Youmaychosebetweenanuplinkordownlinkreport.Theremainingbuttonshavethesame
functionalityastheydoforthe HBS.(Thereisnosignificanceinmonitoringperiodbutton
label,Daily.TheoptionsareasfortheHBS.)
DirectorOvertheAir
Here,onlyadownlinkreportisavailable.Otherwisethebuttonshavethesamefunctionality
astheydofortheHBS.
Hereisanextractfroma15minutereport.Wehavebrokenitintothreepiecessothatitis
legible:
Figure7‐10:HSU‐PerformanceMonitoring‐Validandinvaliddata(1of3)
