Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 12‐3
SpectrumViewMainWindow:HBS SpectrumView

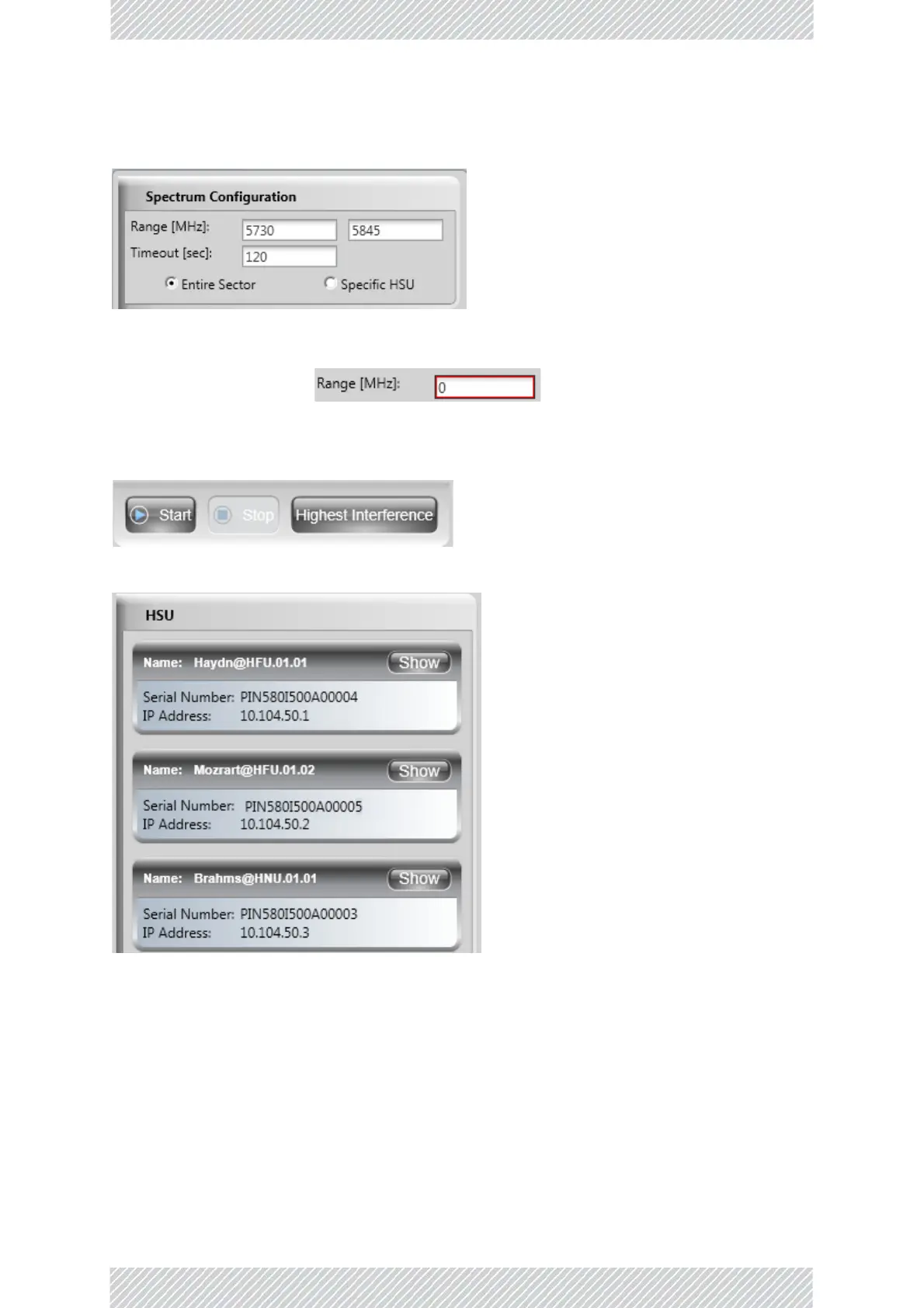

UsethetopleftpaneltosettheSpectrumViewconfigurationparametersandchoosean
analysistype‐EntireSectororSpecificHSU.
Thesettingsare“sticky”fortheHBSandwillbereused.Theanalysisrangeislimitedfrom
4900to6050MHzwithamaximumdifferenceof500MHz.Erroneousentrieswillbeshown
witharedborderlikethis:
Thetimeoutisthemaximumanalysistimepersite.Usethebottombuttonbartostartan
analysis,tostoparunninganalysisorrunaHighestInterferenceprofile forthesector:

IfyouchoosetoruntheanalysisforspecificHSUs,ThelefthandHSUpanelwillchange:
ChecktherequiredHSUsandthenStart.
Sincealargesectorwillclutteruptherighthanddisplayarea,youmayselectivelyShow,
minimizeorremoveasectormember.Anotherwayoffreeingupmorespaceforanalysis
displaysistohidethelefthandpanelusingthecircledarrow:

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
