RADWIN5000ConfigurationGuide Release4.9.17 12‐4

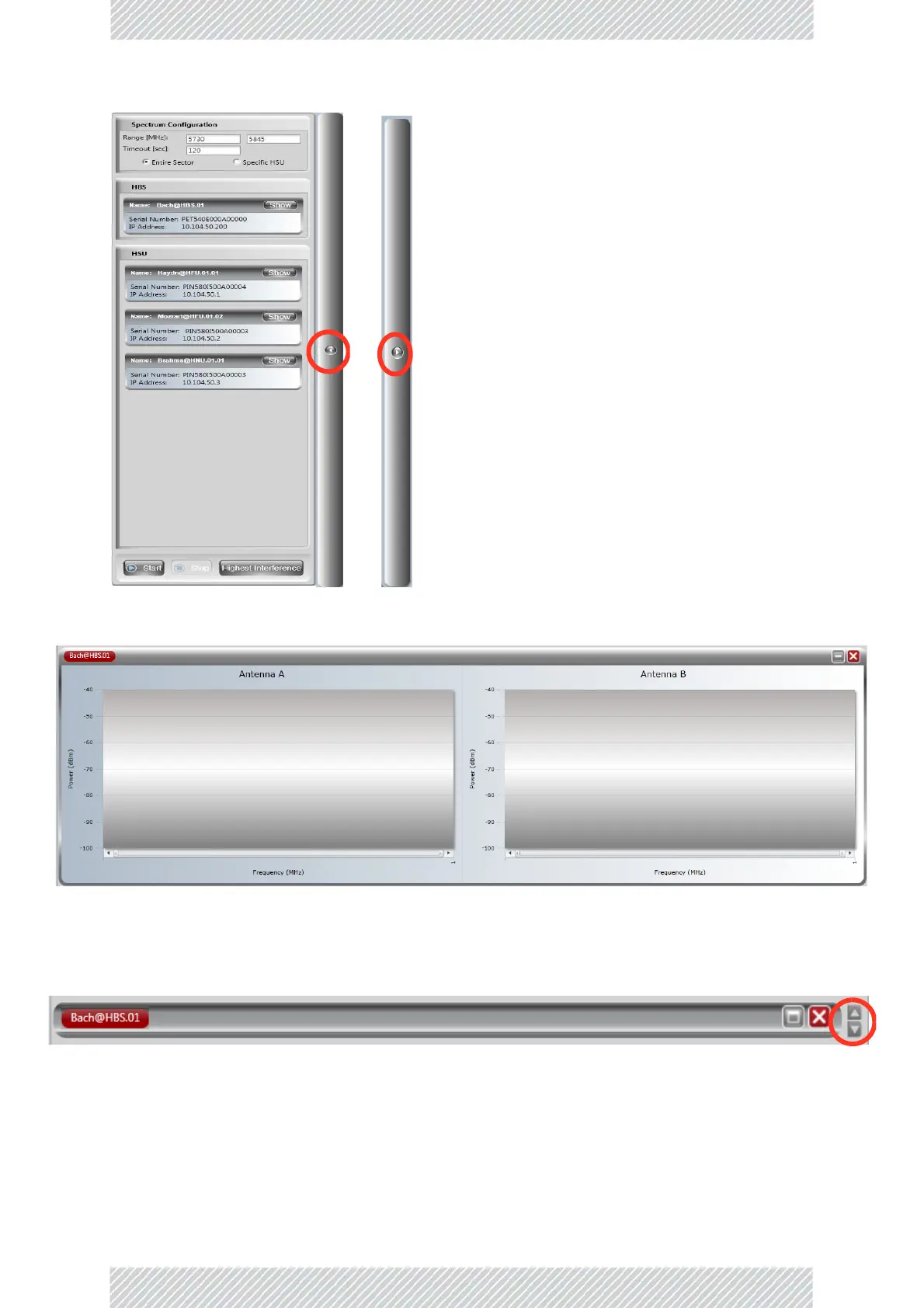

SpectrumViewMainWindow:HBS SpectrumView

IfforexampleyouclickShowontheHBS,thefollowingviewwillopenintherightpanel:
Figure12‐1:SpectrumViewdatapanelfortheHBS,readyfordata
ThestandardXbuttonclosesthewindowcompletely(butdoesnotloosedata).The‐button
collapsestheviewtolooklikethis:
Thetwosidearrows(circled)areusedtoreorderastackofsuchviewonthedisplayarea:
