RunningSpectrumViewfromaHSU SpectrumView

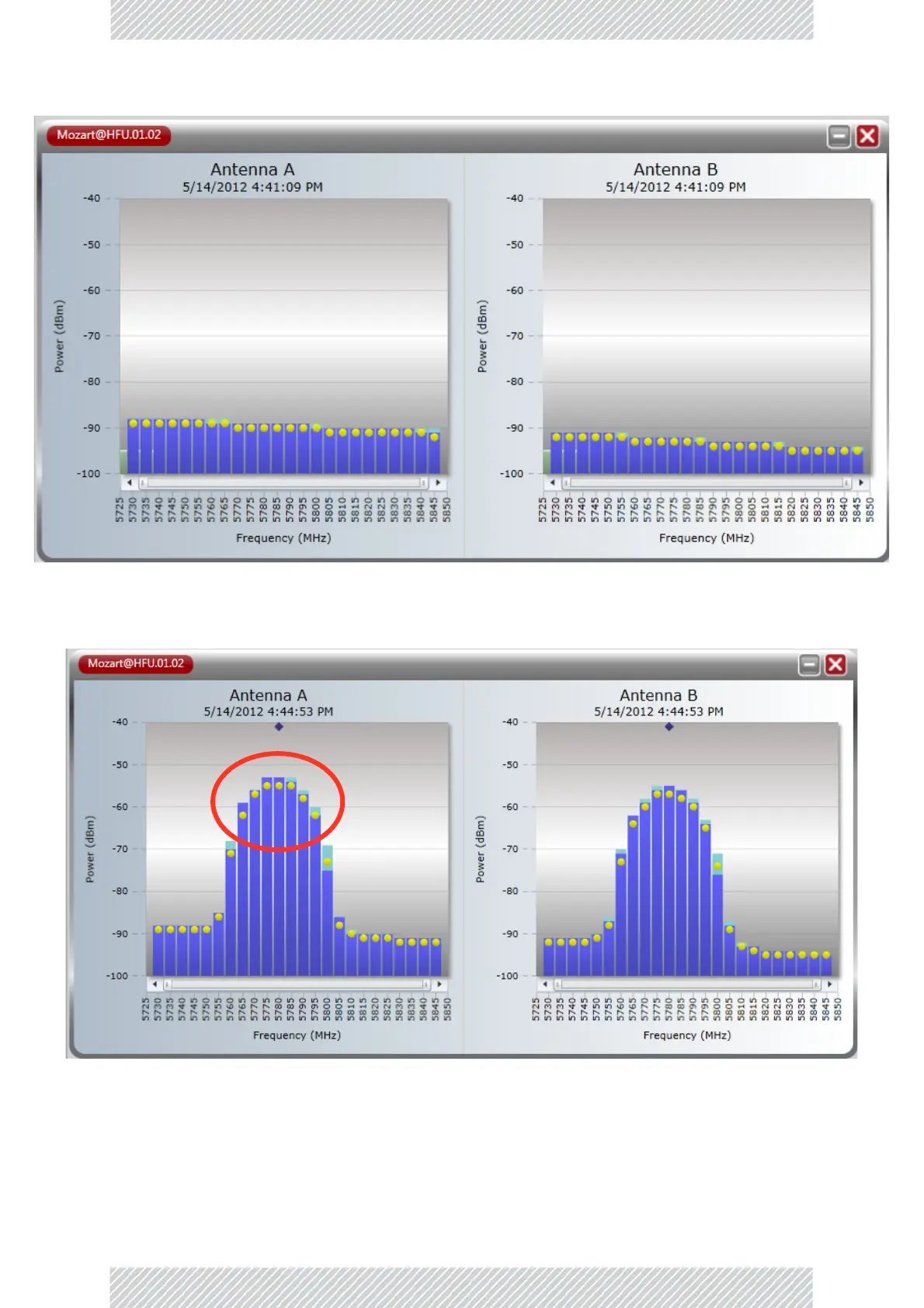

Figure12‐3:HSUspectrumanalysisincompleteisolationfromthesector
NowwereturntheHSUtothesector:
Figure12‐4:HSUspectrumanalysiswithinthesector
ThehumpinFigure 12‐4reflectsthedutycyclesignalfromtheHBScenteredonthecurrent
channel(circled).
