RADWIN5000ConfigurationGuide Release4.9.17 2‐14
UsingtheMapView RADWINManagerOverview

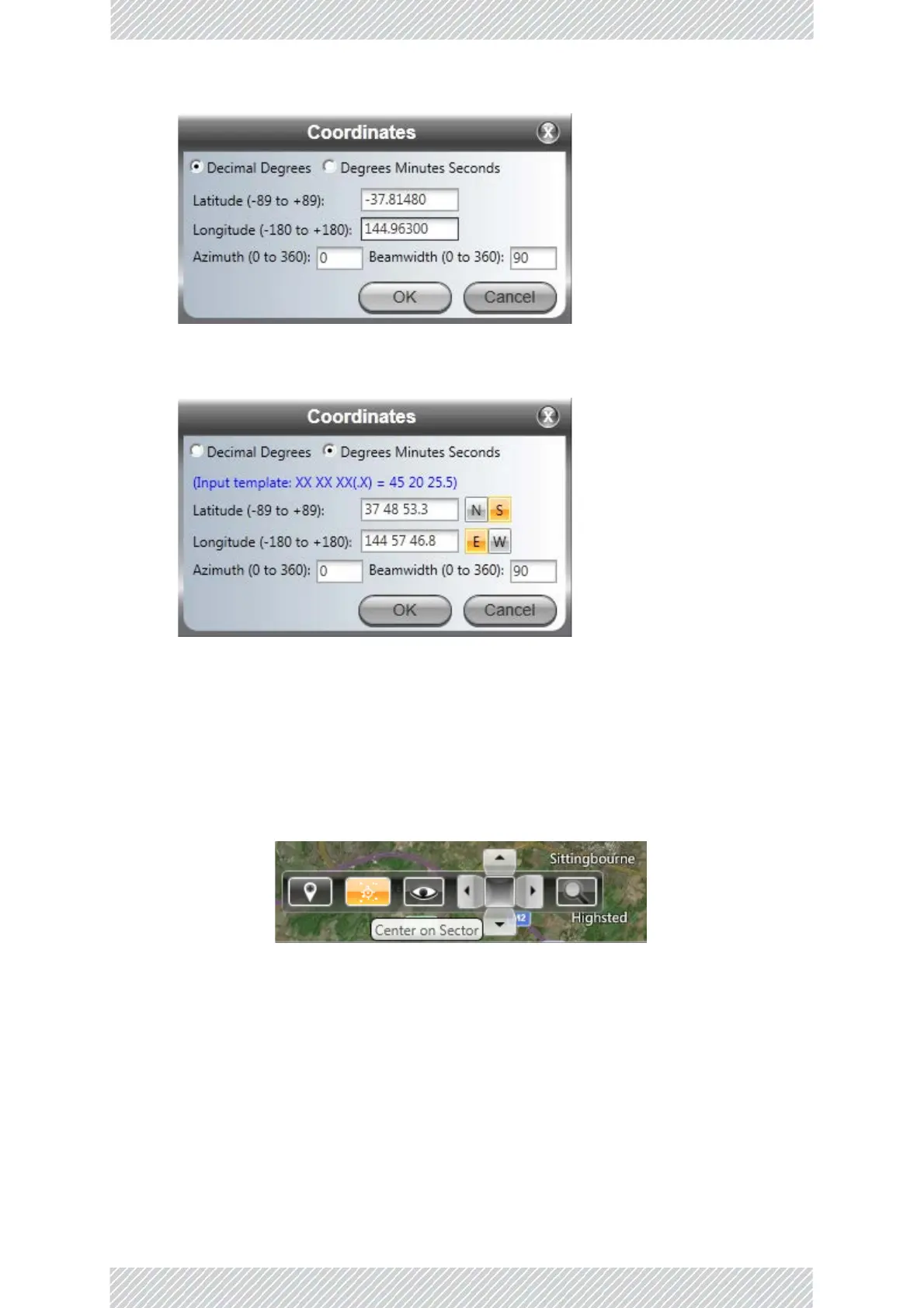

Youmayenterthecoordinatesindecimalordegrees/minutes/secondsusingthe
inputtemplateshownbelow:
3. HBSonly:TheAzimuthandBeamWidthdeterminethesectorcenter‐linedirection
andangleTheyareonlyusedforinitialdefaultdistributionofHSUsonthemap.
4. ClickOK.Theunitismovedtothenewlocation(possiblyoff‐screen).
5. RepeatthepreviousfourstepsforeachHSUinthesector.Ifattheendofthe
process,theHBSisoff‐screen,clicktheCenteronSectorbuttonto“fly”tothe
sector.
Hereisasampleoutcome:
