Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 2‐25
HBSMainWindow‐HSUsPanel RADWINManagerOverview
• ODUmalfunction
Thisisanormalsituation:


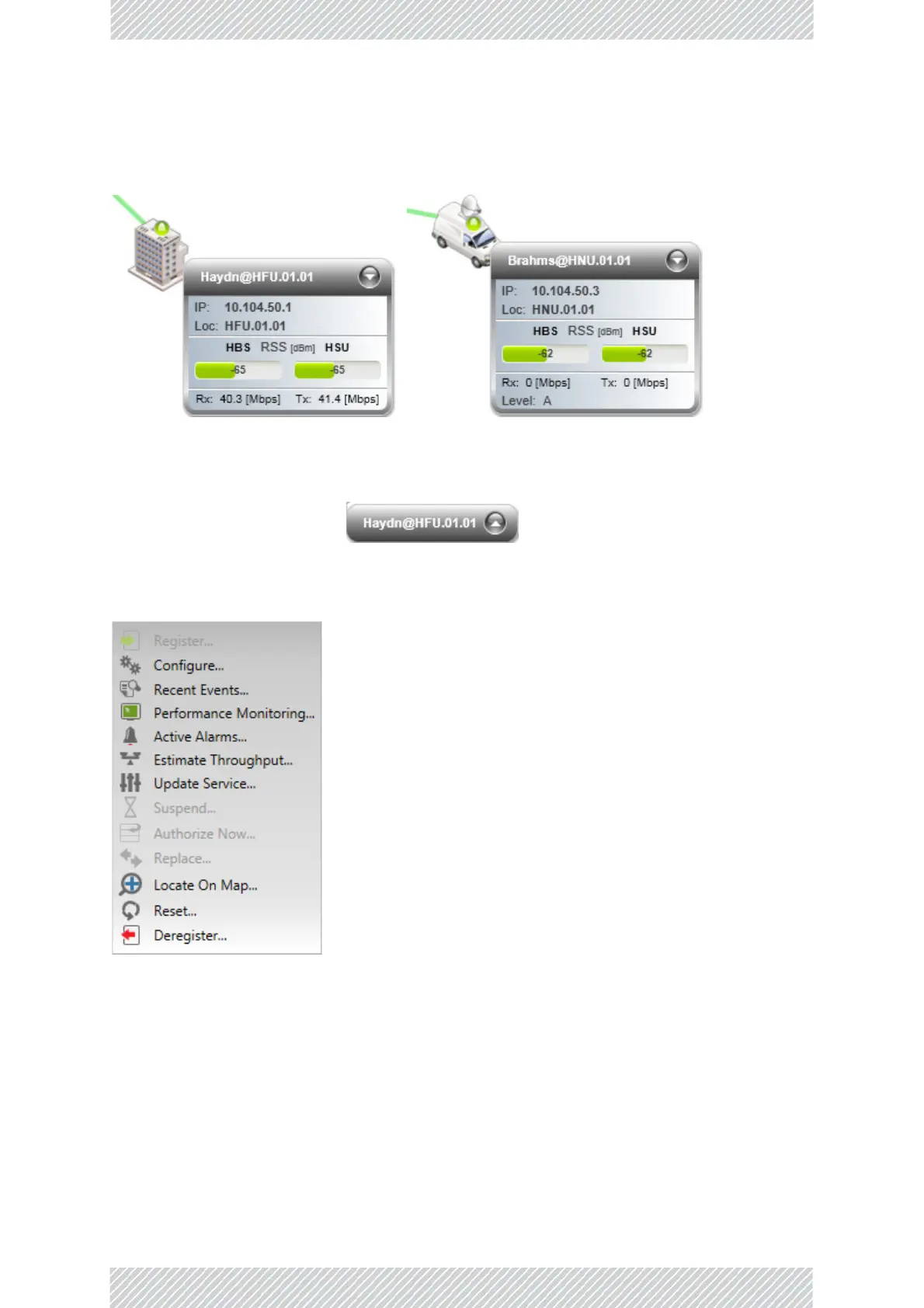

Figure2‐27:HSUstatuscards:Left:fixedHSURight:nomadicHSU
Thearrowonthetoprighthandcornercanbeusedtominimizeorrestorefulldetail.Hereis
theHSUstatusboxminimized:Thisdeviceisusefulforalargesector
withasmalldisplay.
RightclickanHSUimagetogetitscontextmenu:
Figure2‐28:HSUdisplay‐contextmenu(rightclick)
ListView
ListviewfunctionalityisobtainedbyselectingaHSUandusingthetopbuttonbarto
configureit.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
