Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 3‐6
ActivatinganHBS InstallingaSector
AnyunregisteredHSUwillestablishalinkwiththefirstHBSitdetectsandinheritthe
SectorIDfromtheHBS.AssoonastheHSUisregisteredforservicewiththeHBS,the
HSU’sinheritedSectorIDcannolongerbechangedwhilelinked:Itis“locked”into
theHBS.ThismechanismpreventsanHSUclosetoasectorboundaryfrom“drifting”
betweenHBSsforadjacentsectors.

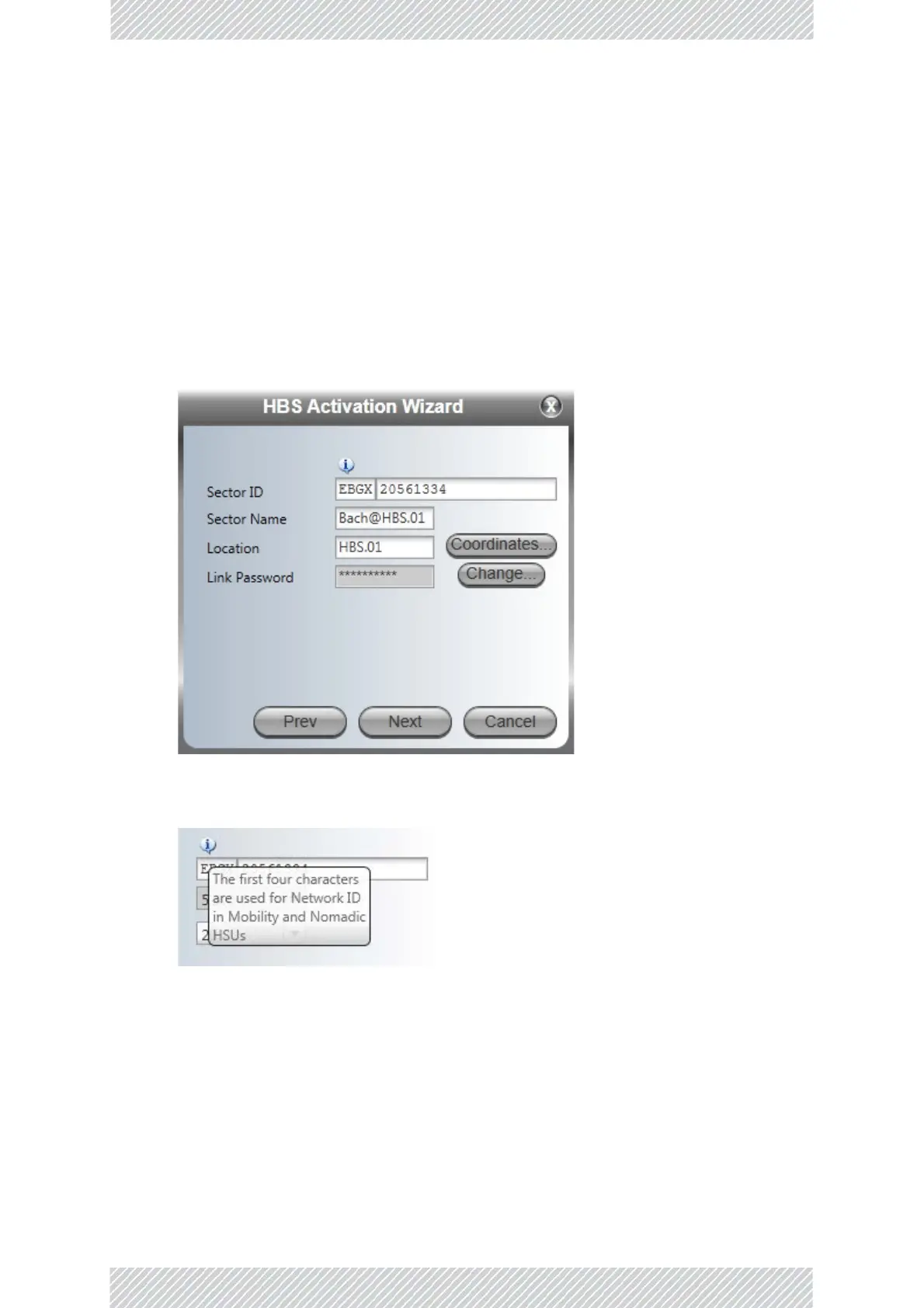

NoticethattheSectorIDissplitintotwopartsasshowninthepreviousfigure.Fora
networkconsistingofsectorswithfixedHSUsonly,thesplitisimmaterial.Ifthesec‐
torispartofanetworkhavingnon‐fixedHSUs,theneachSectorIDforeachpartici‐
patingsectorshouldhavethesamefourcharacterNetworkID.Theremainingpartis
ignoredwhenanHBSestablishesalinkwithanon‐fixedHSU.Thisfeatureenables
non‐fixedHSUstoestablishalinkwithanyHBSinthenetwork.
TheSectorIDissplitintoafourcharacterNetworkID(EBGX)andtheremainingpart
(20561334).
ForfixedHSUsyoumayignorethesplit.Fornon‐fixedHSUs,theuseofthesplitSec‐
torIDisexplainedonpage 6‐4.
ChooseyourSectorIDitcarefullyparticularlyifyouareusingcollocatedHBSsfor
extracoverage.TheSectorNameandLocationareconvenienceitemsbutshouldbe
chosentoensurethatthesectorisdocumentedandeasilyidentifiableinyourRF
planning.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
