Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 3‐7
ActivatinganHBS InstallingaSector

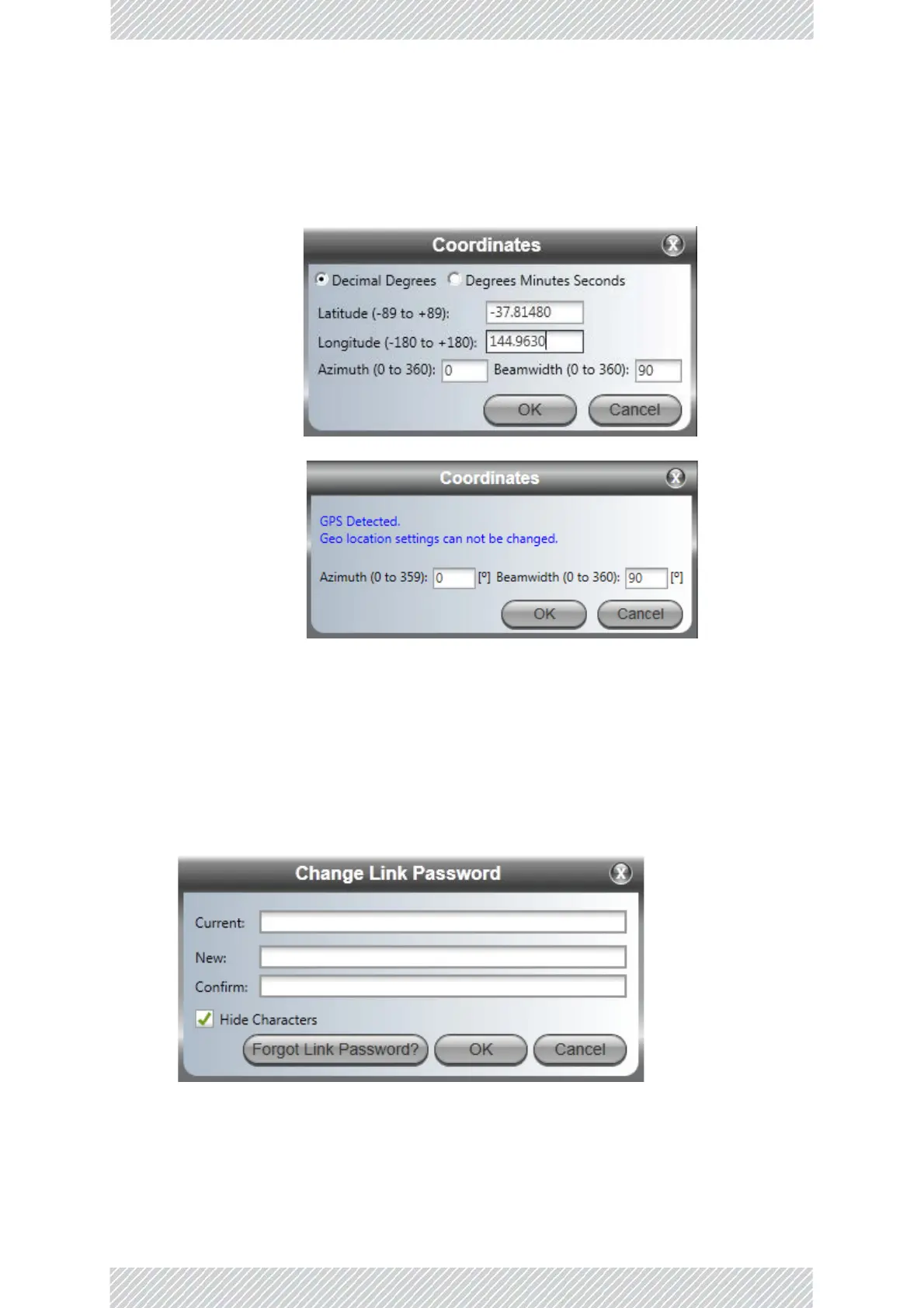

3. OpentheCoordinatesdialog.Thecoordinatesdialogthatappearsdependsifyou
areusingapassiveantennafortheHBS,ortheJETactivebeam‐formingantennafor
theHBS:
4. Ifyouareusingthepassiveantennaoption,setthelocationoftheHBSin
accordancewithyourplan.
IfyouareusingtheJETactivebe am‐formingantenna,thelocationoftheHBSisset
bytheGPSandcannotbechangedmanually.
5. TheLinkPasswordmayalsobechangedbyclickingChange:
FulldetailsforchangingtheLinkPasswordmaybefoundonpage 4‐22.
Itisbestleftasisifthereisnopressingneedtochangeit.
PassiveantennaHBS:
JETHBS:

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
