RADWIN5000ConfigurationGuide Release4.9.17 3‐24
RegisteringafixedHSUforservice InstallingaSector
7. IfyouchosetheBEresourcetypeinStep5.above,yourunitisanSUAIR,clickthe
Registerbutton.Inafewmoments,theHSUwillberegistered,andlooksomewhat
likethis:
ThePeakThroughput(T‐put)showswhateverthroughputvaluethesystemwasable
toachievefortheHSU,inbothdirections.Notethecolorislightblue,showingthat
thethroughputisnotguaranteed,butonaBestEffortbasis.Thiscompletesthereg‐
istrationprocessforaBEunit.
8. IfyouchosetheCIRresourcetypeinStep5.above,clicktheEvaluatebutton.
Serviceevaluationtakesafewsecondsduringwhichthewindowisdarkenedand
inactive.


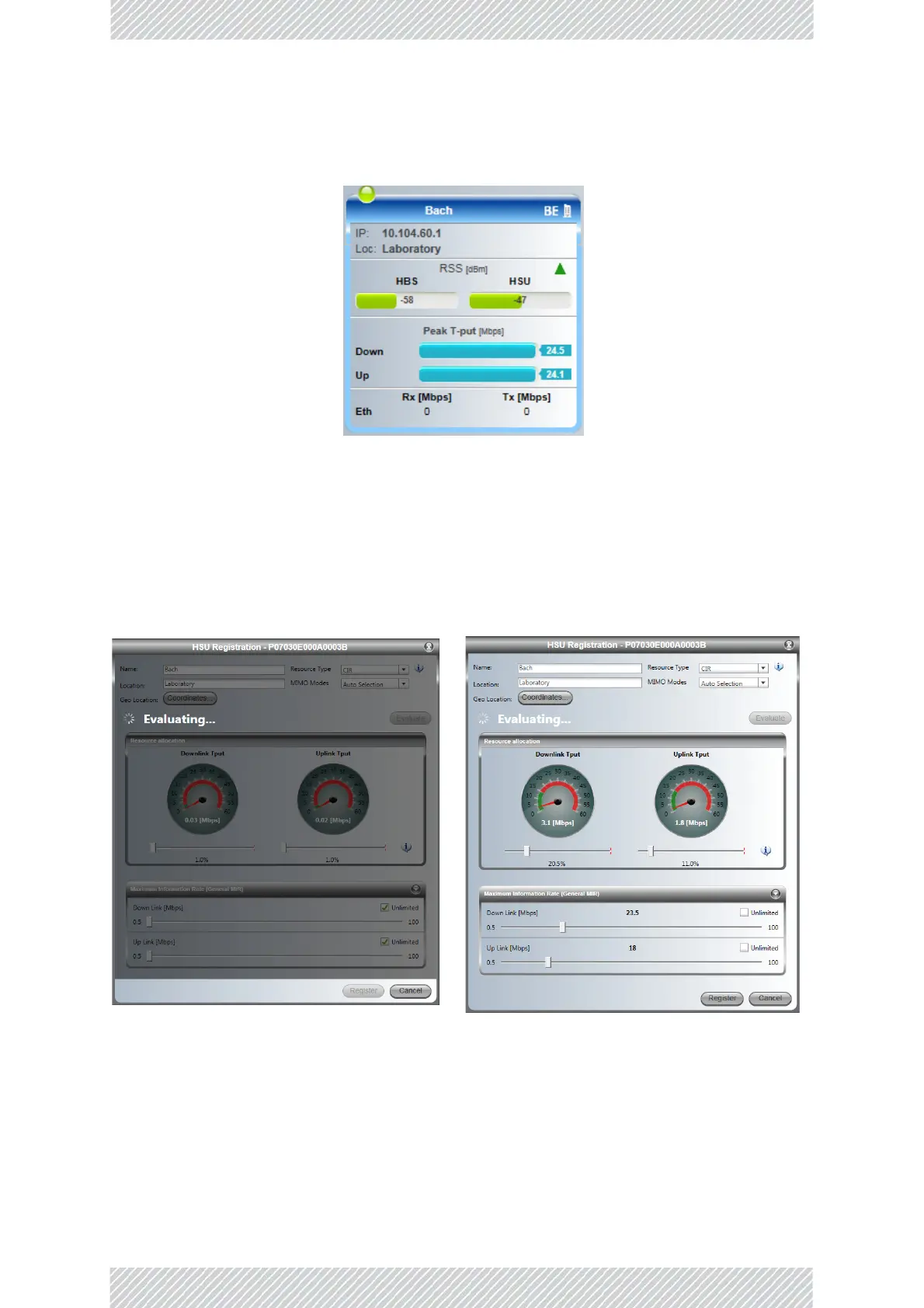

Figure3‐4:HSURegistrationdialog
NoticethattheEvaluatingactivityiconcontinuestorotateaftercompletionofthe
evaluation.TheManagermaintainsdynamicmonitoringofthesectorforinjection
intothesectorofHSUselsewhereandaccordinglyr
educestheavailableresources.
9. Resourceallocation:Usethesliderstochoosethepercentageofresourcestobe
allocatedtotheHSU.Thisisthepercentageofavailableresourcesinthesector.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
