RADWIN5000ConfigurationGuide Release4.9.17 3‐23
RegisteringafixedHSUforservice InstallingaSector

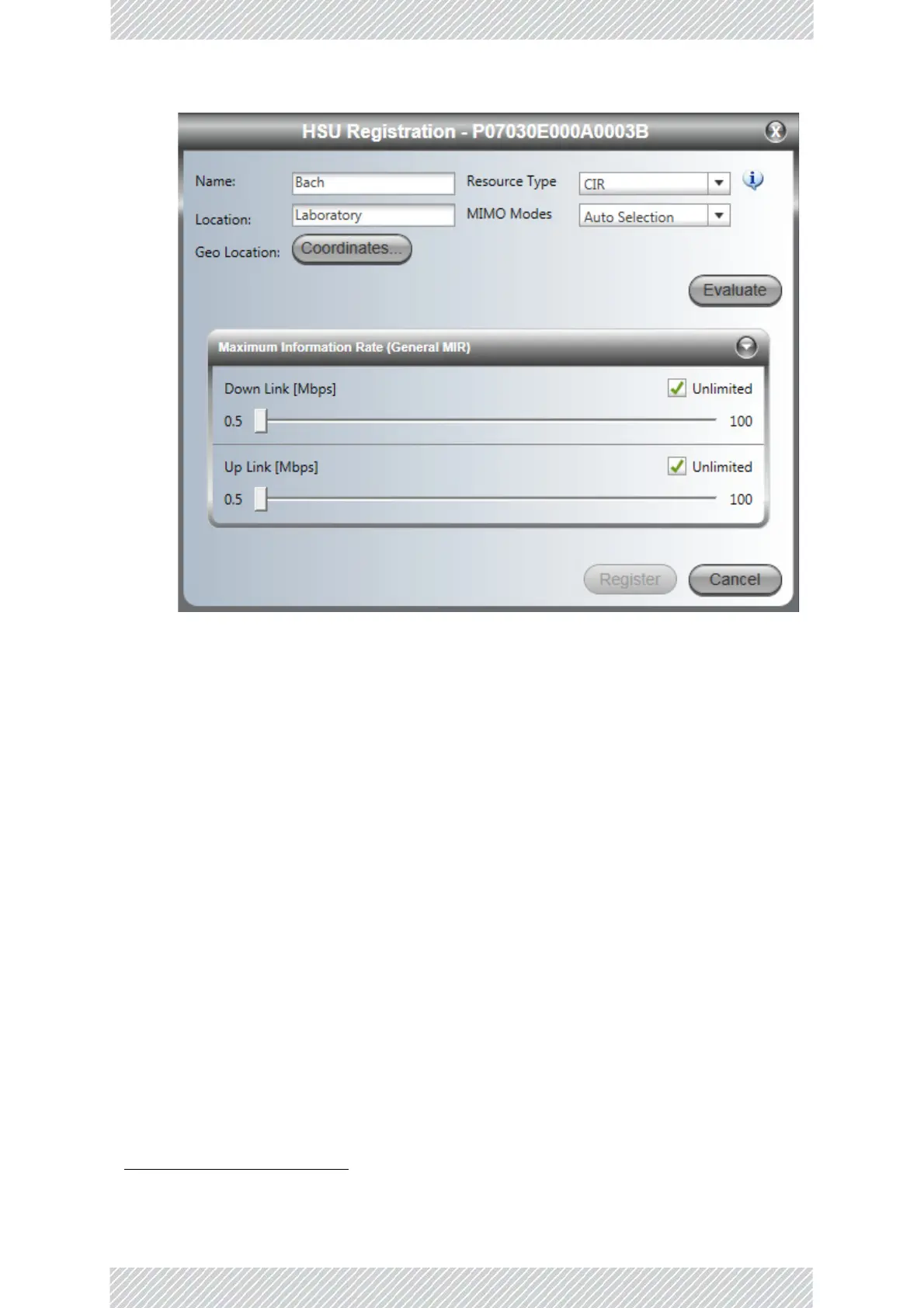

3. YoumayeditoraddthesiteName,LocationandCoordinates.
4. IfyouareregisteringanSUAIR,theResourceTypecanonlybeBE(BestEffort).Skip
toStep6.
5. SelecttheResourceTypeforthe HSU.ThiscanbeCIR(CommittedInformation
Rate),orBE(BestEffort):
• BEgrantstheHSUres
ourcesastheybecomeavailableinthesector.
• CIRgrantstheHSUwithacertainguaranteedpercentageofresourcesof
thosealreadyallocatedtoCIRtrafficinthesector(seeAirInterfaceon
page 4‐3).YousetthispercentageintheMIRwindow.
6. CheckaMIMOMode
1
forthisHSU:
• SpatialMultiplexing(default)splitsthedataintotwostreamsontransmis‐
sionandrecombinesitonreceptionprovidingmaximumthroughput.This
providesahigherthroughput.
• Diversitytransmitsthesamedataonfrombothantennasandcheckfor
correctnessonreception.Thismodehelpstoensuremorereliabledata
transmissioninanoisyenvironment,althoughthroughputwillbelower.
• AutoSelectioninstructsthesystemtochoosewhichevermodeismosteffi‐
cient.
1. FormoreonMIMOantennamodes,seeAppendixC.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
