RADWIN5000ConfigurationGuide Release4.9.17 4‐11
Management ManagingtheSector
4. ClickOKtosaveyourchoice.

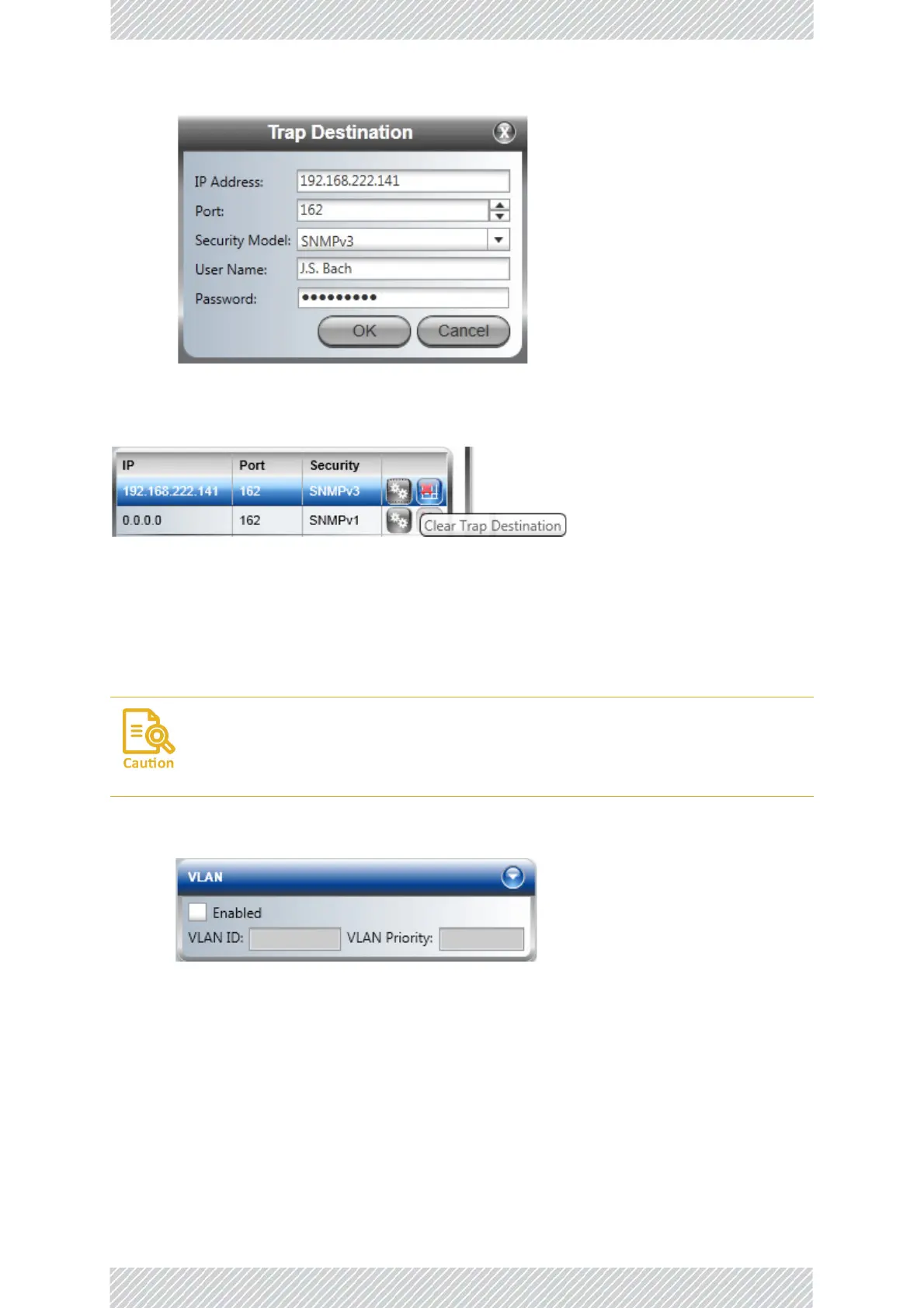

Notethatforeachactivetrapdestination,theClearTrapDestinationbuttonisenabled:
VLANforManagement
VLANManagementenablesseparationofusertrafficfrommanagementtrafficwhenever
suchseparationisrequired.Itisrecommendedthateachmemberofasectorbeconfigured
withdifferentVLANIDsformanagementtraffic.(Thisreducesyourchancesofaccidentally
lockingyourselfoutofthesector.)
 ToenableVLANformanagement:
Figure4‐1:VLANforManagement
1. InthewindowofFigure 4‐1,checktheEnabledbox.
2. EnteraVLANID.Itsvalueshould bebetween2and4094.
AfterenteringtheVLANID,onlypacketswiththespecifiedVLANIDareprocessed
formanagementpurposesbytheHBS
/HSUODU.Thisincludesalltheprotocolssup‐
portedbytheODU(ICMP,SNMP,TelnetandNTP).UsingVLANformanagementtraf‐
ficaffectsalltypesofmanagementconnections(local,networkandovertheair).
3. EnteraPrioritynumberbetween0and7.
VLANIDsareusedbyRADWINproductsinthreeseparatecontexts:
ManagementVLAN,TrafficVLANandEthernetRing.Itisrecommended
thatyouusedifferentVLANIDsforeachcontext.
