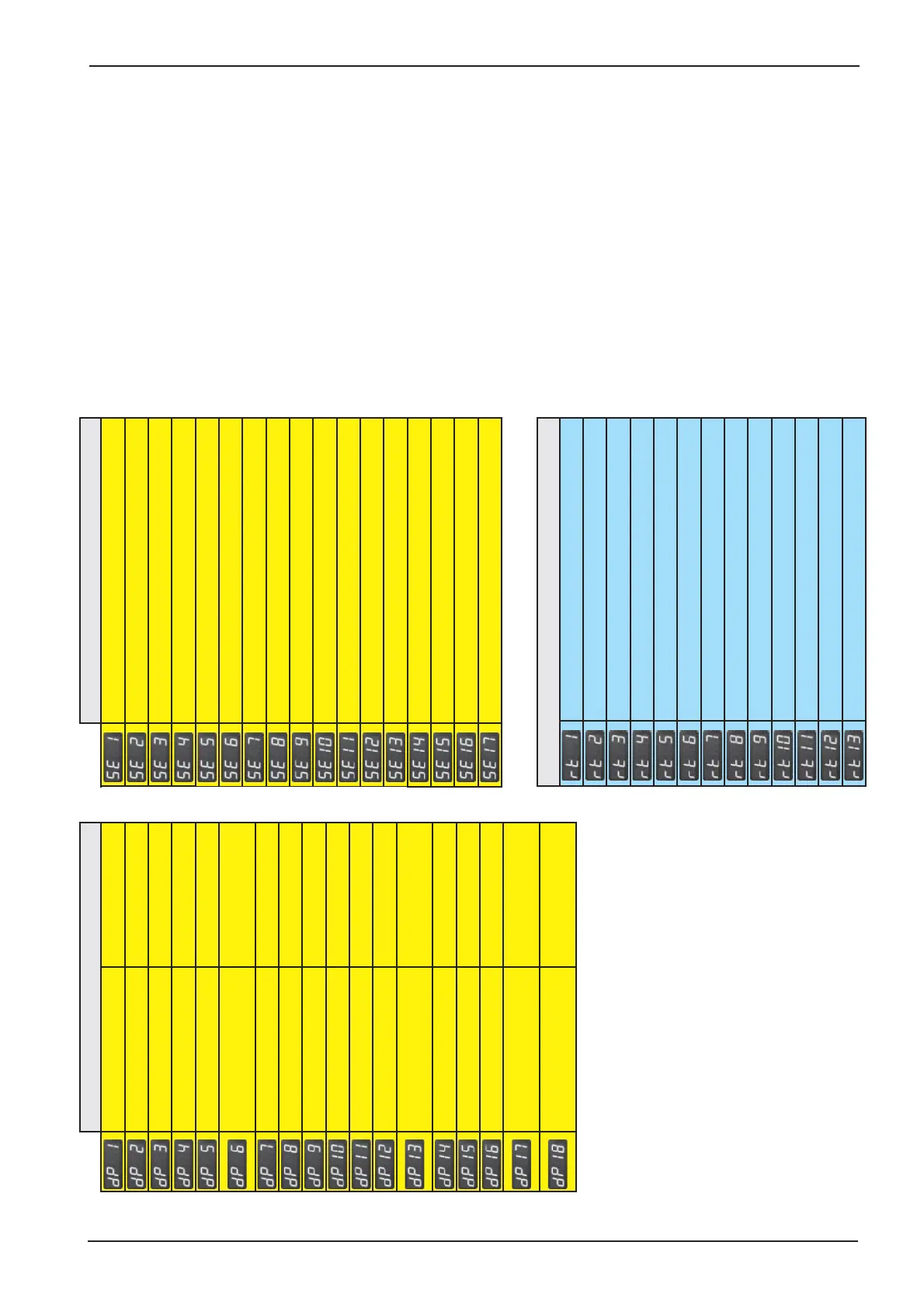

Diagnostic program
Software version B1 cabinet sensor B2 quenching sensor B3 core probe sensor B5 sensor steam generator PCB temperature
must be below 75°C (167°F)
S3 door contact o - open; 1 - closed S2 level electrode 0 - no water; 1 - ok steam element energised 0 ; 1=50%; 2=100%
hot air element energised 0 ; 1=50%; 2=100%
rpm fan motor top rpm fan motor botttom Sicotronic energy optimi- sing Unit type and size Gas - Flame current steam normal: 4,5 - 5,5A Gas - Flame current hot air top
normal: 4,5 - 5,5A
Gas - Flame current hot air bottom
normal: 4,5 - 5,5A
RT - Running Times
S3 door openings Total time Y1 valve  lling Total time Y2 valve quenching Total time M4 SC-pump Total time steam heating time Total time hot air heating time Total time steam mode Total time hot air mode Total time combination mode Total time vario steam mode Total time  nishing mode Total time cleaning program Total running time unit
SE - Basic Settings Steam heating time since last SC-Automatic Preset Steam heating time until SC-Automatic Flushing time SC-Automatik Operation steam generator pump Show mode Setting new gas type Presetting of CO2 screw in mm installation altitude above sea level rpm blower motor steam MIN rpm blower motor steam Start rpm blower motor steam MAX rpm blower motor hot air top MIN rpm blower motor hot air top Start rpm blower motor hot air top MAX rpm blower motor hot air bottom MIN rpm blower motor hot air bottom Start rpm blower motor hot air bottom MAX
