P/N 016-0171-493 Rev. I 147
Tools Menu
7

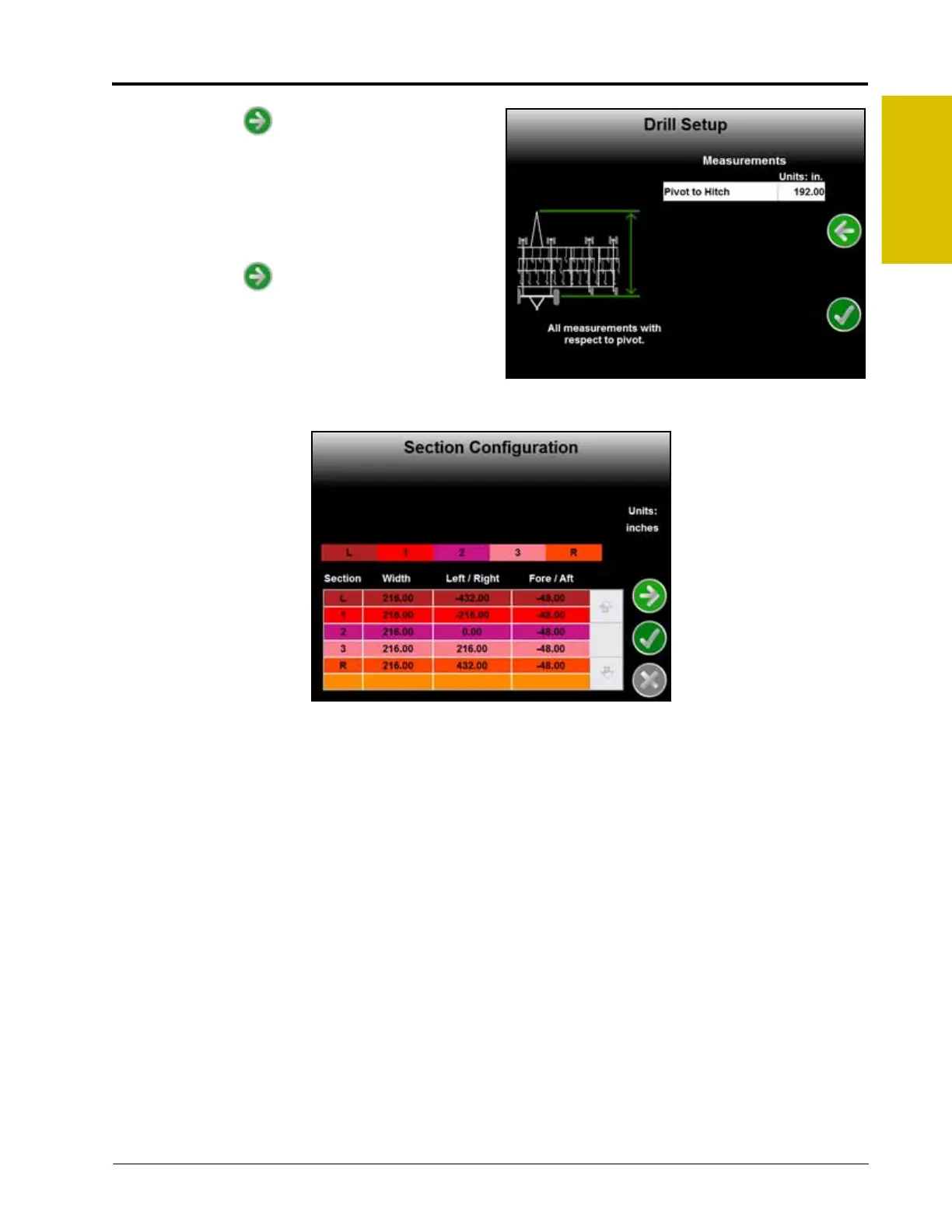

4. Touch the Next icon to proceed to the Drill
Setup screen.
5. The final value required for the tow between
implement type is the distance between the drill
hitch pin to the pivot point of the seed drill.
Generally, the pivot point for a seed drill is the center
of the rear frame axle.
6. Touch the Next icon to complete the trailed
implement with tow between cart configuration.
Sections
Touch the Sections icon to display the Section Configuration screen.
The Section Configuration screen shows an overview of the current section configuration including section
widths, left or right offsets and fore or aft offsets. This screen is used only to review the current section
configuration.
Note: The reference point for measuring the section left/right and fore/aft offsets depends upon the
implement type selected prior to configuring the section configuration.
• Self-propelled or mounted Implement - The reference point is the antenna position. Offsets
must be measured from the antenna to the midpoint of each section.
• Trailed Implement - The reference point is the implement pivot point, usually the center of the
implement wheel base. Offsets must be measured from the implement pivot point to the
midpoint of each section.
• Trailed Implement with Tow Between - The reference point is the rear hitch of the tow
between implement. Offsets must be measured from the rear hitch to the midpoint of each
section.
Review the Offsets and Implement Type Selection section on page 142 for details on measuring
section offsets.
