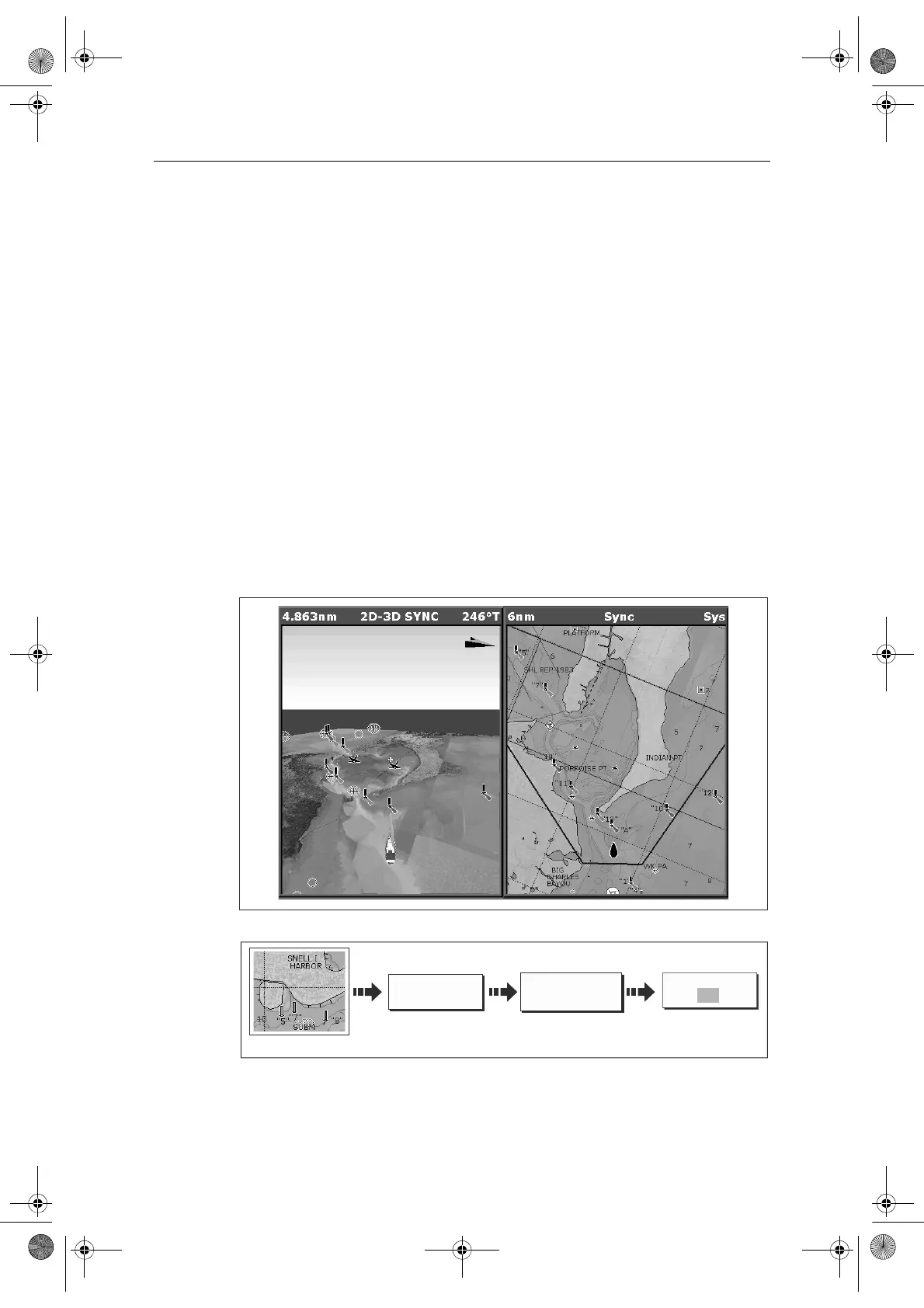

Chapter 5: 3D Chart 125
Chart synchronization
Chart synchronization enables you to synchronize the heading, range and position
information on the 2D and 3D charts.
When chart synchronization is ON, please note the following:
The 2D-3D synchronization is shown in the status bar of the applications.
Soft key options that are not available with this feature are “grayed” out.
Pressing FIND SHIP from any synchronized application, will return the 3D chart to
the default active motion mode view and synchronize the 2D chart to the same view.
Any changes made to the heading, range or position in either 2D or 3D charts will
be displayed in both 2D and 3D windows.
If the 2D chart view for the current window is set to SYSTEM and you have multiple
windows on a page/more than one display, any changes made to a chart will be
reflected in all windows in all displays.
If the 2D chart view for the current window is set to LOCAL, no other windows will
be affected.
You can synchronize the 2D chart with the 3D chart or the radar but not both.
To synchronize the 2D and 3D charts:
D8257_1
CHART MODE AND
ORIENTATION...
D8244_1
PRESENTATION
Chart application active
CHART SYNC
RDR 3D OFF
81244_4.book Page 125 Thursday, January 31, 2008 1:53 PM
