52 E-Series Networked Display Reference Manual
4.3 Viewing the chart
You will normally view your chart with the vessel on screen and motion mode ‘active’.
When motion mode is active, as your vessel moves, the chart is redrawn to keep the
vessel on screen. When you zoom the chart in active mode, the chart zooms about your
vessel position.
Alternatively, you may be planning a journey and do not want the chart to redraw as
your vessel moves. You can suspend the active motion mode by using the cursor to pan
the chart (see
page 53
) or by selecting FIND CURSOR.
When motion mode is suspended, the mode is shown in the status bar in parenthesis
e.g. (RELATIVE MOTION); zoom operates about your cursor position.
Provided the necessary data to ascertain your vessel’s position is available, you can
activate the motion mode, by selecting FIND SHIP.

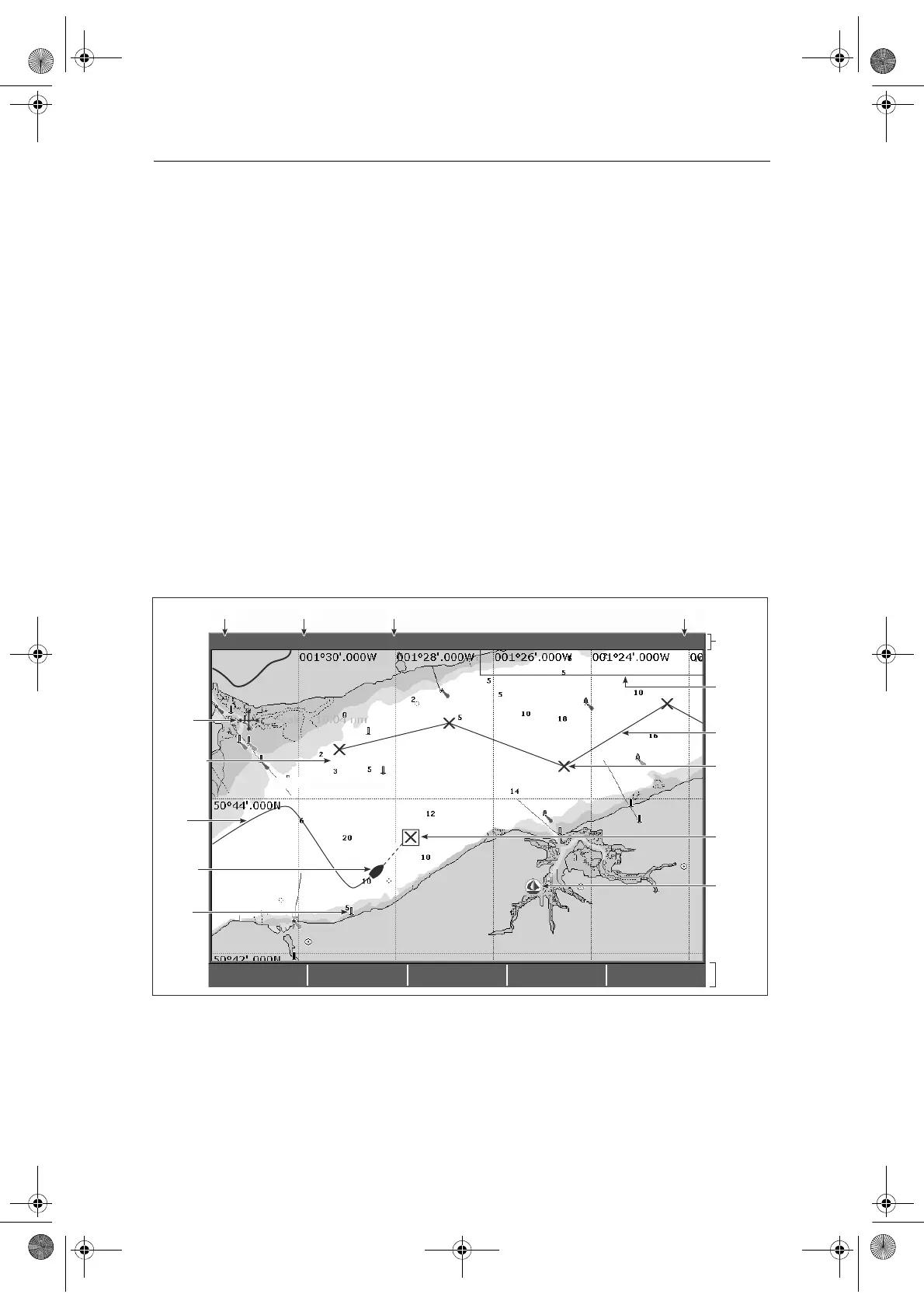

4.4 The chart display
The main features of the chart display are as follows:
FIND
SHIP CURSOR
GOTO... ROUTES... TRACKS... PRESENTATION...
4nm North-Up (Relative Motion) Local
Gully Ridge
Creek point
Port point
Portside
Chart
boundary
Chart range
Chart orientation
Motion mode
Status
bar
Cursor
Route
Waypoint
name
Current
position
Waypoint
Track
Carto-
graphic
object
Active
waypoint
Soft
keys
D6605_2
Chart view
Port
Services
81244_4.book Page 52 Thursday, January 31, 2008 1:53 PM
