RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 16

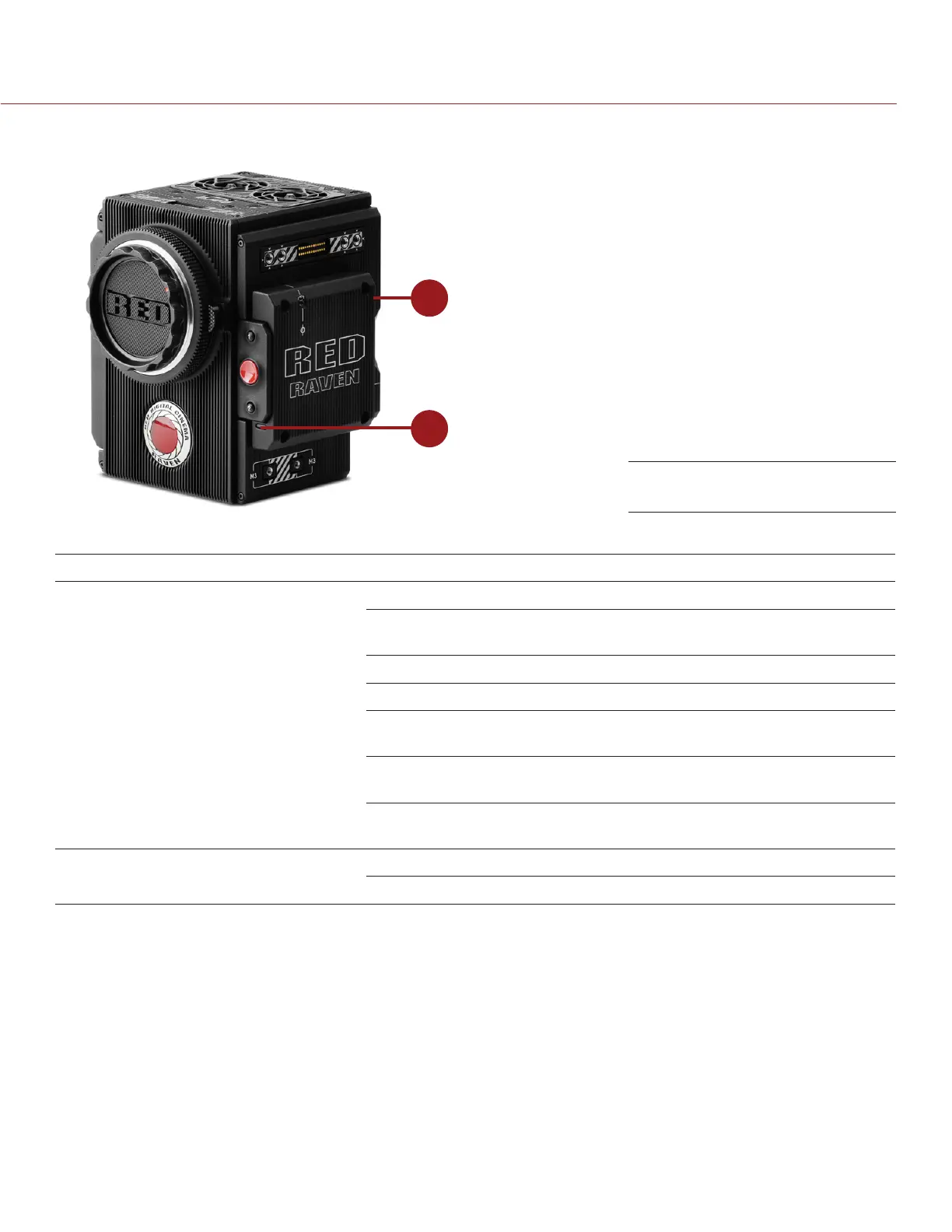

MEDIA BAY LEDS

This section describes the LED functions for the media bay.

# LED COLOR/FLASHING DESCRIPTION

1 Media Status LED

(Back of media bay)

Off No media mounted

Green Preview; media mounted with > 10% of

media space available

Amber Record finalizing or playback mode

Amber flashing (slow) Formatting media

Red flashing (slow) Media mounted with > 5% and ≤ 10%

of media space available

Red flashing (fast) Media mounted with ≤ 5% of media

space available

Red Recording; media mounted with > 10%

of media space available

2 Record Status LED

Off Not recording, or media not mounted

Red Recording

1. For more information on how to enable/disable this LED, go to “Indicator” on page 87. If media is not mounted, this LED is off.

RED RAVEN Media Bay LEDs
