DSMC2 BASE EXPANDER

The DSMC2 Base Expander is an ideal connector module for general input/output (I/O) needs. Manufactured

from lightweight and durable magnesium, this low-profile module mounts directly to the BRAIN and offers

interface connections for power (DC IN), HDMI, 3G-SDI (HD-SDI), CTRL and SYNC ports (for Timecode and

Genlock), as well as a 3.5mm microphone input and a 3.5mm line-level headphone out.

The DSMC2 Base Expander also offers rear-mounting support for DSMC2-compatible battery and power

modules, such as the DSMC2 REDVOLT

XL Module. The low profile DSMC2 Base Expander offers a variety of

connectors and is ideal for run-and-gun and independent shooters.

NOTE: Only one (1) expander module can be used at a time.

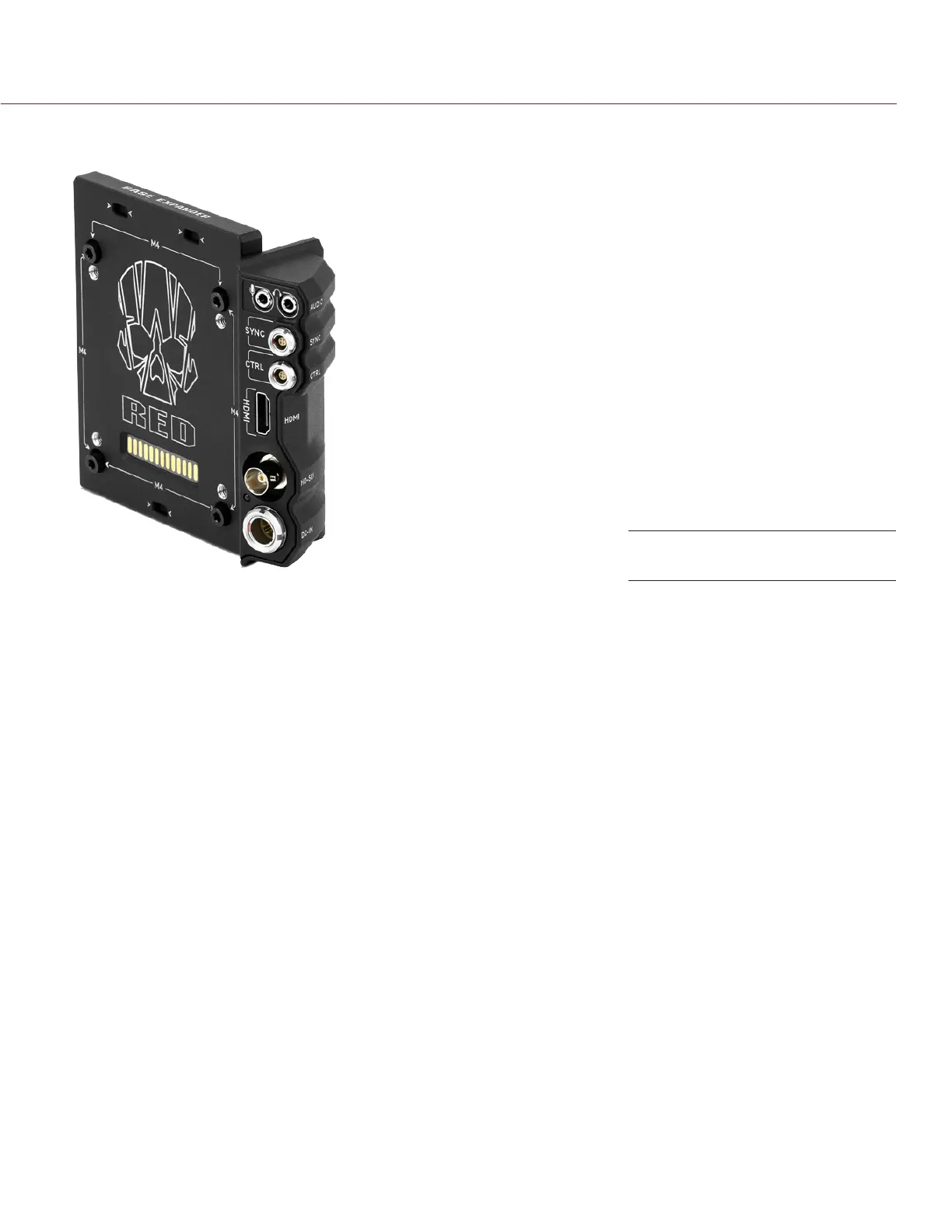

DSMC2 Base Expander
