RED RAVEN OPERATION GUIDE

DSMC2 REDVOLT EXPANDER

Designed for advanced configurations, the DSMC2 REDVOLT Expander mounts directly to the camera and

offers an expansive array of I/O connectors and functionality available for the camera system. The DSMC2

REDVOLT Expander features ports for power in (DC IN), Genlock (BNC), Timecode (LEMO), GIG-E, and more.

HDMI and two 3G-SDI (HD-SDI) outputs offer versatility for your video output needs, while an integrated USB

power output is available to support wireless HDMI transmitters.

The DSMC2 REDVOLT Expander offers a removable audio module with two (2) standard XLR connections for

most professional audio needs. Each XLR input features a 3-position selector switch to designate the incoming

audio signal type: Balanced Line Level, Balanced Mic Level, and Balanced Mic with +48V phantom power.

Additionally, a 3.5mm line-level headphone jack lets you sample audio during takes and in playback mode.

The DSMC2 REDVOLT Expander also provides multiple auxiliary power outputs, enabling the use of peripheral

camera accessories and more:

 A rear-facing 4-Pin 0B LEMO AUX PWR output supports Start/Stop Trigger IN, Tally OUT, and provides

power out up to 1.5 Amps.

 A front-facing 2-Pin 0B LEMO AUX PWR port provides 3.0A maximum.

 A front-facing 7-Pin 0B LEMO SERIAL provides 1.5A maximum. The SERIAL port is ideal for connecting to

motor drivers.

 A rear-facing Timecode port offers 5V at 200 mA for powering external timecode devices.

 A rear-facing USB port offers 5V at 1.5A for powering HDMI transmitters or small mobile devices.

 The two (2) 3-Pin XLR audio ports in the audio module each offer +48V phantom power.

For hot-swap support when it matters most, the DSMC2 REDVOLT Expander also supports a single REDVOLT

battery. Additional DSMC2-compatible battery and power modules can be mounted for your changing power

needs.

The DSMC2 REDVOLT Expander also features a selector switch that enables the camera to automatically boot

when power is provided via the DC IN connector on the expander. This feature allows you to use a connected

DC input supply to turn the camera on and off when the camera is mounted in remote or difficult to maneuver

locations. This expander is the ideal solution for a variety of production environments, maximizing camera

interface and functionality for the most demanding shoots.

NOTE: Only one (1) expander module can be used at a time.

NOTE: The DSMC2 REDVOLT Expander requires that your camera must be on firmware v6.2.55 or later.

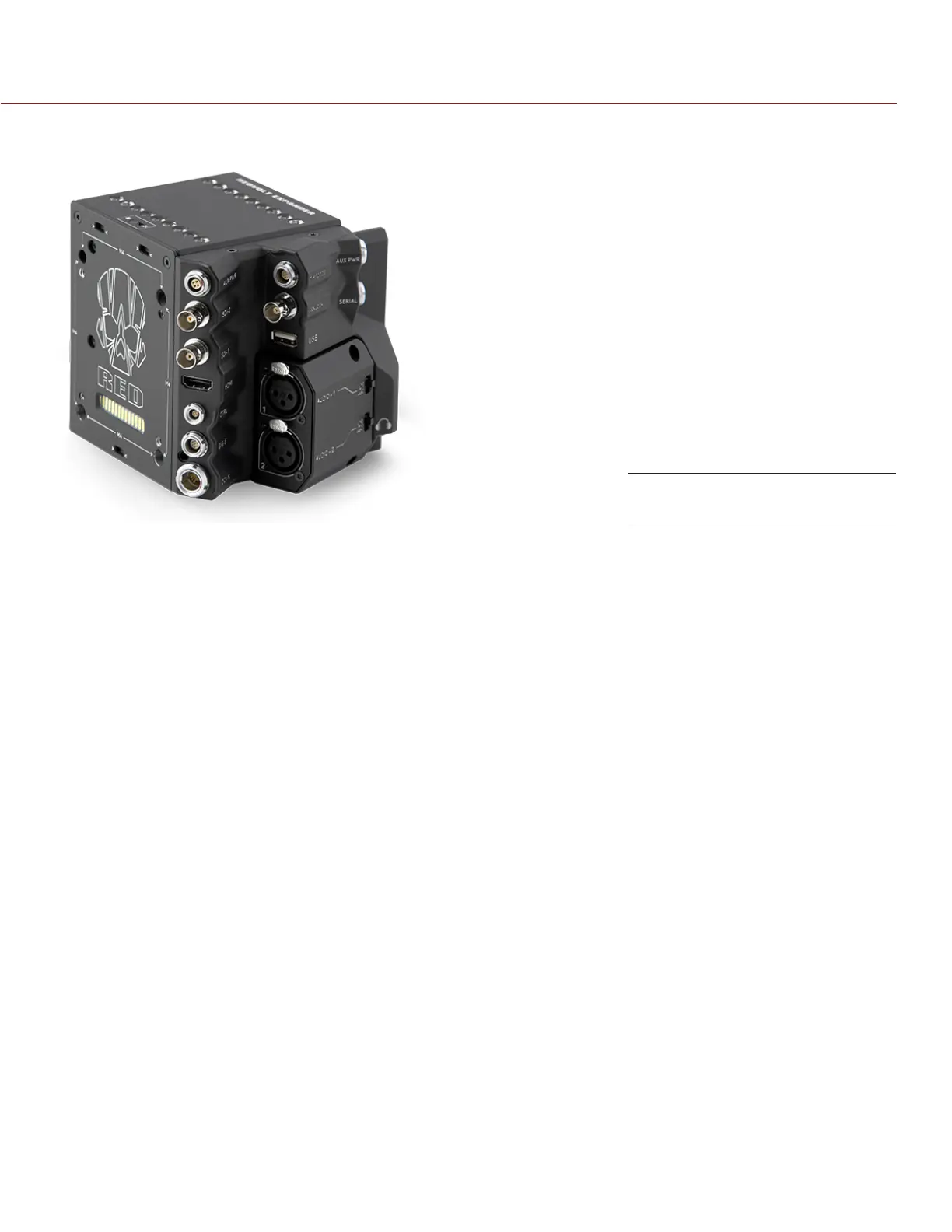

DSMC2 REDVOLT Expander
