GENLOCK
The DSMC2 REDVOLT Expander features a Genlock (GEN) connector.
The 75 ohm BNC connector accepts incoming sync and genlock signals.
75 OHM BNC CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
Center SYNC SMPTE ST 274
RS 170A Tri-Level Sync
In
Shield/Screen GROUND Camera ground N/A
COMPATIBLE CABLE
790-0341: RED HD-SDI Cable (6’)
TIMECODE
The DSMC2 REDVOLT Expander features a Timecode (TC) connector.
The LEMO EAG.0B.305.CLN connector supports SMPTE timecode input and output. Pins 2 and 3 can be used
together to receive a balance SMPTE 12M serial timecode input. Pin 2 can be used by itself (leave pin 3 open)
to receive a single-ended SMPTE 12M serial timecode input. Pin 5 is a timecode output.
2
1
3
5
4

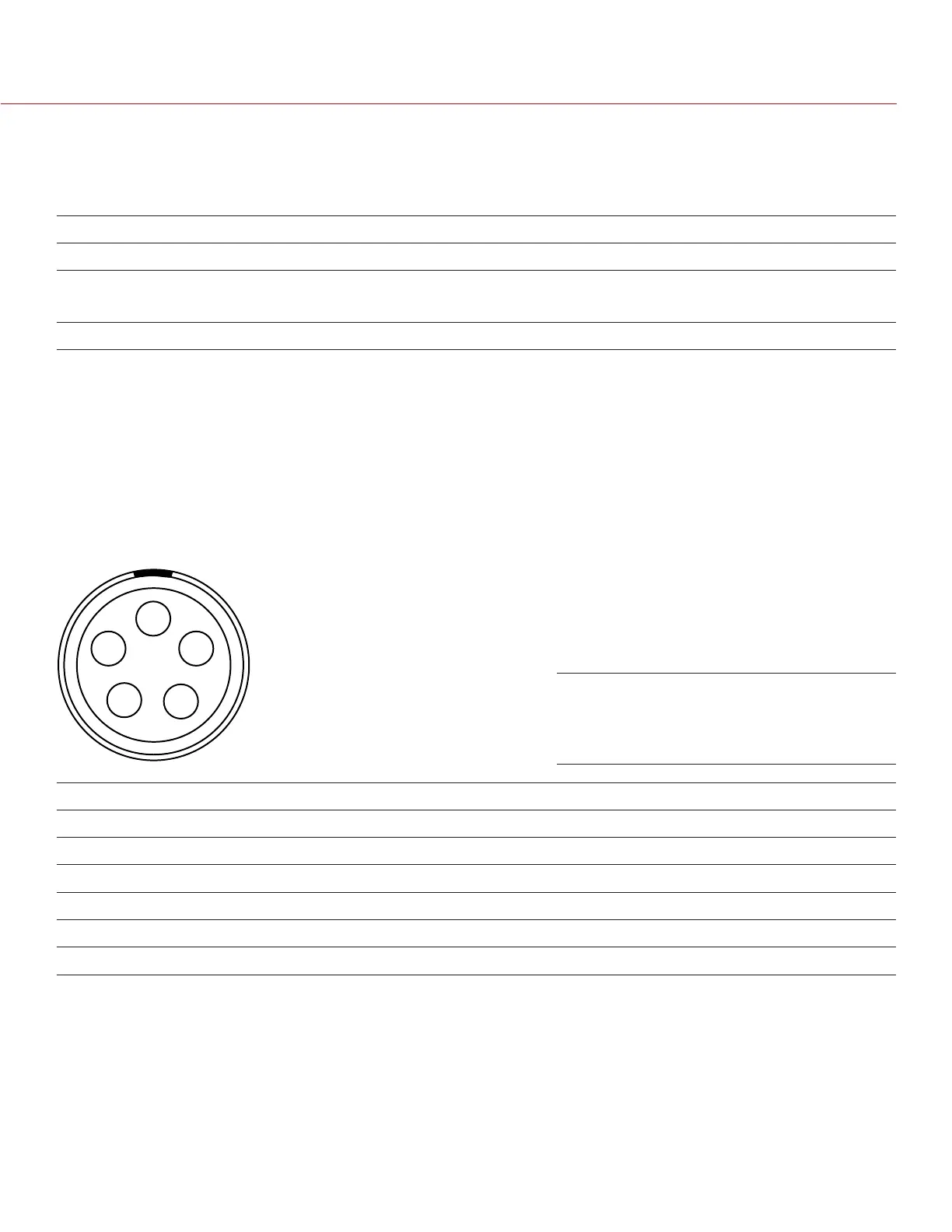

LEMO EAG.0B.305.CLN CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Camera Ground N/A
2 TIMECODE IN(S) Timecode input - SMPTE single ended In
3 N/A No connection (NC) N/A
4 +5 V OUT +5 V out, 200 mA max Out
5 TIMECODE OUT SMPTE 12 M Timecode output Out
NOTE: Mating connector is FHG.0B.305.CLAD.
COMPATIBLE CABLE
790-0212: Pro I/O Time Code Cable 3'
Front Face of Timecode
(LEMO EAG.0B.305.CLN) Connector
(Looking at the Camera)
