RED RAVEN OPERATION GUIDE
COPYRIGHT © 2016 RED.COM, INC 955-0127_V6.3, REV-E | 27
DSMC2 RED EVF
The DSMC2 RED EVF (OLED) is a high definition electronic viewfinder designed as the ideal single-viewer
monitoring solution. Featuring the latest OLED technology, this EVF provides an unmatched personal viewing
experience with a 1080p OLED micro-display, and improved color accuracy with 30-bit RGB color represenation.
View and monitor your RED footage as it is intended with truer colors and deeper blacks in a larger field of view.
Engineered with OBSOLESCENCE OBSOLETE
®
in mind, the DSMC2 RED EVF (OLED) is perfect for use with
WEAPON, SCARLET-W, RAVEN, EPIC, or SCARLET cameras. RED offers multiple mounting solutions for each
camera type.
WARNING: DO NOT point the DSMC2 RED EVF (OLED) eyepiece at direct sunlight. Continued exposure to direct
sunlight may damage the EVF. Point the eyepiece away from sunlight when not in use. Damage to the DSMC2
RED EVF (OLED) caused by continued exposure to direct sunlight is not covered under warranty.

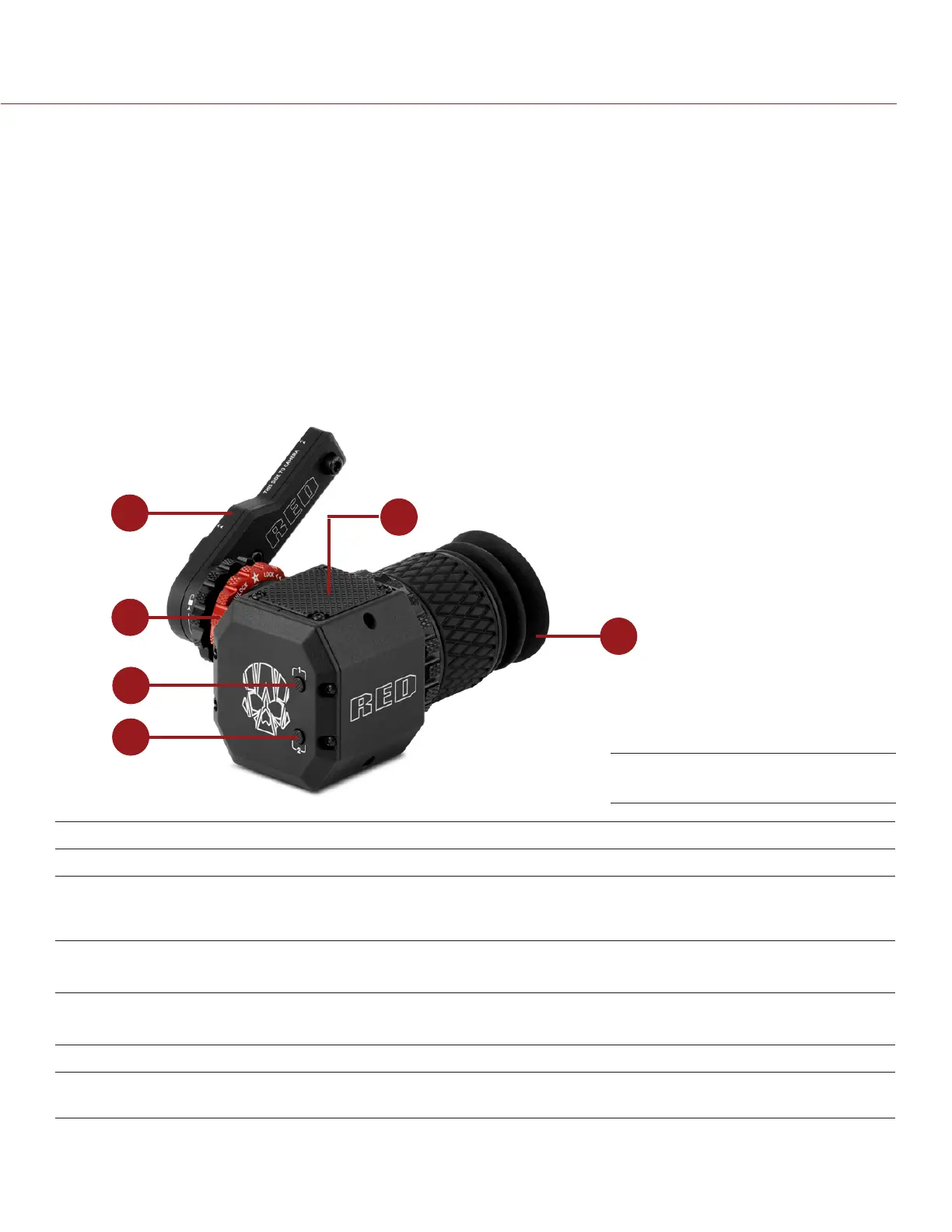

DSMC2 RED EVF FEATURES
1
6
2
3
4
5
# FEATURE DESCRIPTION
1 DSMC2 RED EVF Mount The DSMC2 RED EVF Mount
2 EVF connector
1
Custom digital video and power interconnection between the EVF and
other RED devices; Pinout not published; compatible with standard RED
EVF/LCD LEMO cables
3 Key 1 Programmable key
Magnify: Toggle
4 Key 2 Programmable key
Exposure Check: Toggle
5 Mounting point Mounting point for the DSMC2 RED EVF Mounting Plate (Top)
6 DSMC2 RED EVF
Modular Optical Block
Fully coated with a > 32° field of view
1. Not visible. Shown with the DSMC2 RED EVF Mount attached.
