BOMB EVFS
The BOMB EVF (LCOS) and BOMB EVF (OLED) deliver specialized viewing solutions for the camera. The BOMB
EVF (LCOS) is a high-definition, lightweight, and low-profile viewfinder. The BOMB EVF (OLED) uses OLED
technology, providing deeper blacks and more color accurate images.
ITEM CONTRAST RATIO DIOPTER RANGE
BOMB EVF (LCOS)
1
1000:1 typical 2.0 to –5.0.1
BOMB EVF (OLED)
1
>10,000:1 typical 2.0 to –5.0.1
1. Using these displays with a DSMC2 camera requires a DSMC2 LEMO Adaptor A.
WARNING: DO NOT point the BOMB EVF (OLED) eyepiece at direct sunlight. Continued exposure to direct
sunlight may damage the EVF. Point the eyepiece away from sunlight when not in use. Damage to the BOMB
EVF (OLED) caused by continued exposure to direct sunlight is not covered under warranty.

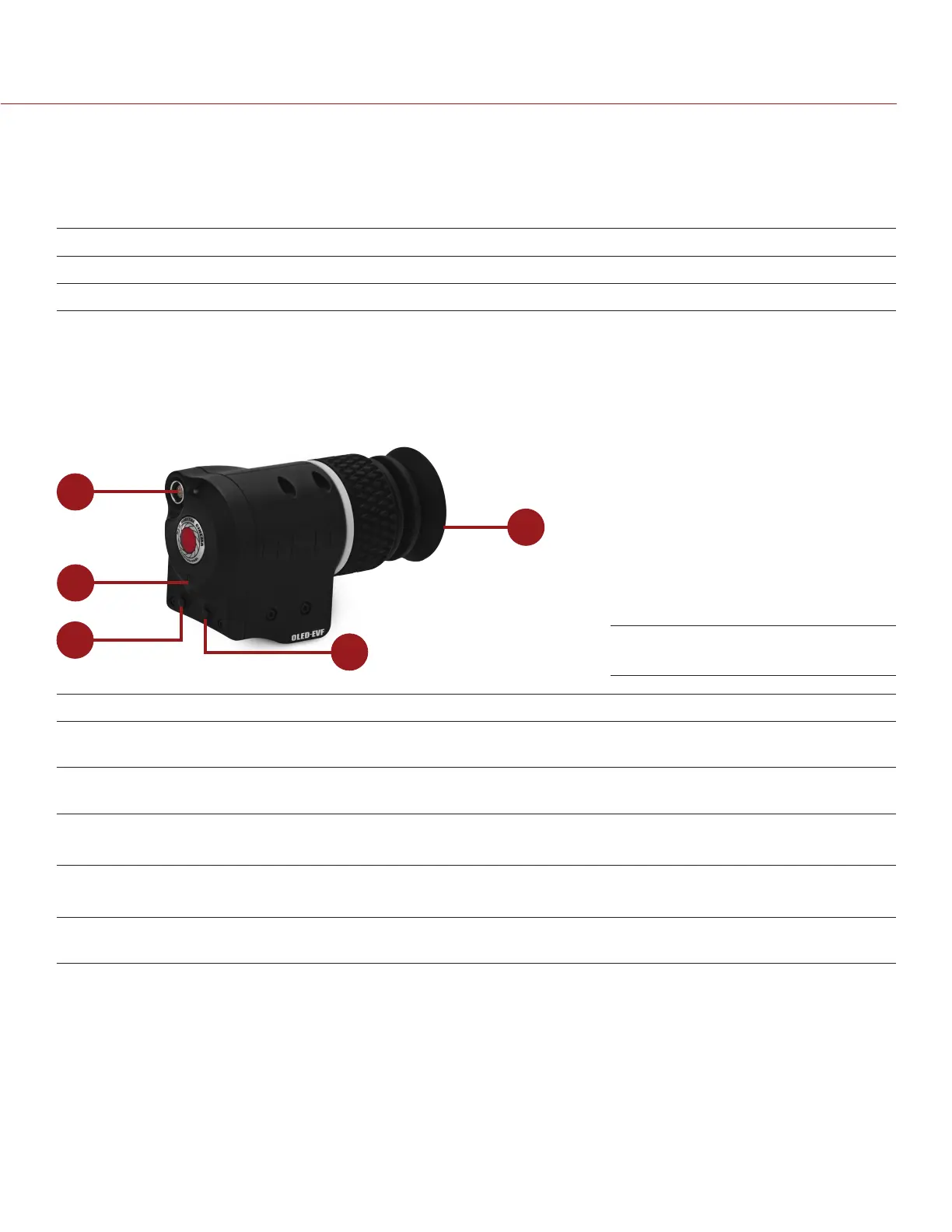

BOMB EVF FEATURES
1
5
2
3
4
# FEATURE DESCRIPTION
1 EVF connector Custom digital video and power interconnection between the camera and
RED EVF; Pinout not published
2 EVF Tally LED When enabled, the LED illuminates red when recording; For more information,
go to “Indicator” on page 87
3 Key 1 Programmable key
Magnify: Toggle
4 Key 2 Programmable key
Exposure Check: Toggle
5 Eyepiece heater The integrated eyepiece heater automatically heats the eyepiece when the
EVF detects a low ambient temperature
BOMB EVF (OLED)
