GENLOCK OFFSET
NOTE: HD-SDI ports are only available on select DSMC2 expanders. For more information, go to “Input/Output
Connectors” on page 167.
Offset the video of the HDSDI out to align it with the genlock signal:
Negative offset: Advances the video, so the video reaches the switcher earlier than it would otherwise.
Positive offset: Advances the video, so the video reaches the switcher later than it would otherwise.
LCD/EVF 2 / HDMI SELECT
NOTE: HDMI ports are only available on select DSMC2 expanders. For more information, go to “Input/Output
Connectors” on page 167.
Select to enable either the secondary LCD/EVF port on the camera or the HDMI port on an expander. The
secondary LCD/EVF port and the HDMI port cannot be used at the same time.
ALLOW OPEN GATE
Open Gate allows the camera to preview images at a refresh rate that is twice the project time base. For
example, if the project time base is 23.98 FPS or 24.00 FPS, enabling Open Gate causes the LCD or EVF to
have a refresh rate of 48 Hz (50 Hz).
NOTE: You cannot use Open Gate when:
Varispeed is enabled.
Speed Ramp mode is enabled.
Genlock is enabled.
The shutter angle is 180° or greater.
NOTE: When you disable Open Gate mode, the image on the EVF may be disrupted for up to three (3) seconds.
MODES
Use the Modes menu to determine how the following settings display:
Camera
Lens

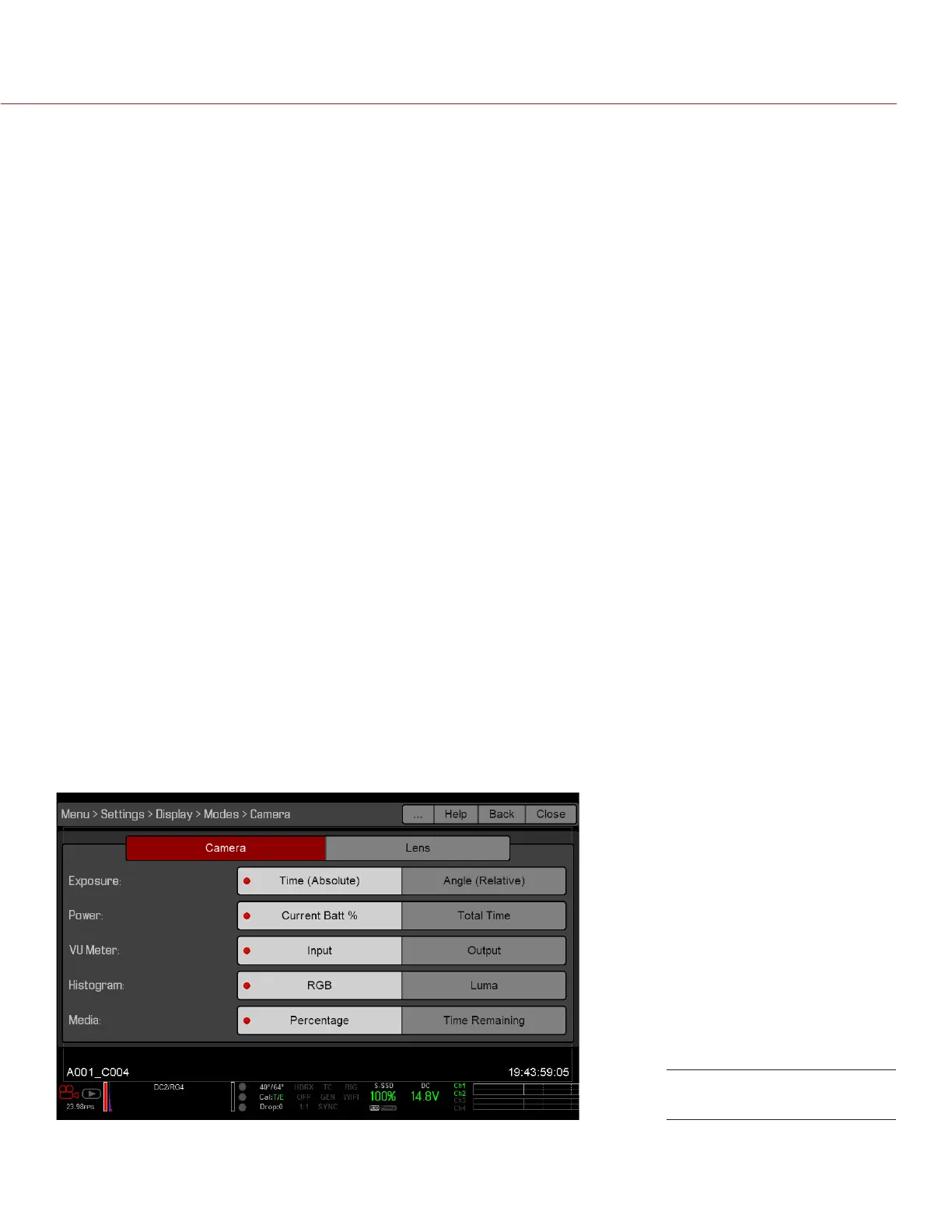

CAMERA TAB
Display Mode: Camera
To Next Page
