FAN AND TEMPERATURE MANAGEMENT

The camera is controlled by complex thermal algorithms to ensure that the sensor and camera operate at safe

temperatures. Each fan control mode affects the sensor temperature, sensor warm-up time, fan speed, and

resulting fan noise.

When selecting a fan mode, first take into consideration how each fan mode behaves, and then select a fan

mode that fits the needs of your project.

Regardless of sensor type and fan mode, you will get the best image quality by performing a black shading

calibration at the temperature you want to use for your shoot.

FAN CONTROL MODES

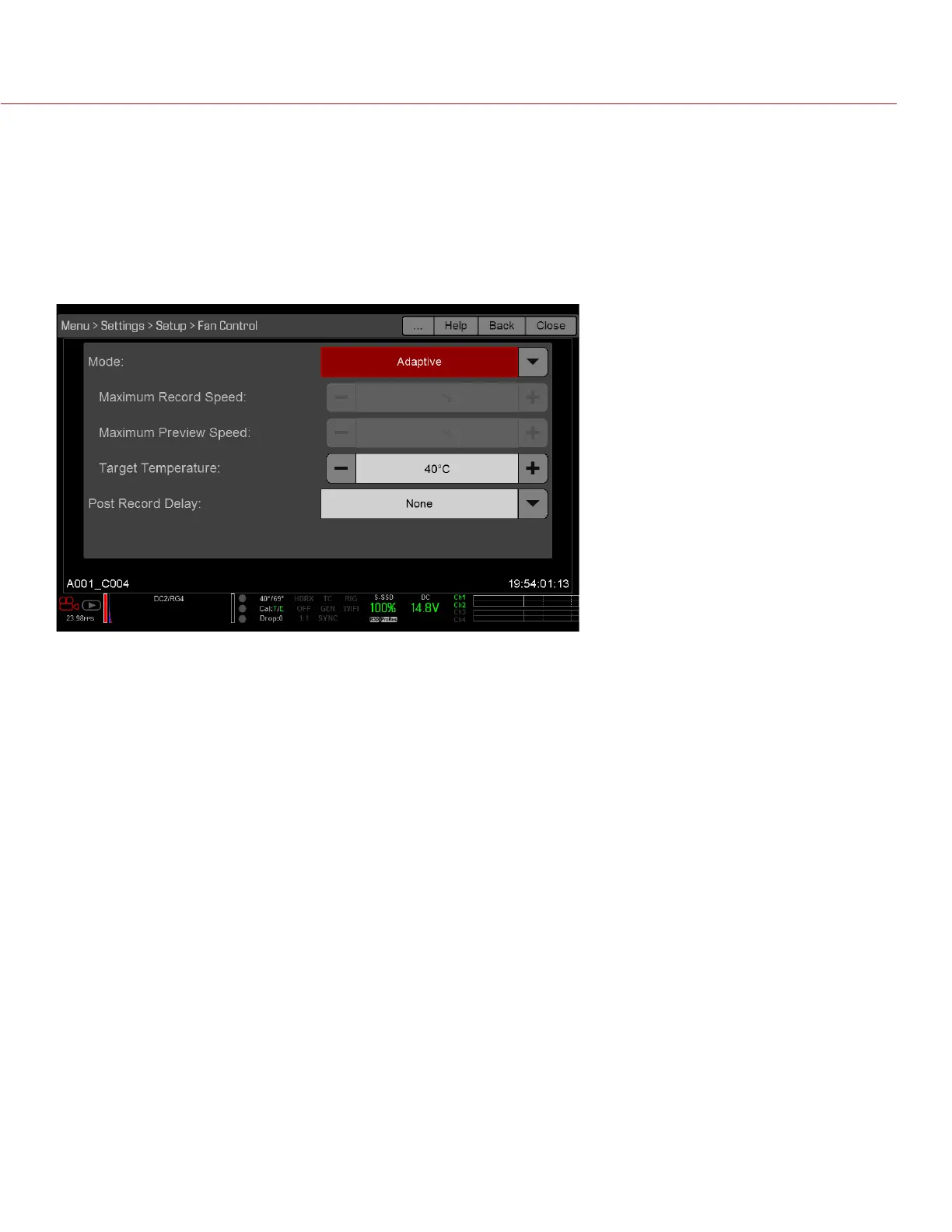

Select a fan control mode.

NOTE: After selecting a new fan setting, run the camera until the core temperature stabilizes, and then perform

a black shading calibration.

NOTE: Manual mode requires that you actively manage the sensor temperature, because this mode focuses on

controlling fan speed and does not target a narrow sensor temperature range. Use the T/E status indicators as

guides for proper temperature calibration.

NOTE: Maximum speeds are intended as target speeds only; actual fan speeds may be higher at times due to

long recording times or high ambient temperatures.

ADAPTIVE (TARGET TEMPERATURE)

Adaptive is the default mode for the camera.

Select a Target Temperature and the fans self-adjust to maintain the selected temperature. The default Target

Temperature is 39°C. After the camera reaches the Target Temperature, and if the ambient temperature remains

constant, Adaptive mode results in a consistent fan speed and fan noise over time.

Targeting a higher temperature raises the sensor temperature, lengthens the sensor warm-up time, and lowers

the fan speed. Targeting a lower temperature lowers the sensor temperature, shortens the sensor warm-up

time, and increases the fan speed.

NOTE: The intent of Target Temperature is to set the sensor temperature so that you can then create a calibration

map for that temperature.

NOTE: When the camera turns on, the Target Temperature is the temperature of the current calibration map,

regardless of what the Target Temperature was before you turned off the camera. Setting a calibration map also

overrides the Target Temperature. For more information, go to “Sensor Calibration” on page 100.
