Reer MOSAIC MI8O4C User Manual

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
108 8540780 • 25/01/2023 • Rev.43
english

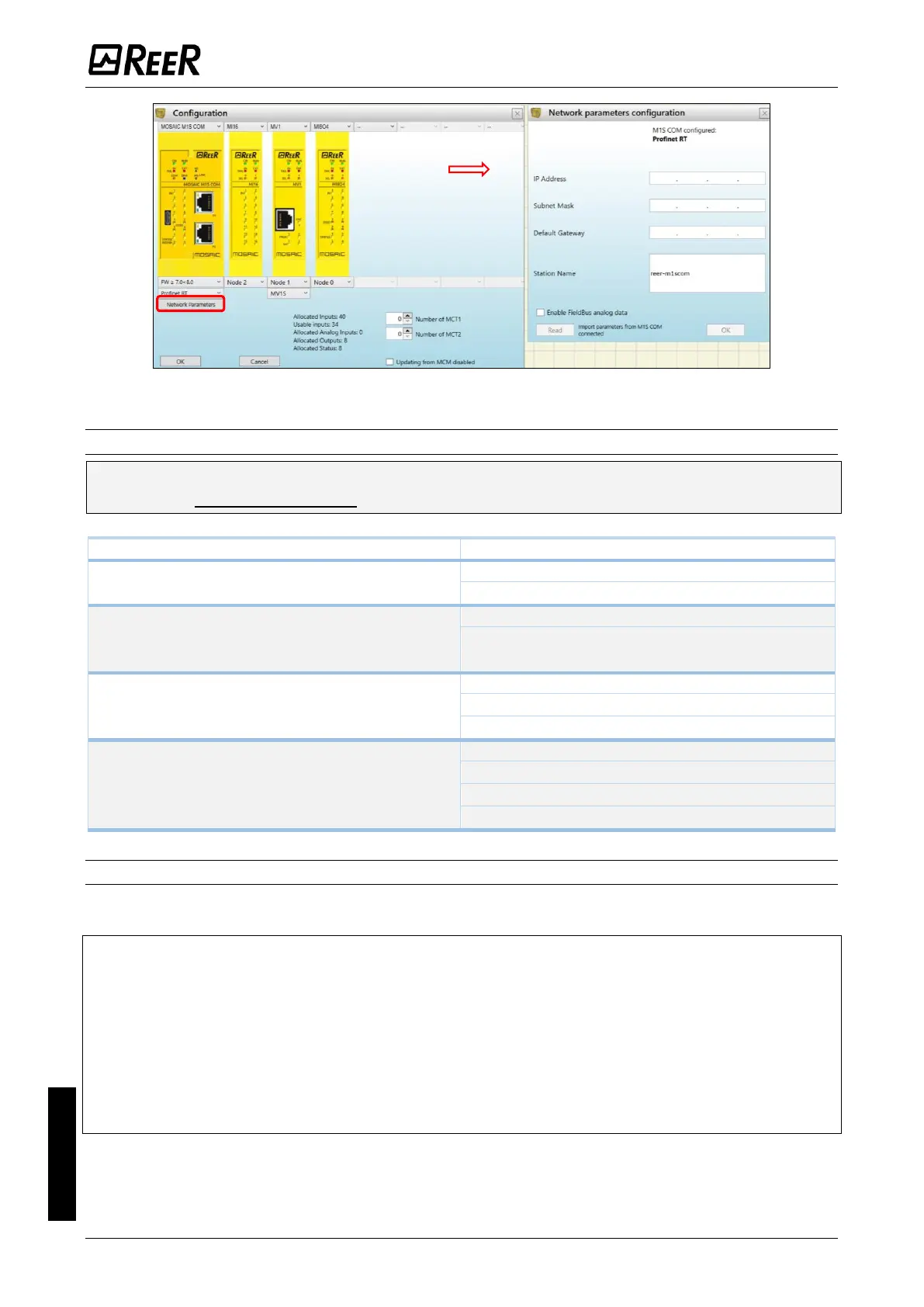

Figure 66
Configuration in Profinet RT developing environment
➔
To integrate MOSAIC M1S COM in Profinet RT developing environment, the configuration of the
modules must follow the order of the following table.
SCENARIO
CONFIGURATION ORDER
No analog or speed data transmitted
Fieldbus Input
System I/O
Transmission of analog data only
Fieldbus Input
System I/O
Analog Data
Transmission of speed data only
Fieldbus Input
System I/O
Speed Data
Transmission of analogue and speed data
Fieldbus Input
System I/O
Analog Data
Speed Data
EtherCat parameters
When MOSAIC M1S COM has to be connected with EtherCat fieldbus the necessary
network parameters will be set directly by the EtherCat Master.
➔
"Enable FieldBus analog data" will activate the transmission of MA2/MA4 analog data.
➔
Please note that the selection of this tick is a function of the process map (if "Enable FieldBus
analog data" is selected, a process map with analog data must be used).
➔
Clicking on "Read" enables MSD to compile the network parameters by reading them from those
set on the connected MOSAIC M1S COM master. The required parameters must be those of the
currently loaded fieldbus. For example, if the connected module is ModBus TCP and you try to
read the network parameters by setting Profinet RT as "Configuration" then reading will not be
enabled.
Pressing the
"Network Parameters"
button the user can
choose the network
configuration
