Parameters
Store output status: If selected, it stores the output status of the Flip-flop in non-volatile
memory every time it is changed. When the system is turned on, the last stored value is
restored.
➔
Some limitations to the use of this storage. The maximum time required for a single storage is
estimated at 50ms and the maximum number of possible storages is set at 100000.
➔
The total number of storages must not exceed the set limit, otherwise the operational life of the
product will be reduced, and the frequency of such storages must be sufficiently low to enable
them to be stored safely.

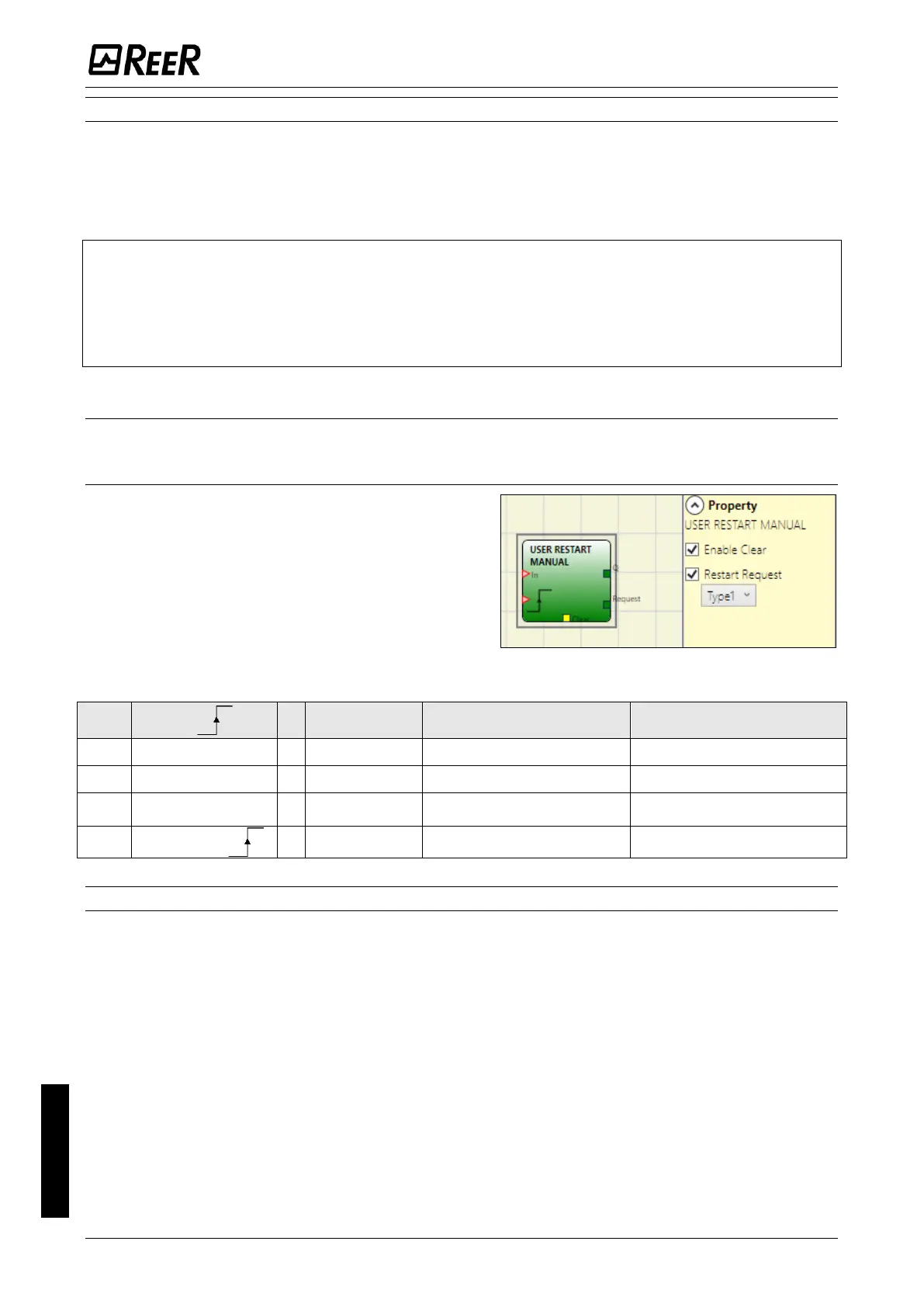

USER RESTART MANUAL
(max number = 16 with MOSAIC M1, 32 with MOSAIC M1S, MOSAIC M1S COM with
other RESTART operators)
The USER RESTART MANUAL operator saves the
restart signal (coming from a RESTART command
device) according to the following truth table.
Clear
Restart
In
Q
Restart Request Type 1
Restart Request Type 2*
1
X
X
0
0
1
X
X
0
0
0
1
0
0
1
Keep Memory
1
Blinking
1Hz
0
Rising Edge
1
1
0
0
Parameters
Clear enable: If selected, enables an input to reset the memorization.
Restart request: If selected, it enables an output that can be used to signal the possibility
of performing the Restart. The behaviour can be of type 1 or type 2 (type 2 only with
MOSAIC M1S, MOSAIC M1S COM) as represented in the truth table.
* Restart Request Type 2 uses a system timer
