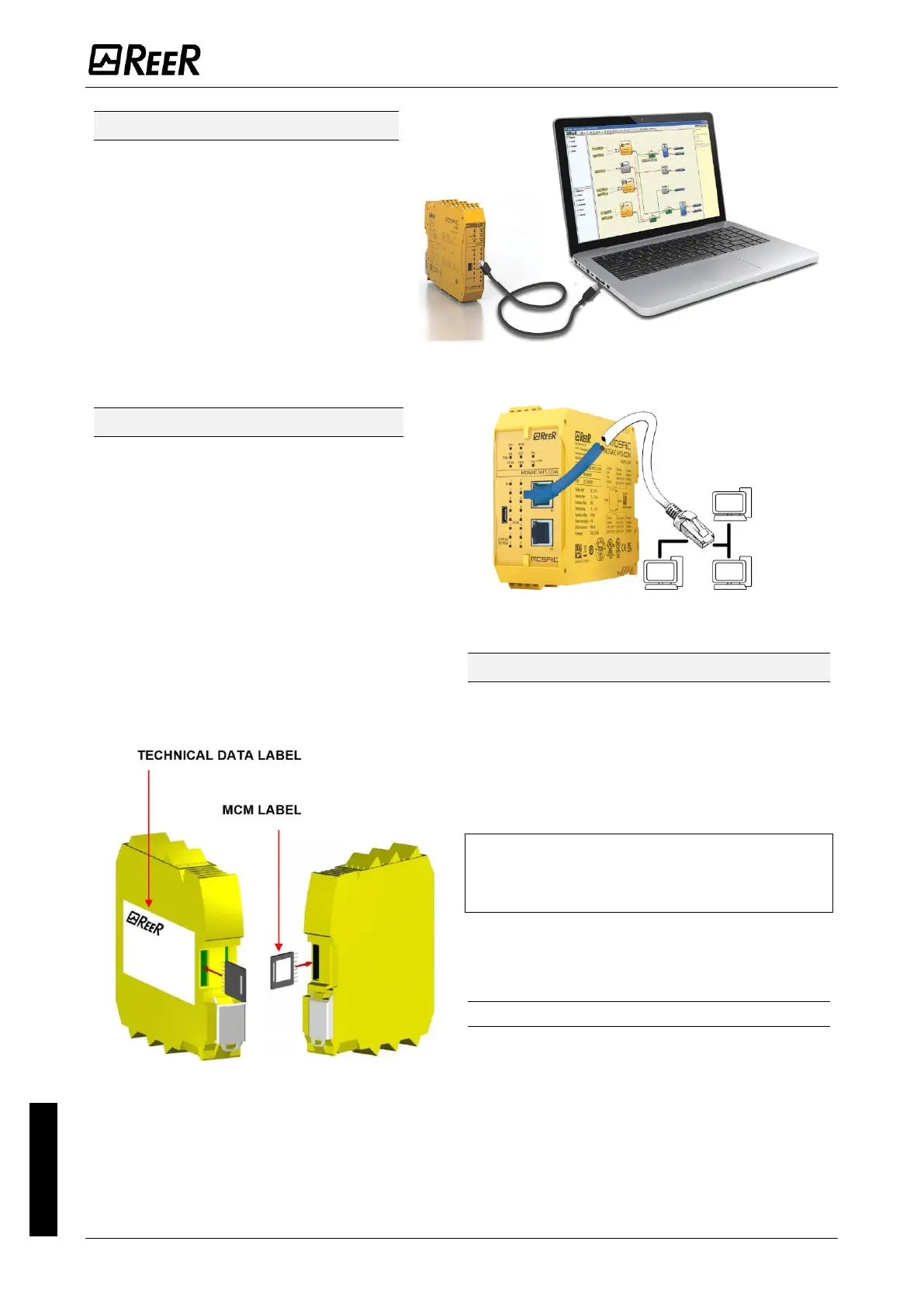

USB interface
The MOSAIC master MOSAIC M1,
MOSAIC M1S, MOSAIC M1S COM
include a mini-USB 2.0 (USB-C for
MOSAIC M1S, MOSAIC M1S COM)
connector for connection to a
Personal Computer where the MSD
(MOSAIC Safety Designer)
configuration SW resides.
A USB cable of the correct size is
available as an accessory (CSU for
MOSAIC M1, CSU-C for MOSAIC M1S,
MOSAIC M1S COM).
Figure 4 - USB 2.0 front panel connector
LAN interface (RJ45)
The MOSAIC master MOSAIC
M1S COM include double RJ45
connectors for connection to a
Personal Computer via TCP/IP LAN
network.
Figure 5 - RJ45 front panel connector
Figure 6 - MCM
MOSAIC Configuration Memory (MCM)
A backup memory, called MCM (optional)
can be installed in the MOSAIC master
MOSAIC M1, MOSAIC M1S,
MOSAIC M1S COM and used to save the SW
configuration parameters.
The MCM is written each time a new project
is sent from the PC to the MOSAIC M1.
➔
Always switch the MOSAIC M1,
MOSAIC M1S, MOSAIC M1S COM off before
logging on to/logging off from the MCM.
Insert the card in the slot in the rear panel
of the MOSAIC M1, MOSAIC M1S,
MOSAIC M1S COM (in the direction shown
in Figure 6 - MCM)
MULTIPLE LOAD function
To perform the configuration of several
master modules without using a PC and the
USB connector, you can save the desired
configuration on a single MCM and then
use it to download data on the masters
modules to be configured simply inserting
the MCM into the module and turning it on.
