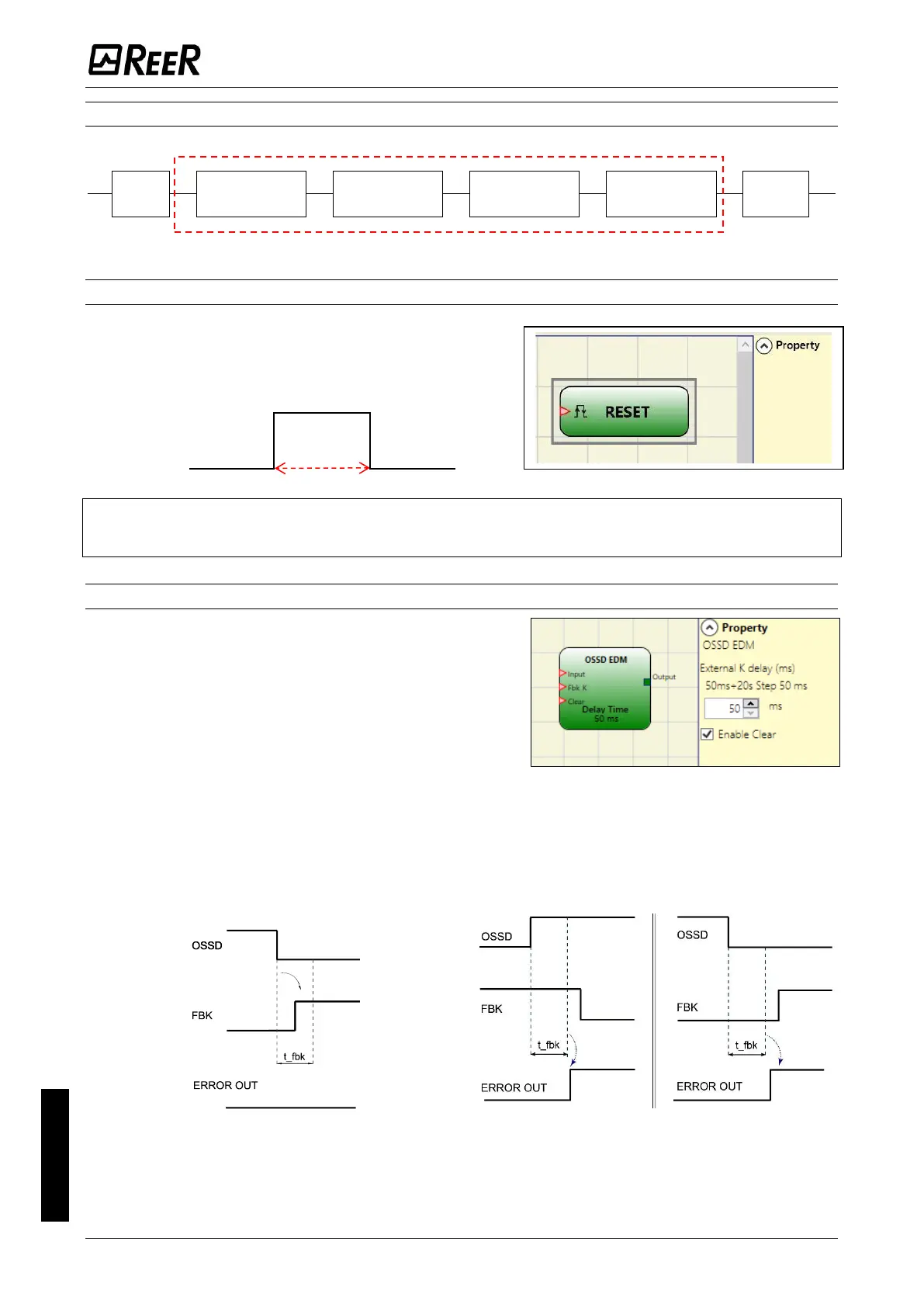

Logical block diagram of a safety function using the network
INPUT
MOSAIC M1 n°1
MOSAIC M1 n°2
MOSAIC M1 n°3
MOSAIC M1 n°4
OUTPUT
LOGIC (NETWORK)
RESET MOSAIC M1
This operator generates a system Reset when there
is a double OFF-ON-OFF transition on the
corresponding input which lasts less than 5 s.
t < 5s
➔
If > 5s, RESET is not generated.
➔
It can be used to reset faults without disconnecting system power.
OSSD EDM (MOSAIC M1S / MOSAIC M1S COM, max number = 32)
The OSSD EDM (External Device Monitoring)
operator allows to control an EDM feedback related
to a safety output using a generic Mosaic input.
The Output can only be connected to one safety
output functional block (OSSD, single OSSD, Relay).
This output functional block must have the K
external time monitor deactivated.
• OSSD output connected downstream is at high level (TRUE) -> the Fbk_K signal must be at low
level (FALSE) (within the set delay) and vice versa.
• If the delay is not respected, the Output of the OSSD EDM block goes to low level (FALSE) and the
anomaly is signaled by the flashing of the CLEAR led corresponding to the OSSD in error.
If Enable Error Out of the connected output is selected, this output is set to high level
(TRUE) when an external FBK error is detected (example: exceeded the external time K).
Example of OSSD with correct Fbk signal:
In this case ERROR OUT=FALSE
Example of OSSD with incorrect Fbk signal
(External K delay exceeded):
In this case ERROR OUT=TRUE
t
IN
