Upload an existing project to PC (from MOSAIC)
To upload a project from MOSAIC M1, MOSAIC M1S, MOSAIC M1S COM to MSD use the
icon on the Standard toolbar. MSD will display the project residing in MOSAIC M1,
MOSAIC M1S, MOSAIC M1S COM . (Level 1 password is enough).
âž”
If the project must be used on other mosaic system verify the modules effectively connected (ref.
"System composition" on page 125).
âž”
Then perform a "Project Validation" (page 113) and a "Testing the System"
(page 131).
âž”
In this phase, MSD (version 1.9.0 and higher) reads the original msx file contained in
MOSAIC M1S, MOSAIC M1S COM, with the blocks, comments, etc. (as drawn by the designer).

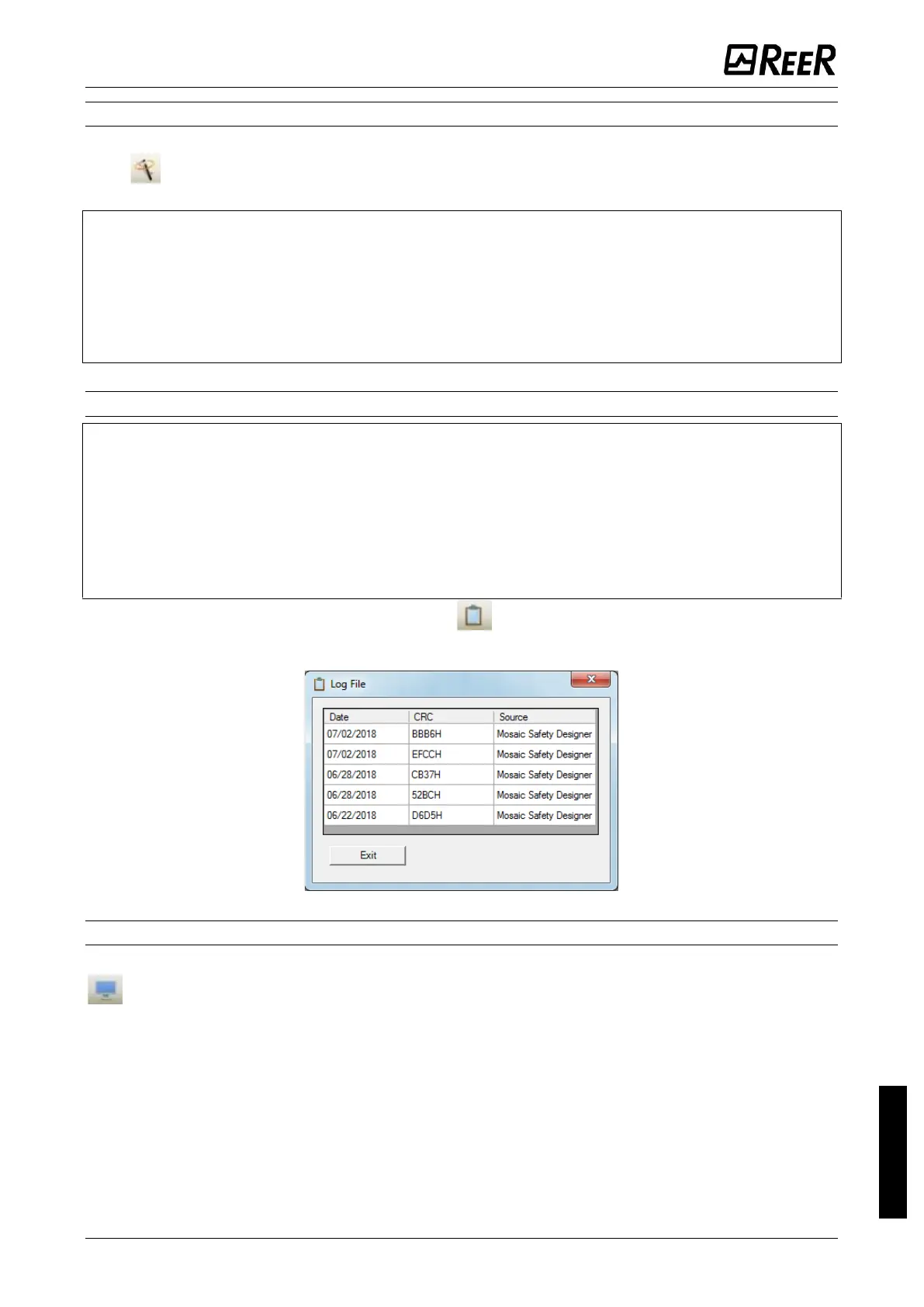

Configurations LOG
âž”
Within the configuration file (project), are included the creation date and CRC
(4-digit hexadecimal identification) of a project that are stored in MOSAIC M1, MOSAIC M1S,
MOSAIC M1S COM.
âž”
If MOSAIC M1S, MOSAIC M1S COM is used, it is also indicated whether the schematic was loaded
via MSD or via MCM memory
âž”
This logbook can record up to 5 consecutive events, after which these are overwritten, starting
from the least recent event.
The log file can be visualized using the icon in the standard tool bar.
(Password Required: level 1).
Figure 92
System composition
The check of the actual composition of the MOSAIC system is obtained using the icon
. (Password Required: level 1). A pop-up window will appear with:
- Connected modules;
- Firmware version of each module;
- Node number (physical address) of each module.
