SMART-Sensor Expansion Board (SSX)
USER GUIDE
SMART-NET NETWORK TOPOLOGY
SMART-SENSOR
™
 2004 – 2014 Reliable Controls
®
Corporation. All rights reserved.
The following diagram shows the optimal configuration for one SSX connected to a MACH-
ProSys
™
controller with the maximum of 16 connected SSs.

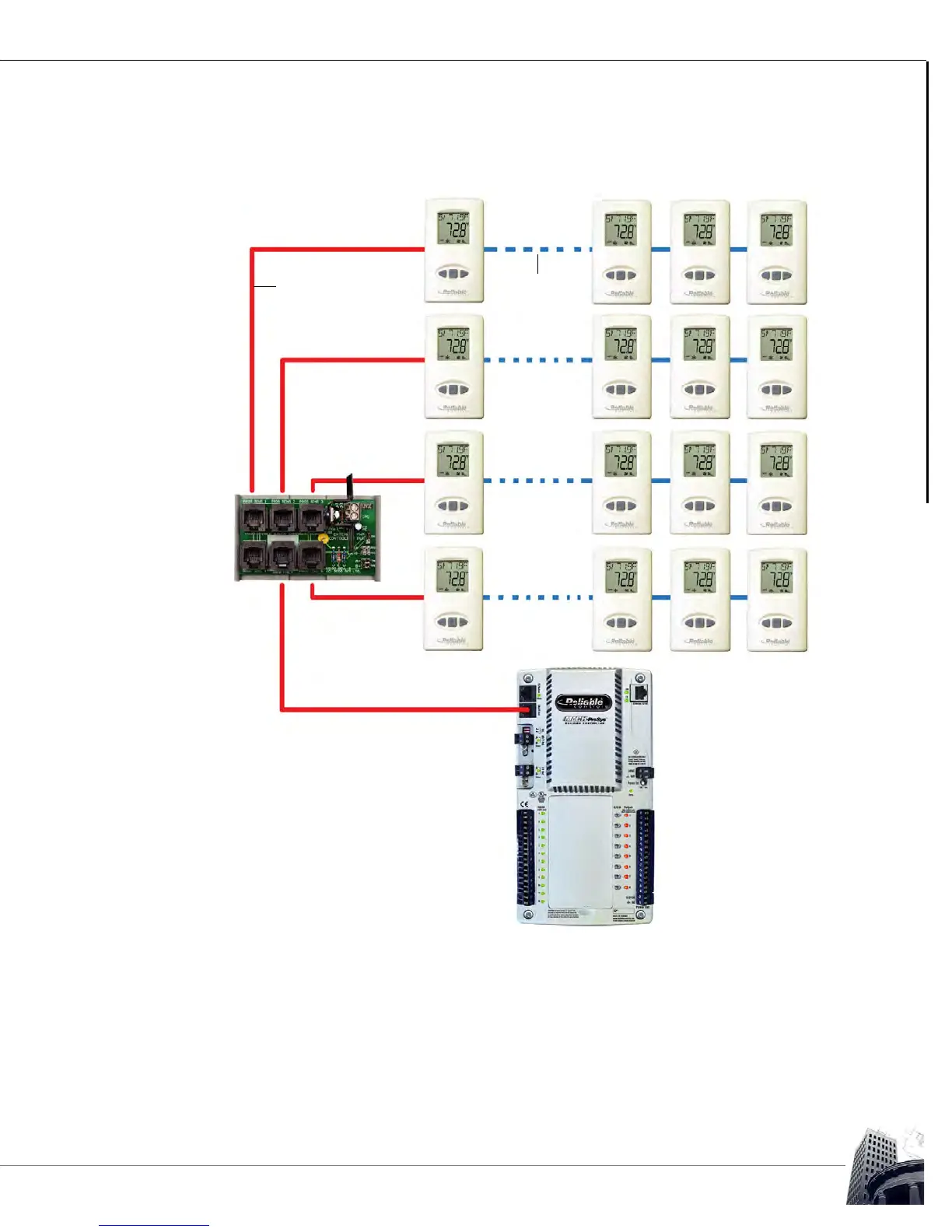

FIGURE 22: FULLY-LOADED SMART-NET
™
WITH 16 SS-LS AND ONE SSX
SS-Ls
SSX
MACH-ProSys
™
rollover SS-VCs
straight through
SS-DCs
