SS-DUCT MODELS
TO MOUNT THE SS-DUCT MODEL
1 Drill a 3/8" hole in the duct and insert the probe through the hole until the foam
pad is tight to the duct.
2 Insert the included one-inch (#8) sheet metal screws (2) through the mounting
holes in the flange and tighten them until the unit is held firmly to the duct.

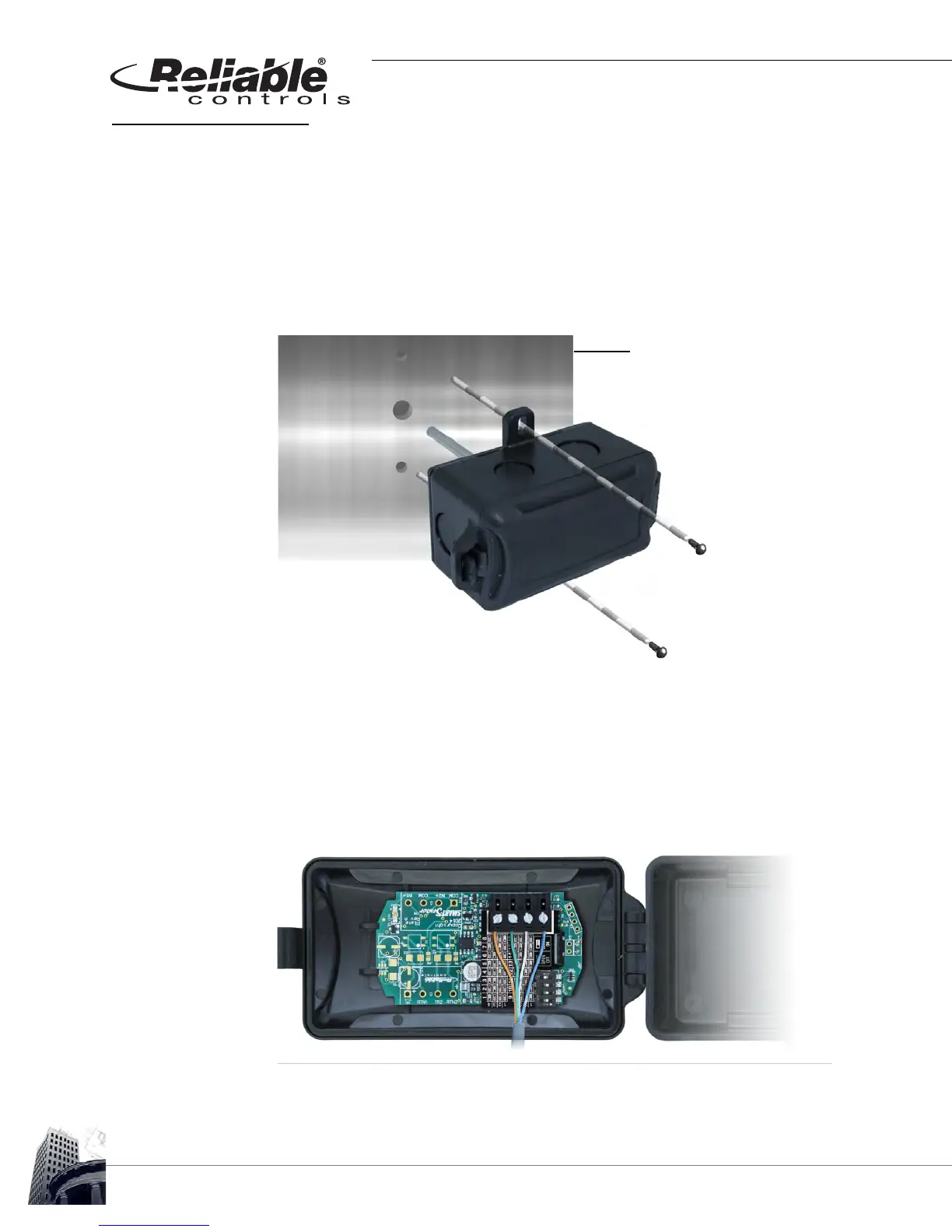

FIGURE 32: MOUNTING AN SS-DUCT
TO TERMINATE THE CABLING FOR THE SS-DUCT MODEL
1
Terminate the SMART-Net
™
communication cable conductors to the SS-DUCT
using the 4-pole terminal strip.
2 Attach the cover plate to the SS-DUCT.
FIGURE 33: TERMINATE THE CABLING FOR THE SS-DUCT
Duct
