WIRING BETWEEN SMART-SENSORS
After the first SS, straight-through Data Cables (SS-DC) cables are used for connecting
additional SSs to the SMART-Net
™
using a daisy-chain topology. Either the terminal block
or RJ11 socket may be used to terminate the SMART-Net
™
at each SS.

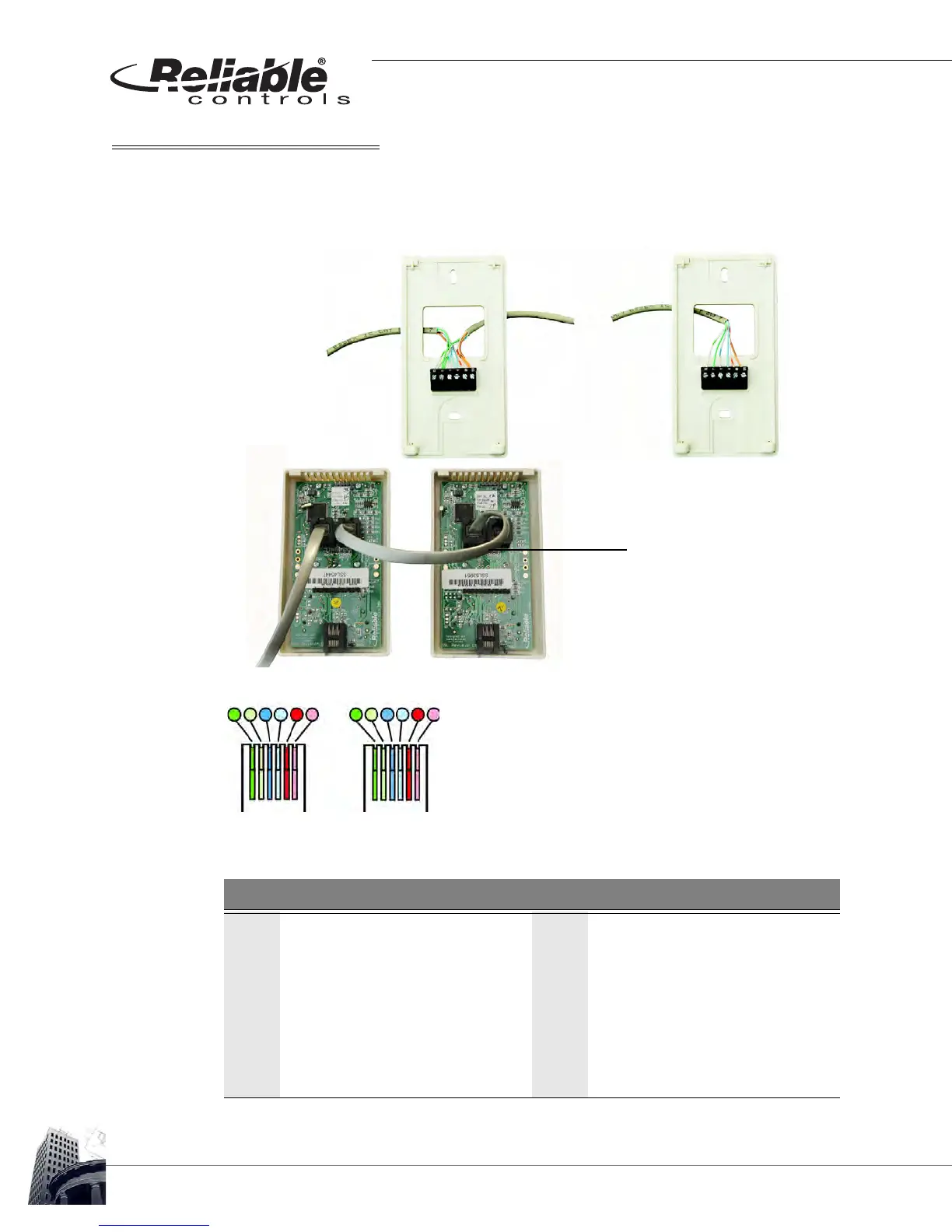

FIGURE 41: CABLING FROM SS TO ADDITIONAL SSS
FIGURE 42: RJ11 PIN-OUT BETWEEN TWO SSS
TABLE 7: DATA CABLE (SS-DC) STRAIGHT THROUGH CABLE PIN-OUT
SMART-Sensor
™
SMART-Sensor
™
1 Data 1 Data
2 GND 2 GND
3 B 3 B
4 A 4 A
5 +5 VDC 5 +5 VDC
6 Clock 6 Clock
Straight-through data cable
SS-DC
6
5
4
3
2
1
6
5
4
3
2
1
