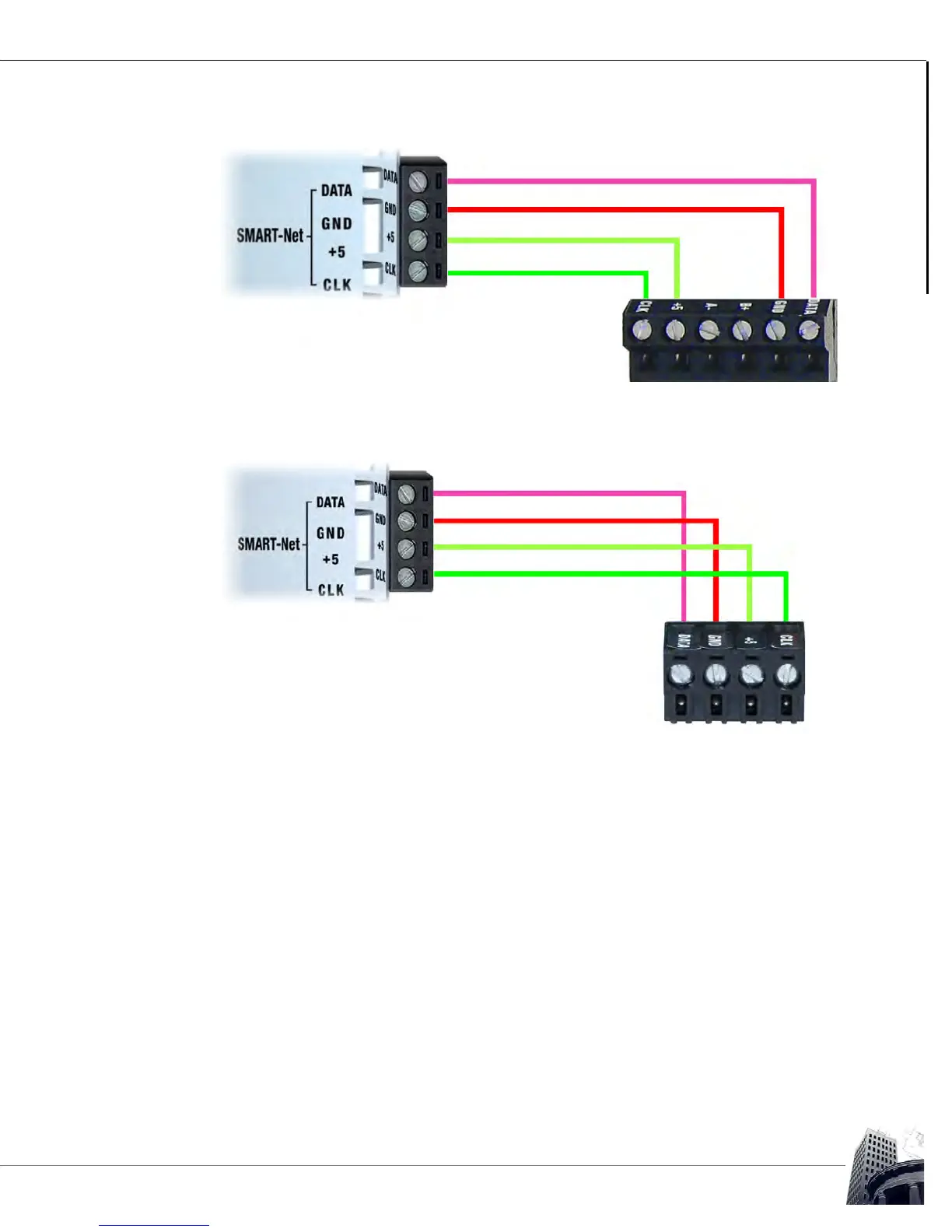

FIGURE 39: MACH-PROAIR
™
CABLING TO AN SS
F
IGURE 40: MACH-PROAIR
™
CABLING TO AN SS-DUCT
For MACH-ProAir
™
and MACH-ProZone
™
controllers, a 4-pole terminal block is provided in
addition to the standard RJ11 connector. Either of these methods can be used for SMART-
Net
™
wiring. Note that the terminal block does not include terminals for the A and B EIA-
485 conductors. If the EIA-485 network must be run to SMART-Sensors
™
to facilitate PC
connection at SMART-Sensors
™
, then the additional two conductors must be terminated
at the controller's EIA-485 terminal block.
MPA SMART-Net Connector
SS SMART-Net Connector
MPA SMART-Net Connector
SS-DUCT SMART-Net Connector
