Operator Interface for the SS-L
USER GUIDE
OPERATOR INTERFACE
SMART-SENSOR
™
 2004 – 2014 Reliable Controls
®
Corporation. All rights reserved.
OPERATOR INTERFACE FOR THE SS-L
The SMART-Sensor
™
LCD (SS-L) allows for the display and adjustment of ten point values
from its SMART-Net host, which can be any Reliable Controls
®
MACH-System controller
except a SMART-Space Controller (SSC). The SMART-Space controller does not support
SMART-Net.
An SS-L can display points from networked controllers other than its SMART-Net host,
however those points cannot be adjusted by an operator using the SS-L buttons. If the
SMART-Net host is a BACnet only device (e.g., MACH-ProZone, MACH-ProAir), then any
network points to be displayed must be entered using BACnet references. If the SMART-
Net host supports Reliable Controls Protocol (RCP), then any network points to be
displayed must be entered using RCP references.
Navigation through the configured LCD display screens and operator interaction with the
point values are both performed using the custom silicone rubber three button keypad.
The standard functionality of the buttons is outlined in Table 8.

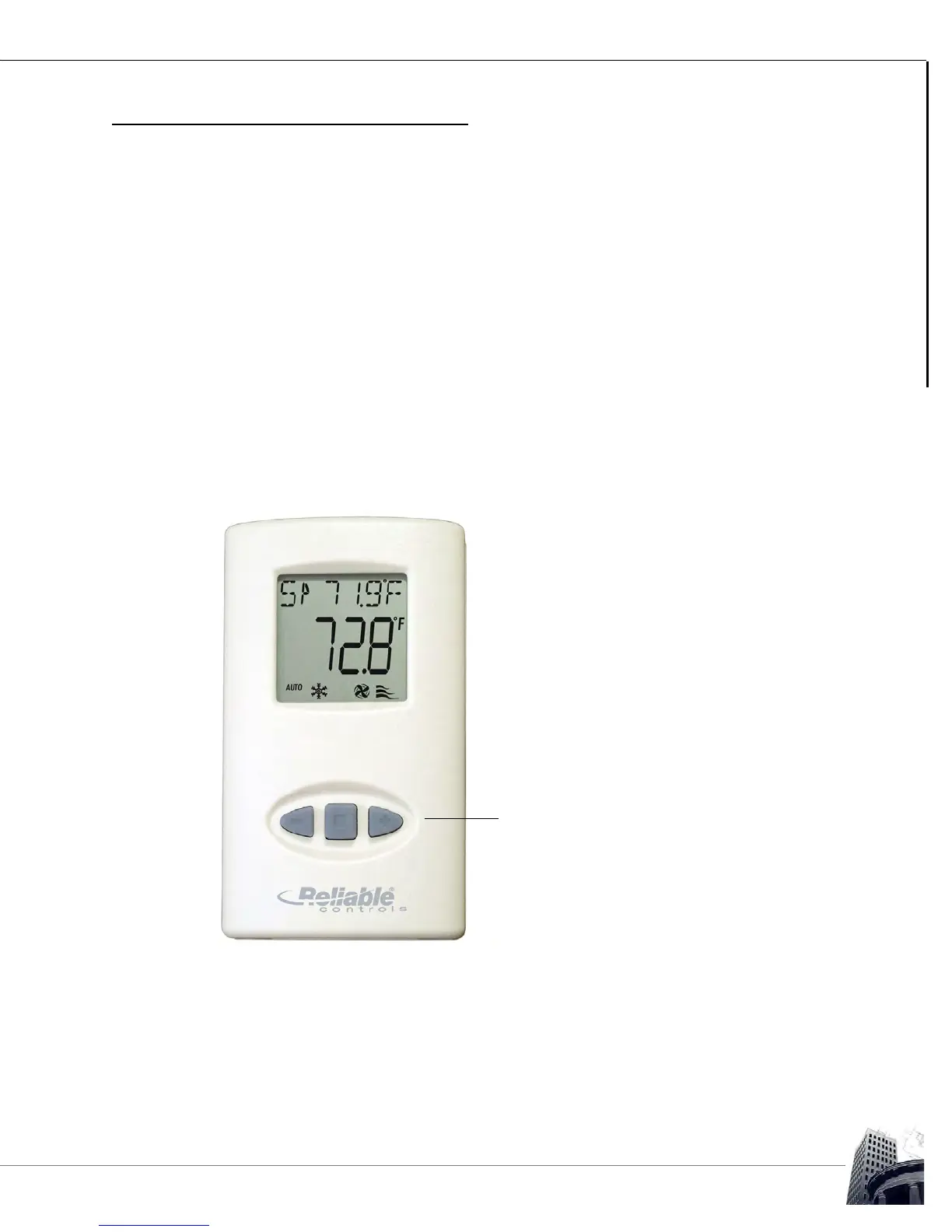

FIGURE 50: SSL THREE-BUTTON KEYPAD
Three-button keypad
