TO DISASSEMBLE THE SS
1
Use a
1
/16” Allen key to tighten (clockwise) the two Allen screws at the bottom of
the controller. This is counterintuitive but works by moving the Allen screws
inward and out of the way of the sensor head.

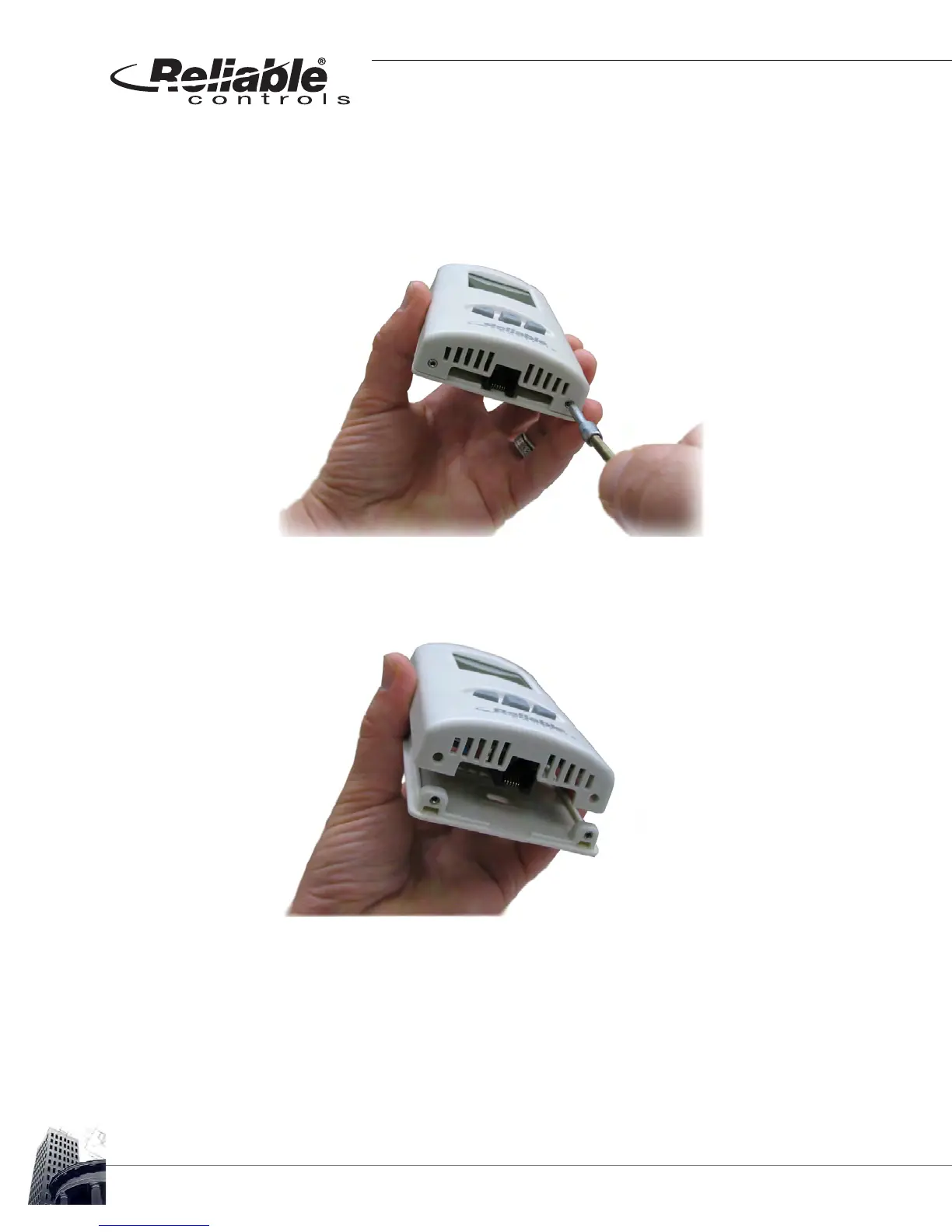

FIGURE 26: ALLEN KEY
2 Pull the bottom of the sensor head out and away from the backplate then
straight up toward the top of the SS.
FIGURE 27: CONTROLLER HEAD SEPARATION
