Reliant SUPER ROBIN - Page 14

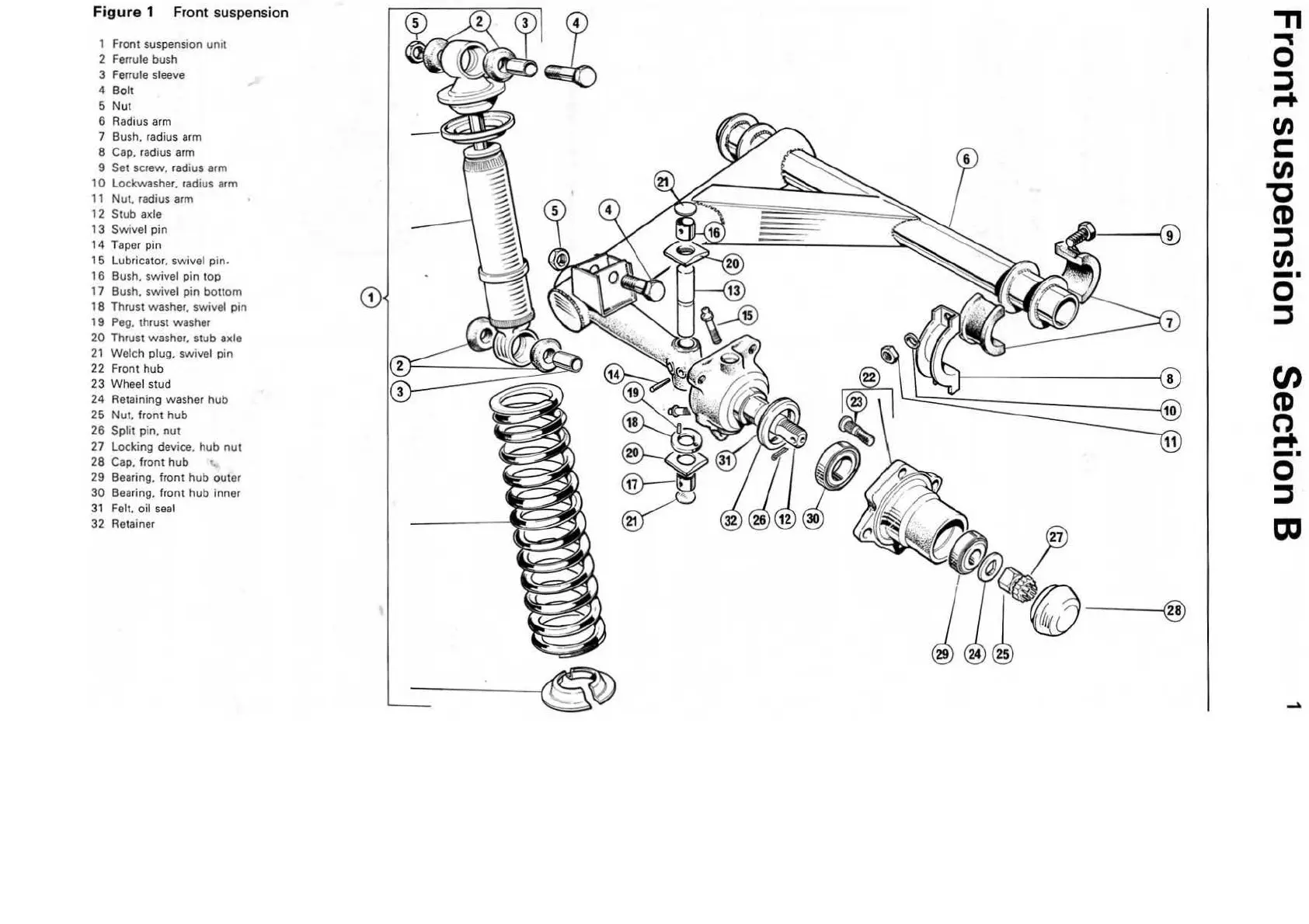

Figure 1 Front suspension
1 Front suspension un1t
2 Ferrule bush
3 Ferrule sleeve
4 Bolt
5 Nut
6 Radius arm
7 Bush. radius arm
8
Cap. radius arm
9 Set screw. rad ius arm
1 0 Lockwasher. radius arm
11 Nut. radius arm
12 Stub axle
1 3 Swivel pin
14 Taper pin
1 5 Lubricator. swivel pin.
1 6 Bush. swivel pin top
1 7 Bush. swivel pin bottom
18 Thrust washer. swivel pin
1 9 Peg. thrust washer
20 Thrust washer. stub axle
21 Welch plug. swivel pin
22 Front hub
23 Wheel stud
24 Retaining washer hub
25 Nut. front
hub
26 Split pin, nut
27 Locking device. hub nut
28 Cap. front hub •
29 Bearing. front hub outer
30 Bearing. front hub inner
31 Felt. oil seal
32 Retainer
