Robin
810
Workahop Manual
Supplement
The
body
Section
0
1
Side door
added, secured
by
the existing hinge
to
door
fixings, i.e. set screws and shakeproof
wa
sher
s.
With
the
introduction
of
the Robin
850
the
following
modifications have been made to
the
side
door
mountings (see
Figure1)
.
The hinge support brackets
RH
and LH have
been strengthened by the addition
of
welded
gussets and modified by the addition
of
a weld
nut
providing an e
xt
ra
lower
fix
ing
to
the
frame. The backing plate for the hinge
to
the door h
as
been modified by the addition
of
a welded
stiffening plate.
A stiffening plate has been added to the fixing
of
the hinge plate and support bracket to
An
additional plate, hinge to
door
,
ha
s been
the body.

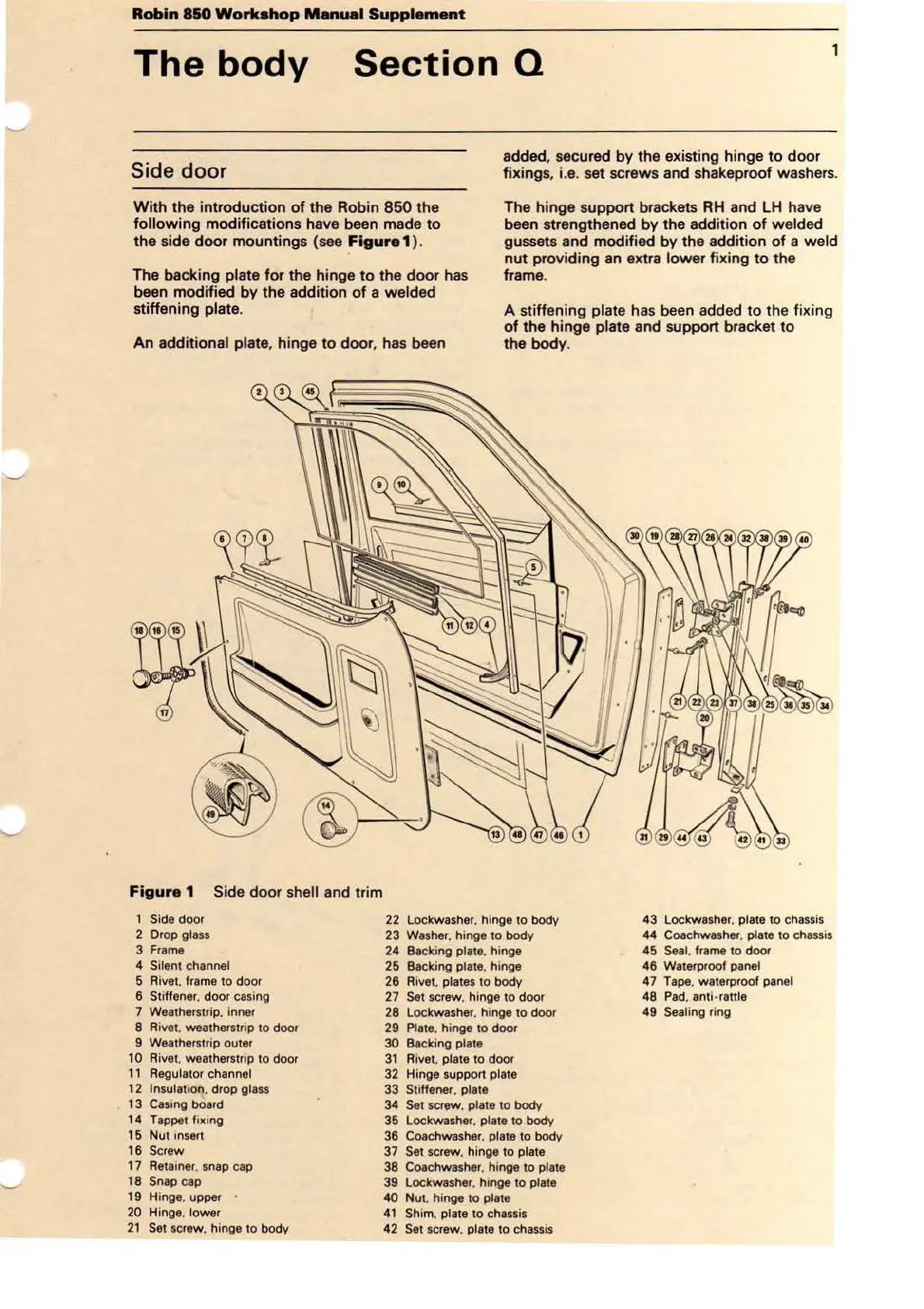

Figure
1 Side do
or
shell and trim
1 Side door
2 Drop glass
3
Frame
4 Silent channel
5 Rivet. frame
to
door
6 Stiffener. door casing
7 Weatherstrip. inner
8 Rivet. weatherstrip to door
9 Weatherstrip outer
10
Rivet. weatherstrip to door
11
Regulator channel
12 Insulation. drop glass
1 3
Cas
ing board
14 Tappet fuung
16
Nut1nsen
16 Screw
17
Retamer. snap cap
18
Snap cap
1 9 Hinge, upper
20 Hinge. lower
21
S
et
screw. hinge to body
22
Lockw
as
h
er
. hinge to body
23 Washer. hinge to body
24
Backing plate. hinge
26 Backing plate. hinge
26 Rivet. plates
to
body
27
Set screw. hinge
to
door
28 Lockwasher. hinge
to
door
29 Plate. hinge to door
30 Backing plate
31
Rivet. plate to door
32 Hinge support plate
33 Stiffener. plate
34
Set screw. plate
to
body
35 Lockwasher. plate
to
body
36 Coachw
asher.
plate to body
37
Set screw. hinge
to
plate
38 Coachwasher. hinge
to
plate
39 Lockwasher. hinge to plate
40 Nut.
hi
nge
to
plate
41
Shim. plate to chassis
42
Set
screw. plate to ch
ass
is
43 Lockwasher. plate
to
chass
is
44 Coachwasher. plate
to
chassis
45
Seal
. frame
to
door
46 Waterproof panel
47 Tape. waterproof panel
48 Pad. antl-ranle
49
Sealing ring
