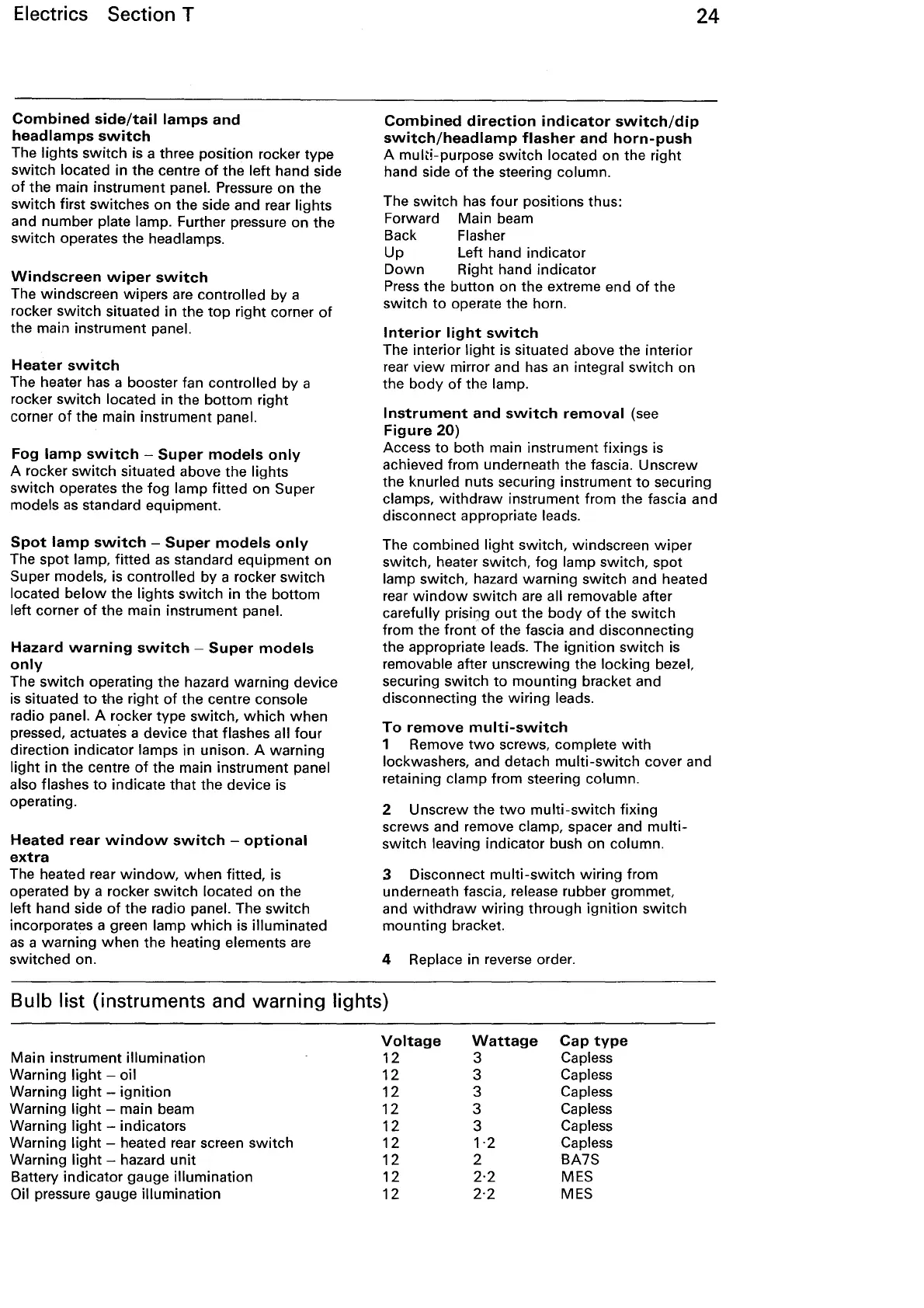

Electrics Section T
Combined
side/tail
lamps
and
headlamps
switch
The lights
switch
is a three position rocker type
switch
located in the centre
of
the left hand side
of
the main instrument panel. Pressure on the
switch
first switches on the side and rear lights
and number plate lamp. Further pressure on the
switch operates the
headlamps.
Windscreen
wiper
switch
The windscreen wipers are controlled by a
rocker
switch
situated in the
top
right corner
of
the main instrument panel.
Heater
switch
The heater has a booster fan controlled by a
rocker
switch
located in the bottom right
corner
of
the main instrument panel.
Fog
lamp
switch
-Super
models
only
A rocker
switch
situated above the lights
switch operates the fog lamp fitted on Super
models
as
standard equipment.
Spot
lamp
switch
-
Super
models
only
The spot lamp, fitted
as
standard equipment on
Super models, is controlled by a rocker
switch
located
below
the lights
switch
in the
bottom
left corner
of
the main instrument panel.
Hazard
warning
switch
-
Super
models
only
The
switch
operating the hazard warning device
is situated
to
the right
of
the centre console
radio panel. A rocker type switch,
which
when
pressed, actuates a device that flashes all
four
direction indicator lamps in unison. A warning
light in the centre
of
the main instrument panel
also flashes
to
indicate that the device is
operating.
Heated
rear
window
switch
-
optional
extra
The heated rear
window,
when
fitted, is
operated by a rocker
switch
located on the
left hand side
of
the radio panel. The
switch
incorporates a green lamp
which
is illuminated
as
a warning
when
the heating elements are
switched on.
24
Combined
direction
indicator
switch/dip
switch/headlamp
flasher
and
horn-push
A mult!-purpose
switch
located on the right
hand side
of
the steering column.
The
switch
has four positions thus:
Forward Main beam
Back Flasher
Up Left hand indicator
Down
Right hand indicator
Press
the button on the extreme end
of
the
switch
to
operate the horn.
Interior
light
switch
The interior
light
is situated above the interior
rear
view
mirror and has
an
integral switch on
the
body
of
the lamp.
Instrument
and
switch
removal
(see
Figure
20)
Access
to
both main instrument fixings is
achieved from underneath the fascia. Unscrew
the
knurled nuts securing instrument
to
securing
clamps,
withdraw
instrument from the fascia and
disconnect appropriate
leads.
The combined light switch, windscreen wiper
switch, heater switch, fog
lamp switch, spot
lamp switch, hazard warning
switch
and heated
rear
window
switch are all removable after
carefully prising
out
the
body
of
the
switch
from the front
of
the fascia and disconnecting
the appropriate
leads. The ignition
switch
is
removable after unscrewing the locking bezel,
securing switch
to
mounting bracket and
disconnecting the
wiring
leads.
To
remove
multi-switch
1 Remove
two
screws, complete
with
lockwashers, and detach
multi-switch
cover and
retaining
clamp from steering column.
2 Unscrew the
two
multi-switch
fixing
screws and remove
clamp, spacer and
multi-
switch
leaving indicator bush on column.
3 Disconnect
multi-switch
wiring
from
underneath fascia,
release rubber grommet,
and
withdraw
wiring
through ignition switch
mounting bracket.
4
Replace in reverse order.
Bulb ltst (instruments and warning lights)
Main
instrument illumination
Warning
light-
oil
Warning
light
- ignition
Warning
light
- main beam
Warning
light
- indicators
Warning
light-
heated rear screen
switch
Warning
light-
hazard
unit
Battery indicator gauge illumination
Oil
pressure gauge illumination
Voltage
12
12
12
12
12
12
12
12
12
Wattage
3
3
3
3
3
1·2
2
2·2
2·2
Cap
type
Cap less
Cap less
Capless
Cap less
Cap less
Cap less
BA7S
MES
MES
