Reliant SUPER ROBIN - Page 195

Robin 850 Workshop Manual Supplement
Electrics Section T
Distributor
The 43 04 distributor as used on later 750
engines has been replaced on the 850 engine
by a 45 04 distributor ( Figure 1).
The
45 04 distributor incorporates a vacuum
advance unit
which controls ignition advance
according
to engine load by vacuum control
acting directly on the contact breaker plate.
Service
recommendations and distributor .
specification are
as for the 43 04 distributor.
1

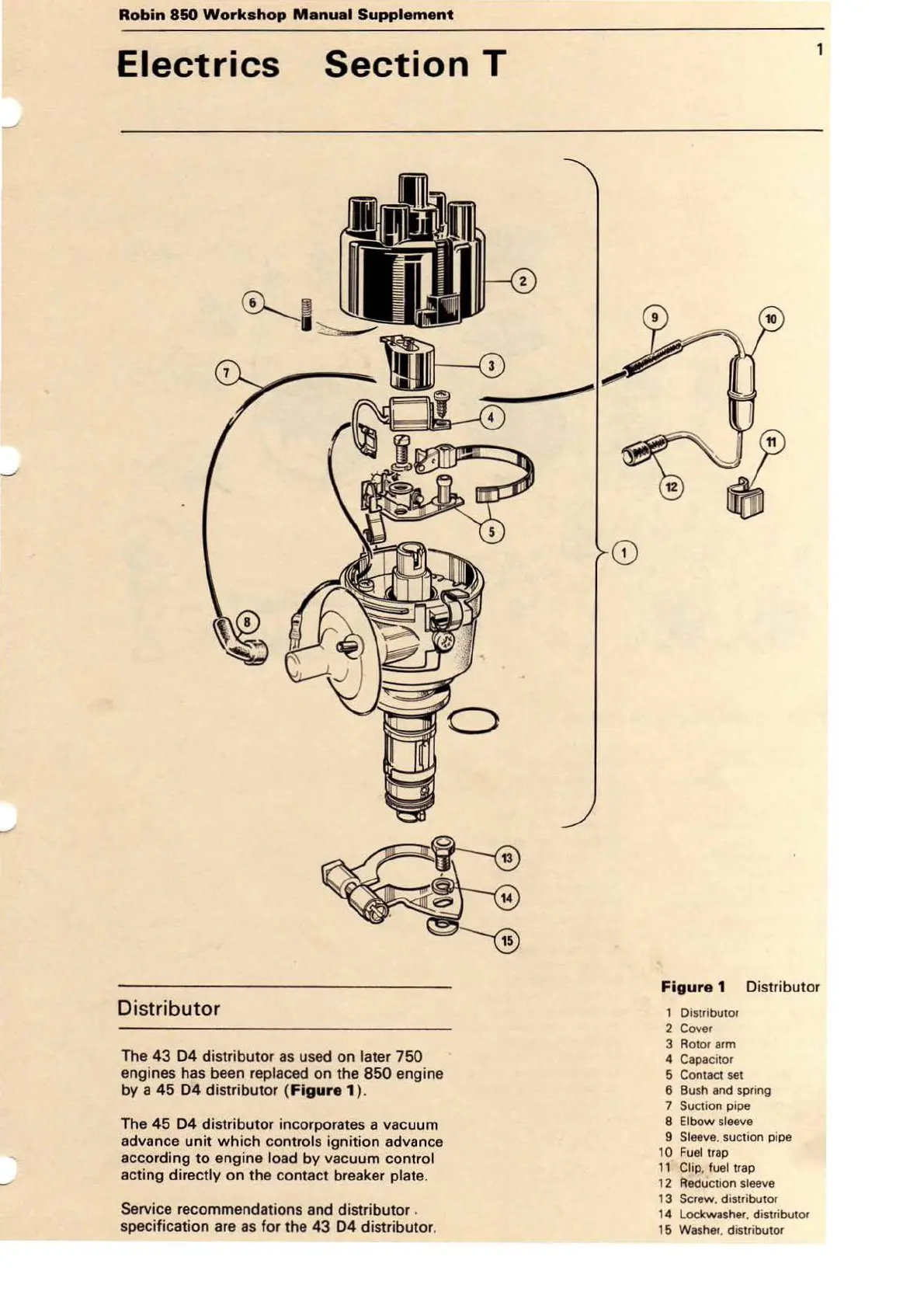

F ig ure 1 Distributor
1 Distributor
2 Cover
3 Rotor
arm
4 Capacitor
6 Contact se t
6 B
ush and spring
7 Suction pipe
8
Elbow sleeve
9 S leeve. suction pipe
10 Fu el trap
11 Clip. fuel trap
1 2
Red uction sleeve
1 3 Screw. distributor
14 Lockwa
sher. distributor
15 Washer. distributor
