Reliant SUPER ROBIN - Page 196

2
Electrics

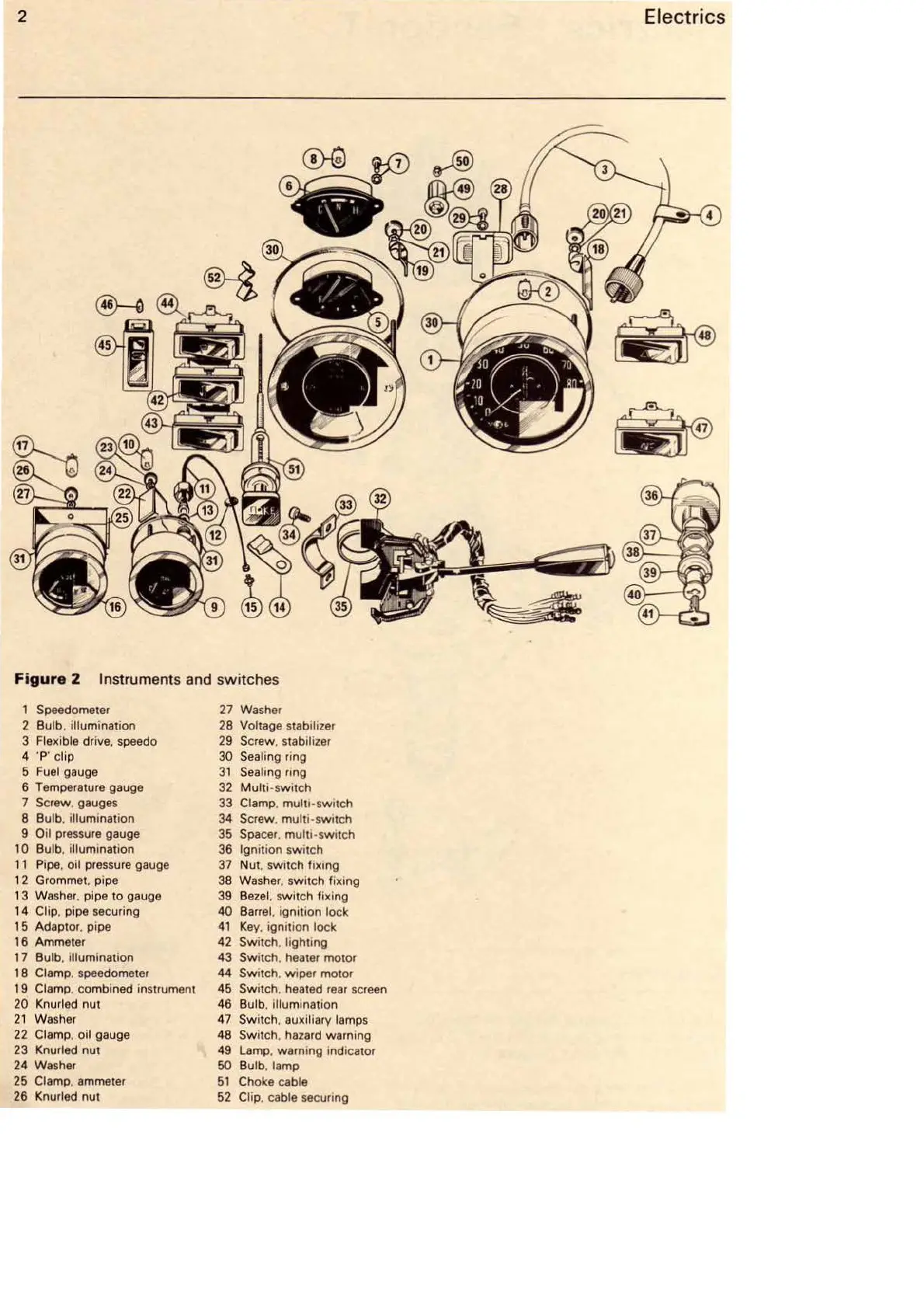

Fi gure 2
Instruments and switches
,
Speedometer 27 Washer
2
Bulb, illumination
28 Voltage stab1hzer
3
Flexible drive. speedo 29 Screw. stabilizer
4
·p· cl ip
30 Sealing nng
5
Fuel gauge
31 Sealing nng
6
Temperature gauge
32 Mu lti-switch
7 Screw. gauges
33
Clamp, multi-SWitCh
8 Bulb. Illumination 34 Screw. mulu- swltch
9
Oil pressure gauge
35 Spacer. multi-s witch
10 Bulb. illu mination
36 Ignition SWitCh
, ,
Pi pe. oil pressure gauge 37
Nut , switch fix1ng
, 2
Grommet. pipe 38 Wash er. switch fix1ng
13 Washer. pipe to gauge 39 Bezel. s wit ch fixing
14 Clip. pipe securing
40 Barrel. ignition lock
1 5 Adaptor. pipe 41 Ke y. ignition lock
16 Ammeter 42 Switch . lighting
17
Bulb. Illumination 43 Sw itch. heater motor
1 8 Clamp, speedometer 44 Sw itch. wiper motor
1 9 Clamp. co mbined instrument 46 Switch. heated rear screen
20 Knurled nut
46 Bulb. illum1nation
21 Washer
47 Switch. auxiliary lamps
22 Clamp. oil gauge 48 Switch. hazard warning
23 Knurled nut
49 Lamp. warning in dicator
24 Washer
60
Bulb, lamp
26 Clamp. ammeter
51 Choke cable
26 Knurled nut
52 Clip, cable secunng
