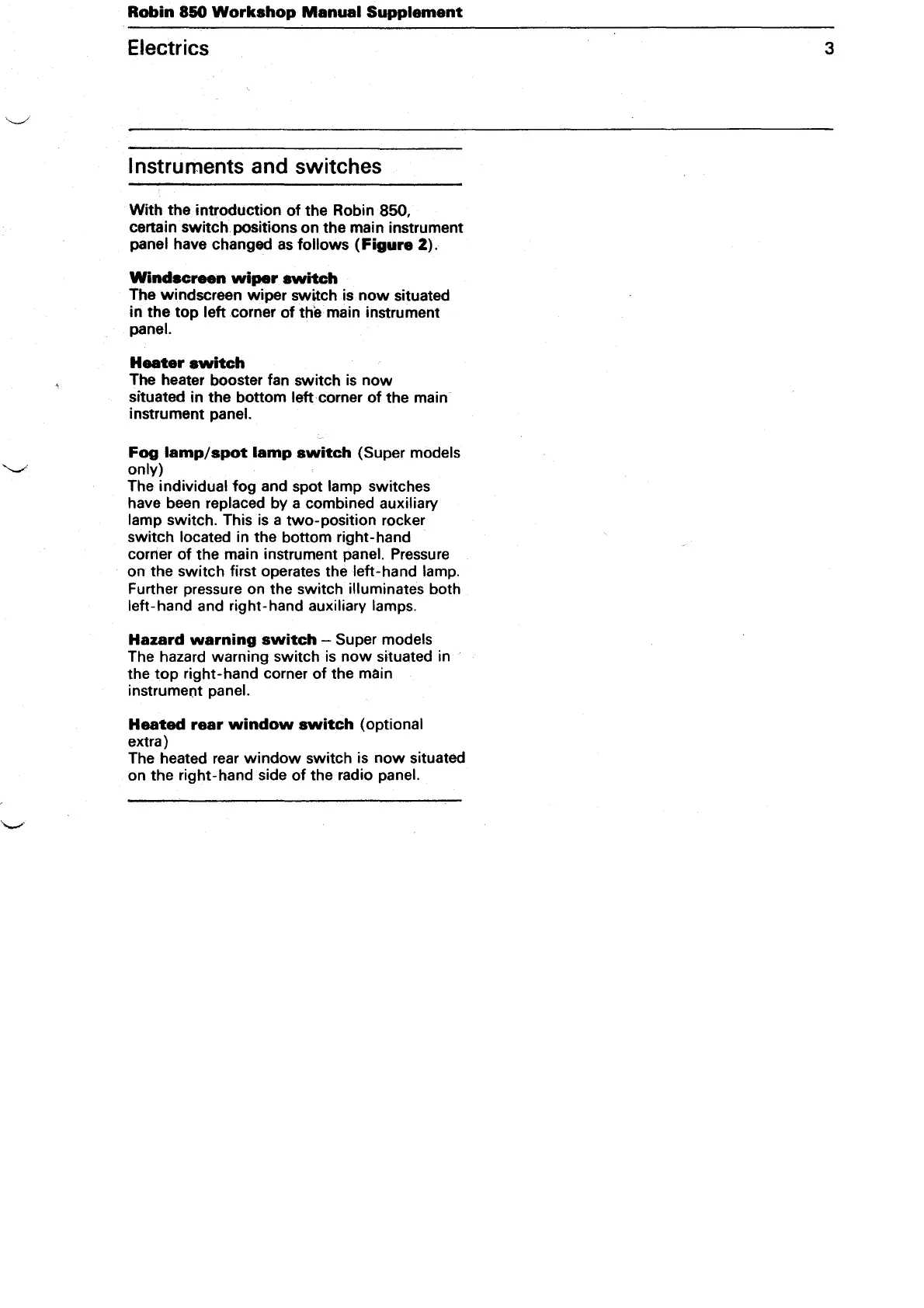

Robin
850
Workshop
Manual
Supplement
Electrics
Instruments and switches
With
the introduction
of
the Robin 850,
certain switch. positions
on
the main instrument
panel have changed
as
follows
(Figure
2).
Windscreen
wiper
switch
The windscreen wiper switch is
now
situated
in
the
top
left corner
of
the main instrument
panel.
Heater
switch
The heater booster fan switch is
now
situated in the bottom left corner
of
the main
instrument
panel.
Fog
lamp/spot
lamp
switch
(Super models
only)
The individual
fog
and spot lamp switches
have been
replaced by a combined auxiliary
lamp
switch. This
is
a two-position rocker
switch
located in the bottom right-hand
corner
of
the main instrument panel. Pressure
on the switch first operates the
left-hand lamp.
Further pressure on the switch illuminates both
left-hand and right-hand auxiliary lamps.
Hazard
warning
switch
- Super models
The hazard warning switch is
now
situated in
the
top
right-hand corner
of
the main
instrument
panel.
Heated
rear
window
switch
(optional
extra)
The heated rear
window
switch is
now
situated
on the right-hand side
of
the radio panel.
3
