Reliant SUPER ROBIN - Page 46

The engine Section F
10
P1018

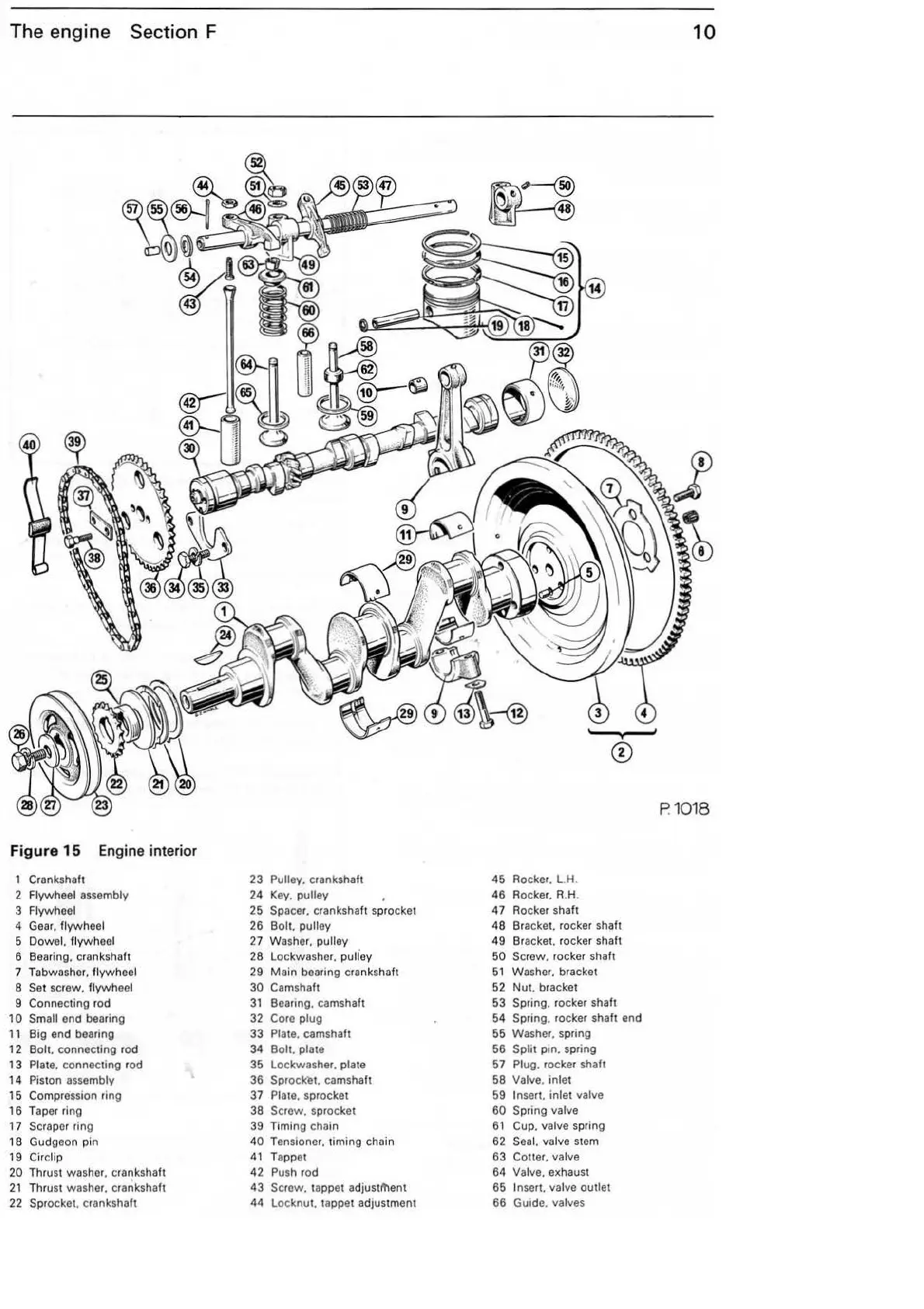

Figure 15 Engine interior
1
Crankshaft 23
Pulley, crankshaft 45 Rocker. LH .
2
Flywheel assembly 24 Key. pulley 46 Rocker. R.H.
3
Flywheel 25 Spacer. crankshaft sprocket 47
Rocker shaft
4 Gear. flywheel 26 Bolt. pulley 48
Bracket. rocker shaft
5
Dowel. flywh ee l 27 Washer. pulley 49 Bracket. rocker shaft
6 Bearin g. crankshaft 28 Lockwasher. puliey 50
Screw. rocker shah
7 Tabwash er. flywheel 29
Main bearing crankshaft 51 Washer. bracket
8 Set screw. flywheel
30
Camshaft 52 Nut. bracket
9 Connecting rod 31 Bearing. camshaft 53 Spring. rocker shaft
1 0 Small end bearing 32 Core plug
54 Spring. rocker shaft end
11
Big end bearing
33
Plate. camshaft 55 Washer. spring
12 Bolt. connecting rod 34 Bolt. plate
56 Split pm. spring
13 Plate. connecting rod 35
Lockwasher. plate 57 Plug. rocker shalt
14 Piston assembly
36
Sprocl<'et. camshaft 58 Valve. inlet
15 Compression ring 37 Plate. sprocket 59
Insert. inlet valve
16 Taper ring 38
Screw. sprocket
60
Spring valve
17 Scraper ring 39 Timing chain 61 Cup. valve spring
18 Gudgeon pin 40 Tensioner. timing chain 62
Seal. valve stem
19 Circlip 41 Tappet
63
Cotter. valve
20 Thrust washer. crankshaft 42 Push rod 64 Valve. exhaust
21 Thrust washer. crankshaft
43 Screw. tappet adjustl'llent
65
Insert. valve outlet
22 Sprocket. crankshaft 44 Locknut. tappet adjustment 66 Gu1de. valves
