Failure
to
replace the shim or shims
will
cause
excessive end
float
of
distributor driveshaft,
resulting in poor meshing
of
the drive gear and
engine noise.
The backlash between camshaft gear and
drives haft gear must
not
exceed 0·0762 mm
(0·003in)
.
F
igure
3 Engin
e,

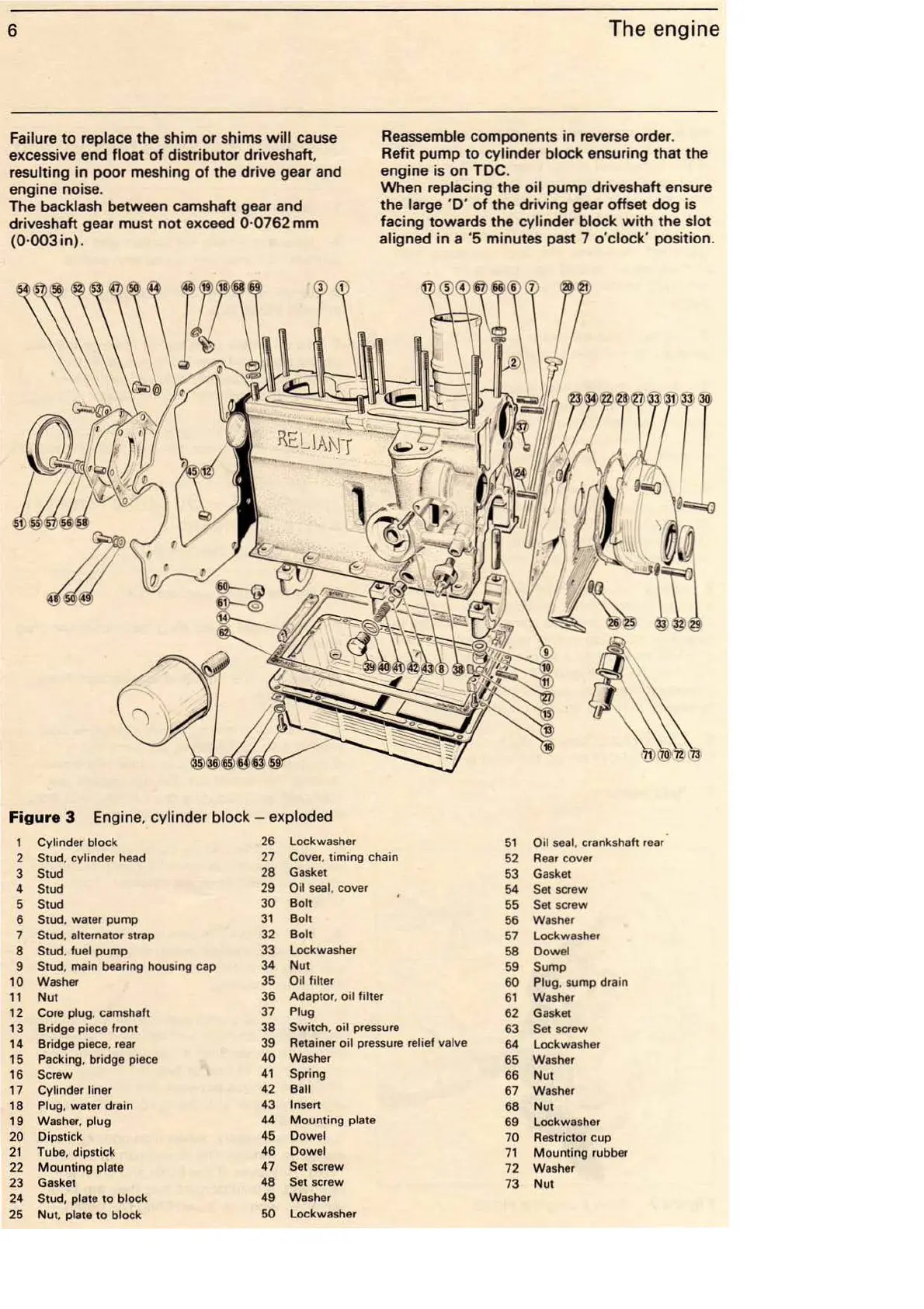

cylinder block - exploded
1 Cylinder block
26
Lock washer
The engine
Reassemble components in reverse order.
Refit pump
to
cylinder block ensuring that the
engine is
on
TDC.
When replacing the oil pump driveshaft ensure
the
large '0 '
of
the
dr
iving gear offset
dog
is
facing towards the cylinder
block
with
the slot
aligned in a
'5
minutes past 7 o'clock' position.
51
Oil seal. crankshaft rear
2 Stud. cylinder head
27
Cover. timing chain
52
Rear
cover
3
Stud
28 Gasket
53
Gasket
4
Stud
29
Oil seal, cover
54
Set screw
5
Stud
30
Bolt
55
Set screw
6 Stud. water pump
31
Bolt
56
Washer
7
Stud, alternator strap 32
Bolt
57
Lockwasher
8
Stud. fuel pump 33
Lockwasher
58
Dowel
9
Stud.
ma
in
bearing housmg cap
34
Nut
59
Sump
10
Washer
35
Oil filter
60
Plug. sump dram
11
Nut
36
Adaptor, oil filter
61
Washer
12
Core plug, camshaft
37 Plug
62
Gasket
13
Bridge piece front 38
Switch.
oil
pressure
63
Set screw
14 Bridge piece, rear
39
Retainer oil pressure relief valve
64
Lock washer
15
Packing, bridge piece
40
Washer
65
Washer
16
Screw
41
Spring
66 Nut
17
Cylinder liner
42 Ball
67
Washer
18
Plug, water drain
43 Insert
68
Nut
19
Washer.
plug
44
Mounting plate
69 Lock washer
20
Dipstick
45 Dowel
70
Restrictor
cup
21
Tube, dipstick
46 Dowel
71
Mounting
rubber
22
Mounting
plate
47
Set scr
ew
72
Washer
23
Gasket
48
Set screw
73 Nut
24 Stud, plate
to
block
49 Washer
25
Nut. plate
to
block
50 Lock washer
