16

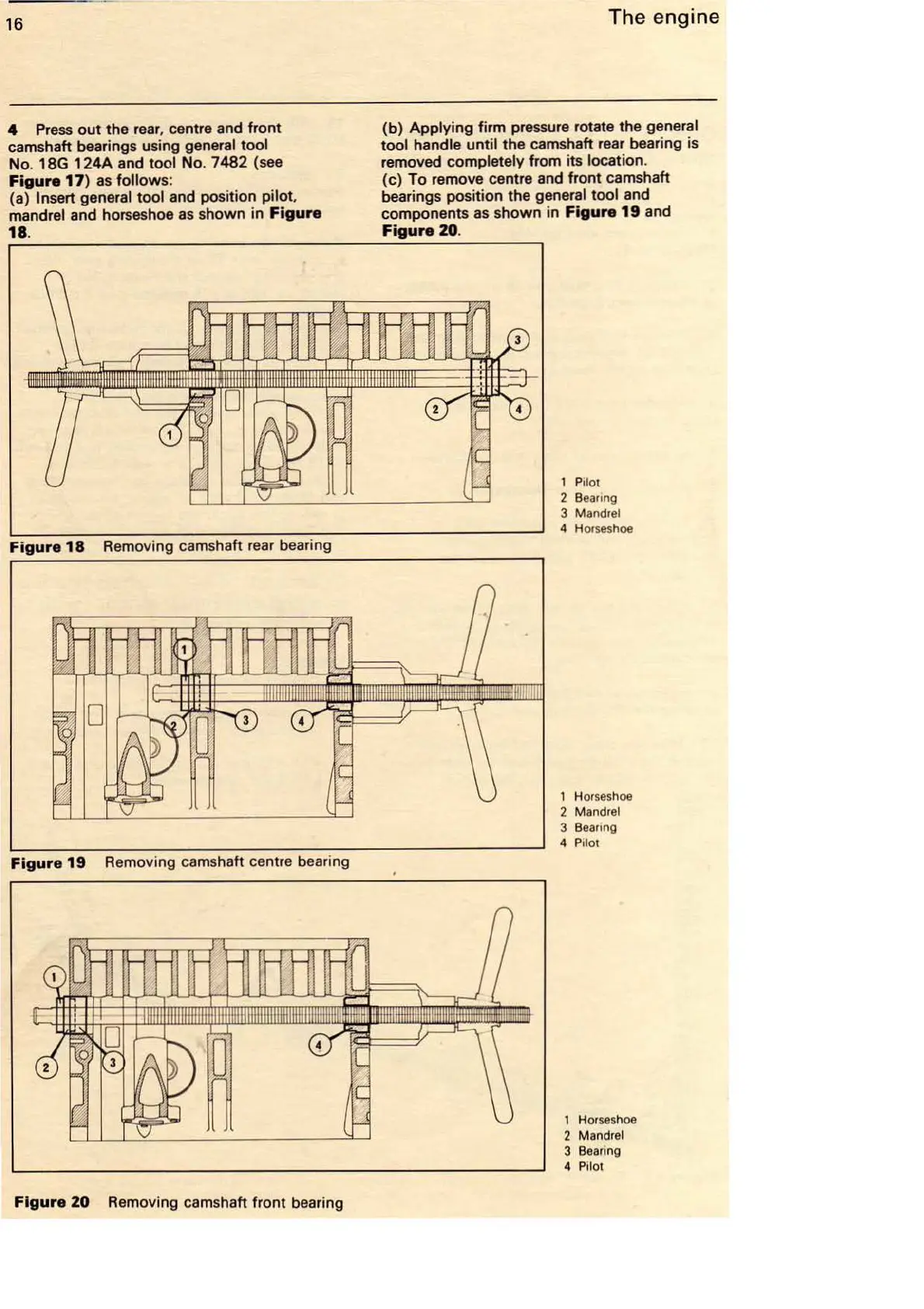

4 Press out the rear, centre and front
camshaft bearings using
general tool
No . 18G 124A and tool No. 7482 (see
Figure 17) as follows :
(a) Insert general tool and position pilot,
mandrel
and horseshoe as shown in Figure
18 .
Figure 18 Removing camshaft rear bearing
Figure 19 Removing cam shaft centre bea ri ng
Figure 20 Removing camshaft front bearing
The engine
(b) Apply ing firm pressure rotate the general
tool handle until
the camshaft rear bearing is
removed
completely from its location.
(c) To remove centre and front camshaft
bearings position the
general tool and
components as shown in
Figure 19 and
Figure 20 .
1 P 1lot
2 Beanng
3 Mandrel
4 Horseshoe
1 Horseshoe
2
Mandrel
3 Beanng
4 P 1l01
1 Horseshoe
2
Mandrel
3 B ea ri ng
4
Pilot
